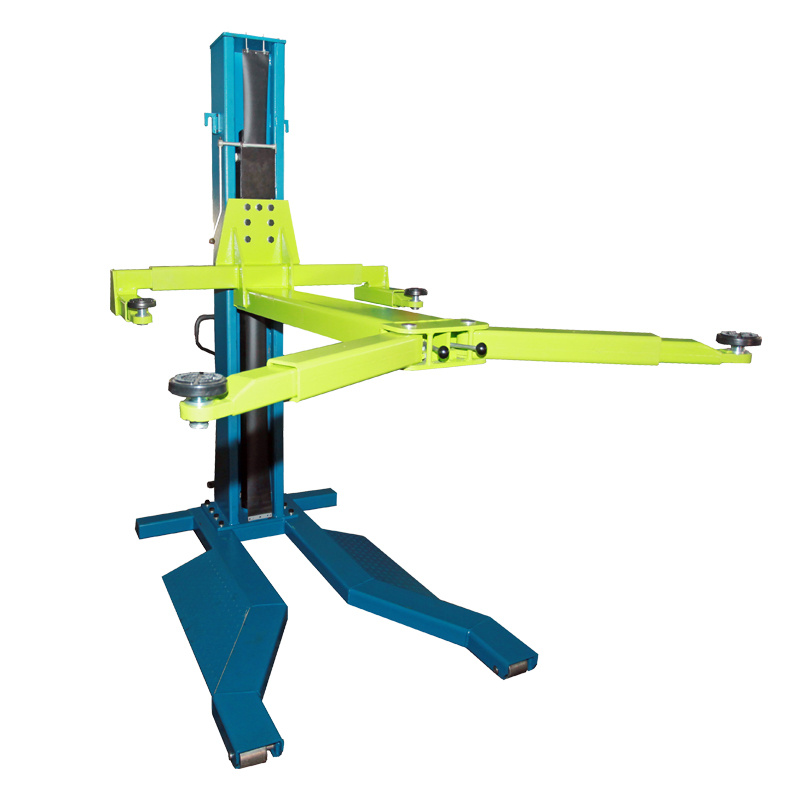

2.5T Capactity Single Post Hydraulic Lift
Feature •Capacity:2500kg
•24V control system make sure the safety operation
•Fabric chain cover protects the cylinder and makes lift in good appearance.
•High strength gear and rack, more stable and safe.
•Lifting arm with screw-up holding pads make it easy and quick to adjust the height, and 3"extension adaptors.
•Two levels of security system, with chain protection cover to prevent to take off it.
•Fixed one column design , adjustable arms
•Mechanical Self-Lock, manual lock release safety device makes more convenient operation.
•Self-lubricating UHMW Polyethylene sliders and bronze bush, maintenance free, trouble free.
•Height limited switch protects the cylinder in long service life.
•Long warranty:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
Specification| Model | JH-M2500 |
| Style | Single Post Lift |
| Lifting Capacity | 2.5T (5,500lbs) |
| Lifting Time | 28 Seconds |
| Lifting Height | 1800mm |
| Minimum Lifting Height | 106mm(4 1/6") |
| Overall Height | 27540mm |
| Overall Width | 1400-1700mm |
| Gross Weight | 713kg(1,572lbs) |
| Motor | 2.0/3.0HP |
| Packing Dimension | 105×130×12cm
275×50.9×37.5cm
108×77.5×179cm |

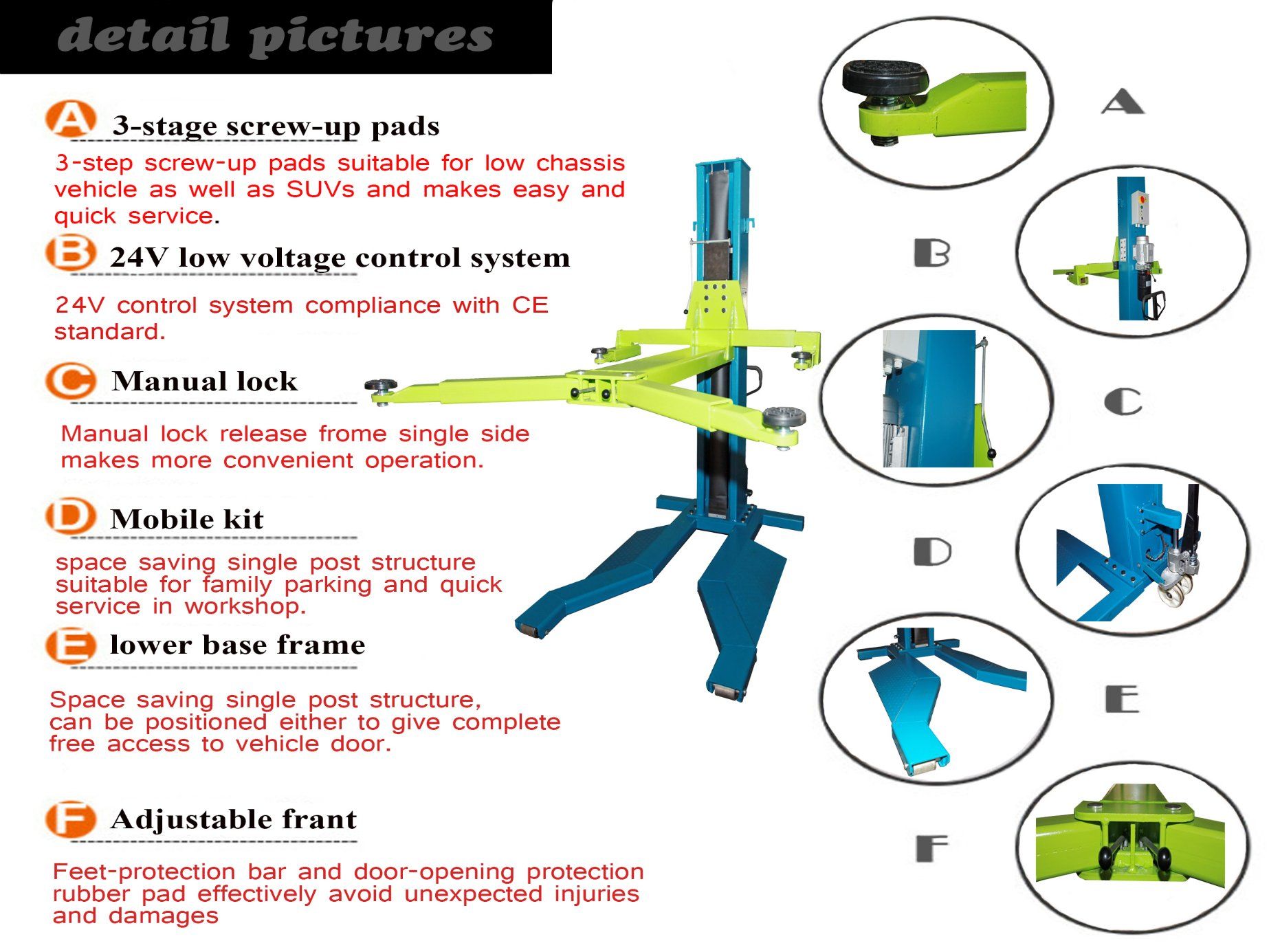

Detail picture

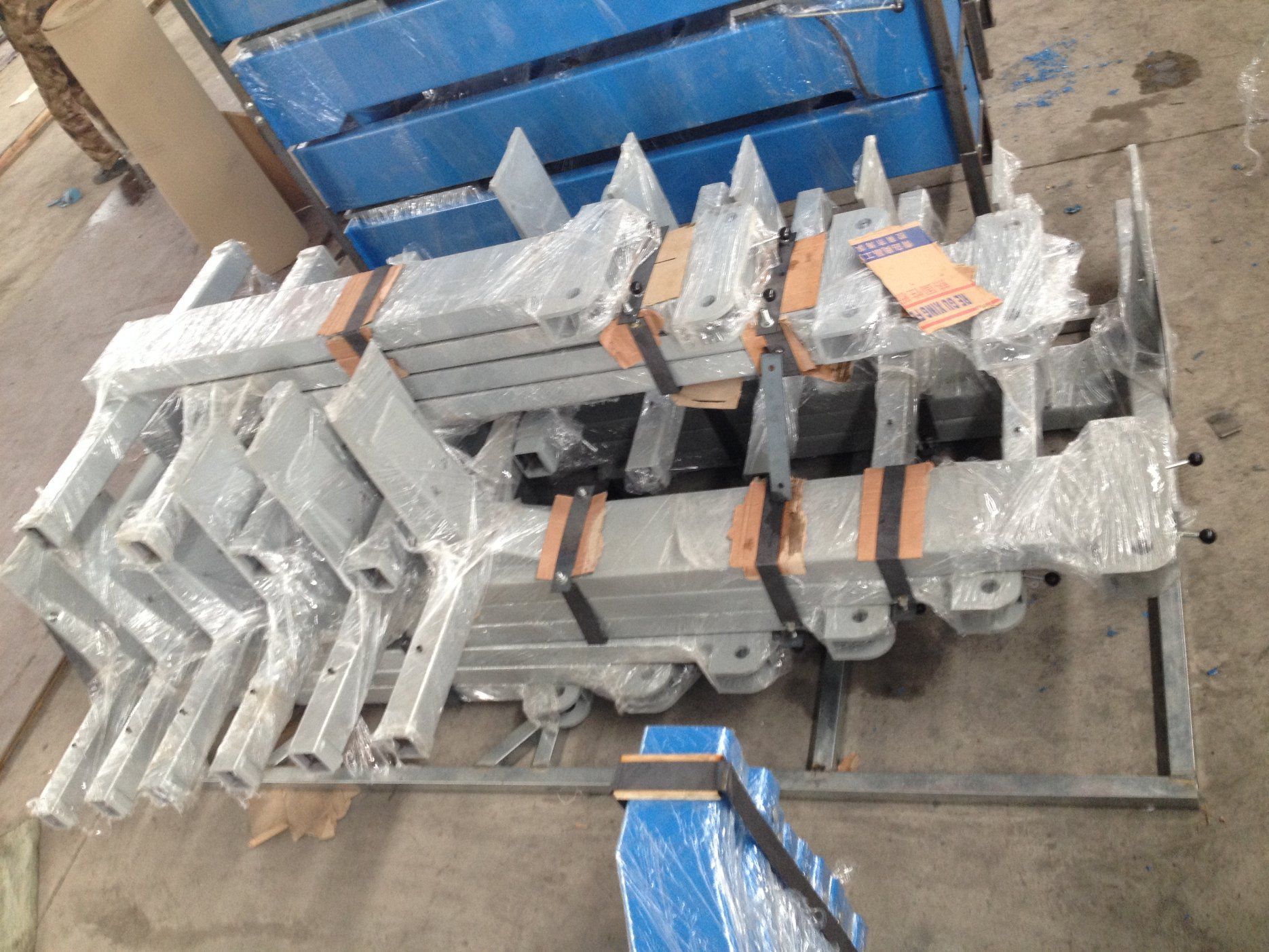

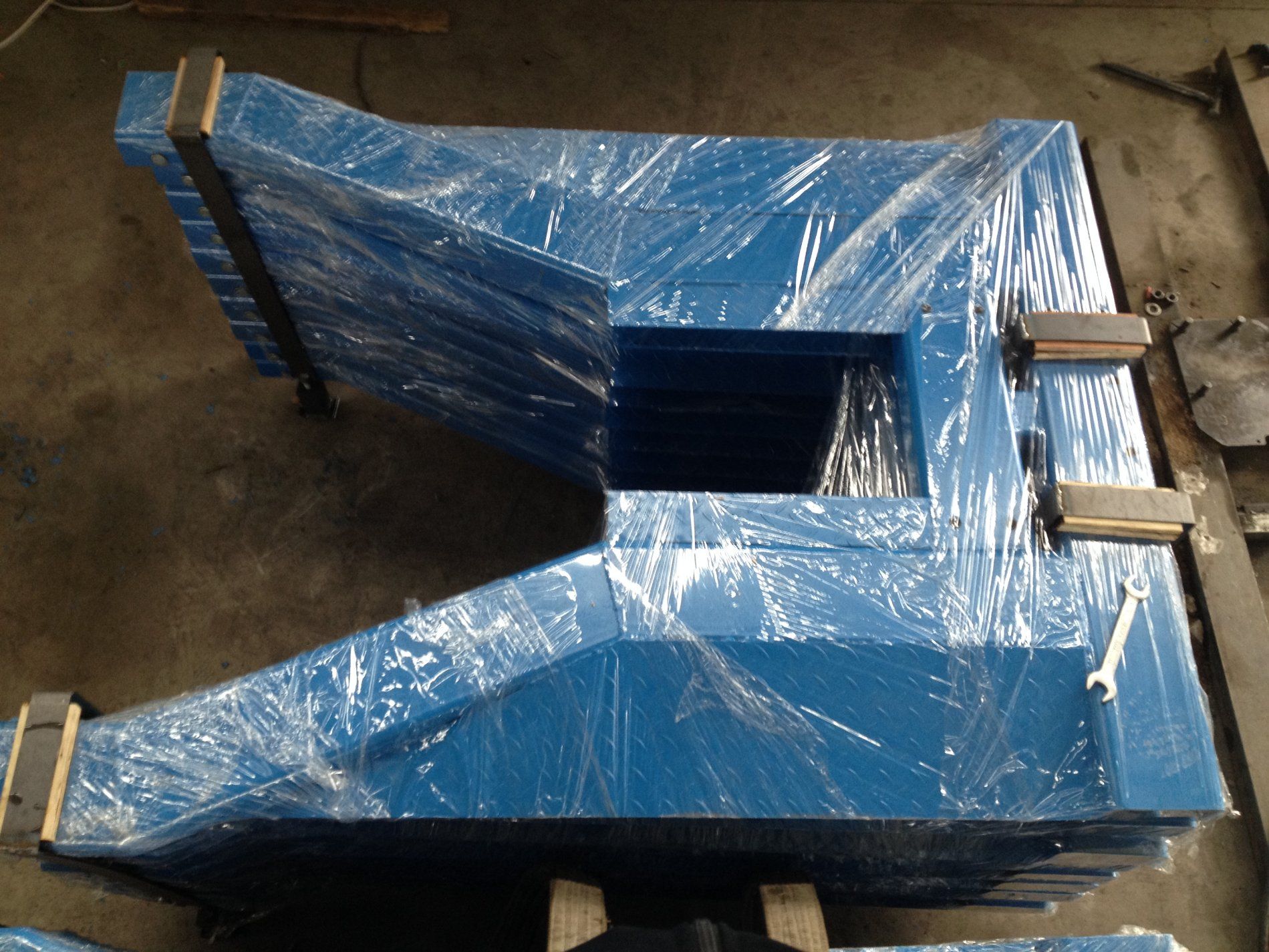

Package picture
About our company
Quality Management
Processes are under a very serious and strict system. Whole manufacturing system certificate and the CE/ETL certification. All of our products are 100% inspected before shipment.WTo guarantee high quality and efficient management, we have passed ISO9001 quality management
FAQ:| Q1 What's the delivery term for making business with us? |
A1 Usually we send the shipments in FOB term.
However, the terms of CIF and C&F are acceptable which depend of clients. |
| Q2 What's the delivery time after placing the order? |
| A2 Usually it takes 3 weeks after receiving your receipt payment.However,it would depend on our production line schedule(the timing clients place order)and the complication of the item. |
| Q3 What's the payment? |
| A3 By T/T,50% is paid in advance, balance before delivery |
Junhv Auto Maintenance Equipment Co., Ltd established in '2013. Has over 5 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.
Junhv strives for providing customers high quality automotive equipment with best price. All the members of Junhv have rich experience and innovative spirit. The products are good reputed among all customers not only for the high quality guarantee but also for the superior services.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
