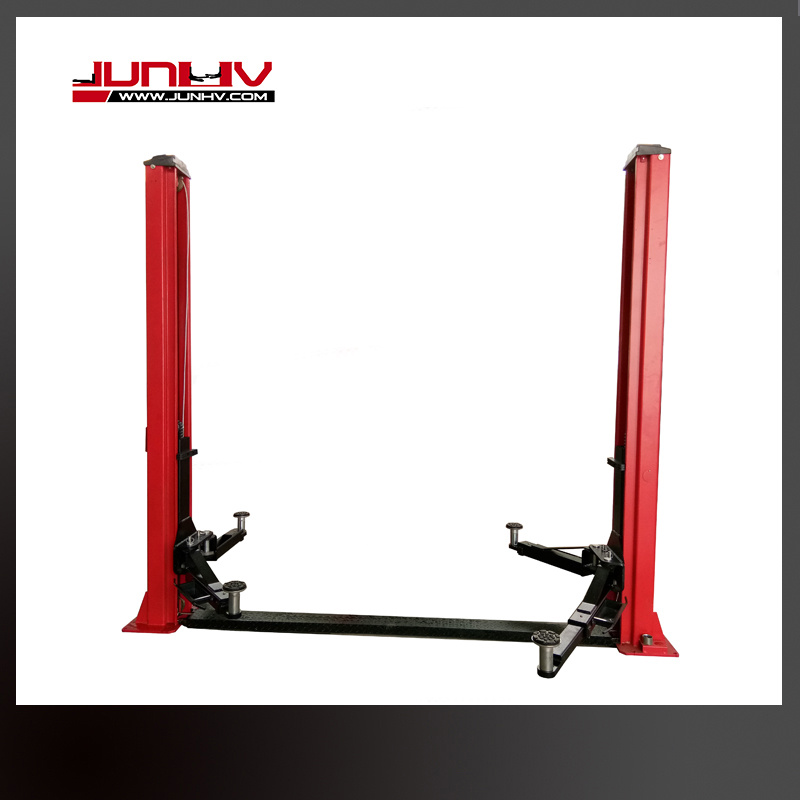

8 Fold Post Floor Plate two post lift

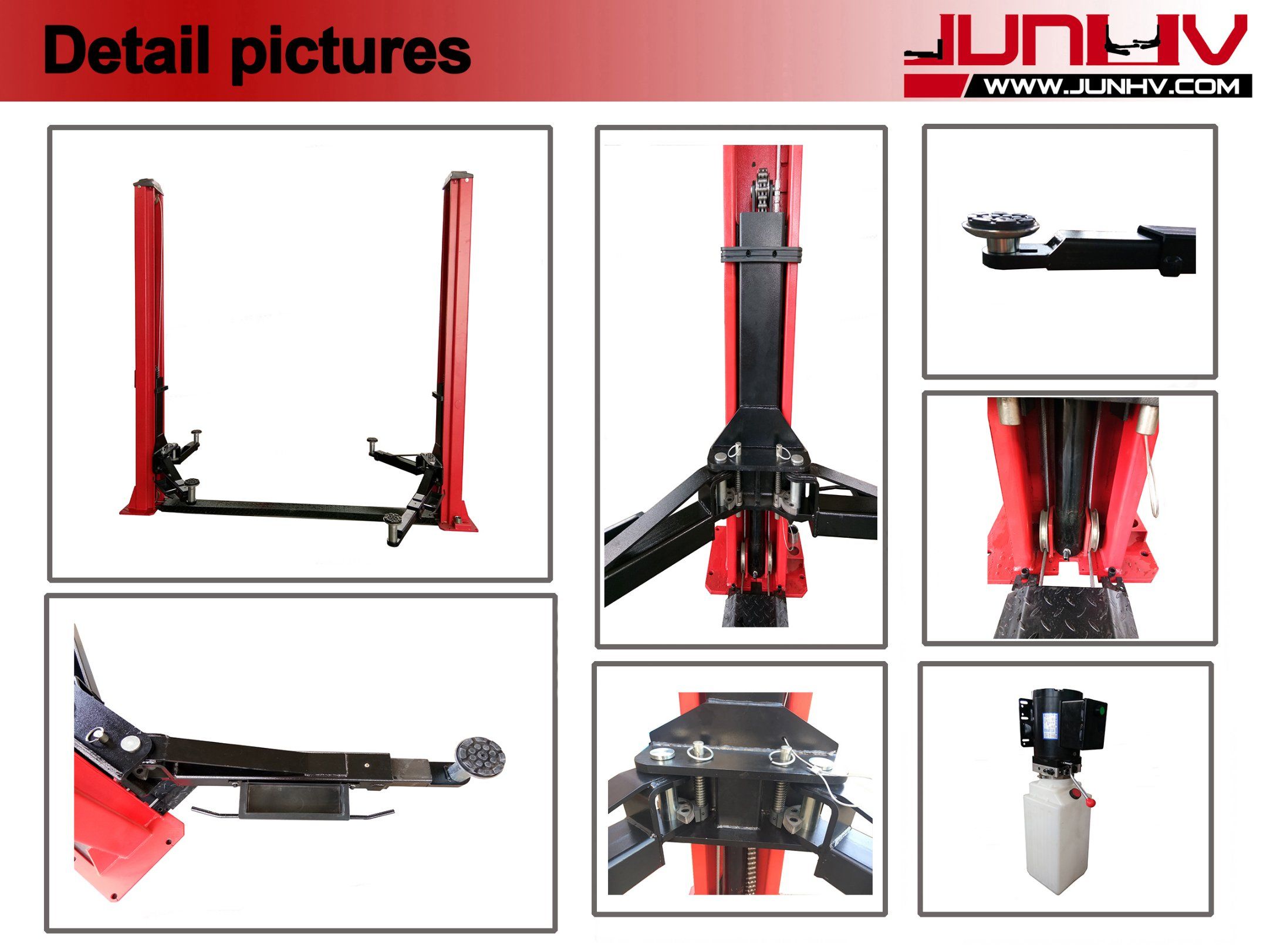

FEATURES:*Clear floor design makes easy working under beneath the vehicle.
*By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
*Hydraulic power unit configuration throttling device, can always djust the rate of decline.Manual locked release
from single sides.
*With 24V limit switch.Asymmetric column allows wider drive through clearance.
*Rubber support pad with spiral adujst the height and in stages adjust the height, optional.
*Rubber support pad door-opening protection.
**Toe protection
*Trucks adapters can optional.Have adopted 115% dynamic and 150%static loading tested.
*CE approved
Overall Dimensions:| Lifting Capacity | 5000kg |
| Lifting Height | 1819mm |
| Minimum Height | 110mm |
| Lifting Time | 40-45s |
| Overall Height | 2884mm |
| Overall Width | 3420mm |
| Width Between Columns | 2400mm |
| Motor Power | 2.2kw |
| Power Supply | 220V/380V/415V |
| short arm | 720mm-1110mm |
| long arm | 770-1240mm |
Similar product:| Model | Lifting capacity | Lifting height | width between posts | Overall height |
| JH-4000F | 4000kgs | 1850mm | 3175mm | 2800mm |
| JH-4000FS | 4000kgs | 1800mm | 2930mm | 2794mm |
| JH-4000FE | 4000kgs | 1850mm | 3175mm | 2800mm |
| JH-5000FS | 5000kgs | 1800mm | 3400mm | 2920mm |

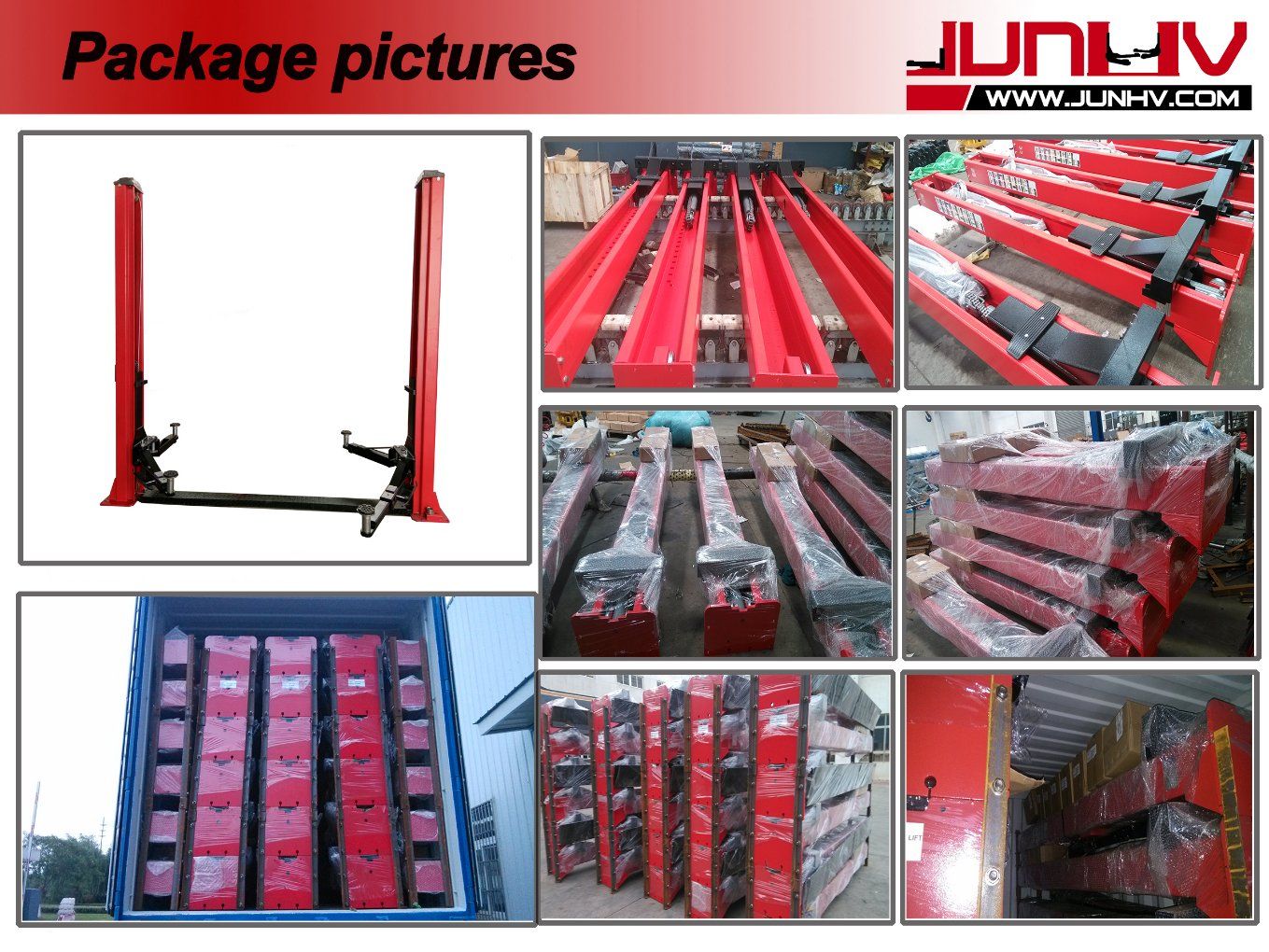

Package information:

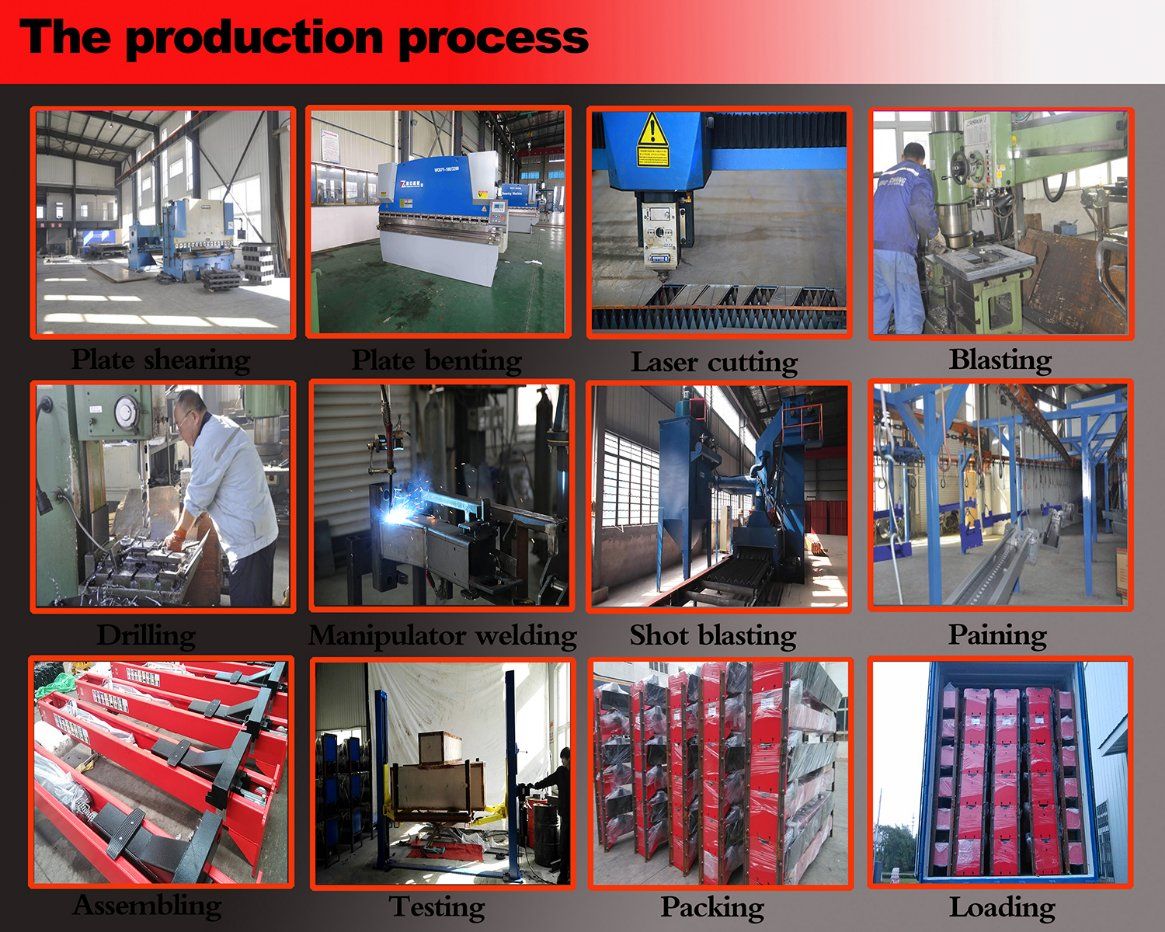

Quality management:To guarantee high quality and efficient management, we have passed ISO9001 quality management system
certificate and the CE certification. All of our products are 100% inspected before shipment.Whole manufacturing
processes are under a very serious and strict system.
Obout our company:Junhv Automobile Inspection Device Co.,Ltd.
strives for providing customers high quality automotive equipment with best price. All the members of JUNHV
have rich experience and innovative spirit. The products are good reputed among all customers not only for the
high quality guarantee but also for the superior services.
We have established long standing and stable business relationships with many renowned company,exported top
Asia, Europe, America and Austral.
Main products includding two post lifts, four post lifts, full-rise scissor lifts, mid-rise scissor lifts, tire changers,
wheel balancers, and shop presses, hydraulic jacks, cranes and other related products.
| FAQ |
| Q1 | What's the delivery term for making business with us? |
| A | Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients. |
| Q2 | What's the delivery time after placing the order? |
| A | Usually it takes 3 weeks after receving your receipt payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item. |
| Q3 | What's the payment? |
| A | By T/T, 50% is paid in advance; balance befor delivery |
| Q4 | What's the min order? |
| A | 1 set. |
| Q5 | What's the warranty? |
| A | 1years for free |
Junhv Auto Maintenance Equipment Co., Ltd established in '2013. Has over 5 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.
Junhv strives for providing customers high quality automotive equipment with best price. All the members of Junhv have rich experience and innovative spirit. The products are good reputed among all customers not only for the high quality guarantee but also for the superior services.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
