| Prod Model: |
DPFS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Sic |
| Cell: |
100-400cpsi |
| Size: |
143.8*152.4mm, 286X305mm, 190*200mm etc |
| Application: |
as Catalyst Used in Diesel Engine |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
| Discharge Standard: |
Euro IV |
| Body Material: |
Ceramic |
Product Description

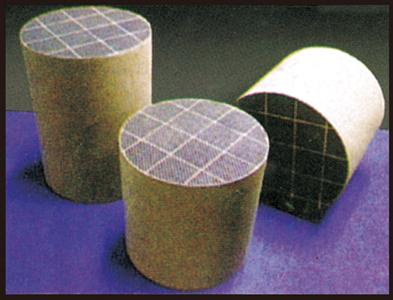

Silicon carbide diesel particulate filter cores also look like catalytic converter cores that have had alternate channels plugged - again the plugs force the exhaust gas flow through the wall and the particulate collects on the inlet face.
*Excellent capturing performance
*Small exhaust back pressure
*Nice corrosion resistance to oil, ash, and engine scouring
*Excellent heat resistance and thermal shock resistance.
*Lower thermal expansion
A diesel particulate filter removes particulate matter from diesel exhaust by physical filtration. The common type is a ceramic (cordierite or silicon carbide) honeycomb substrate. The structure like an emissions catalyst substrate with the channels blocked at alternate ends. The exhaust gasses must therefore flow through the walls between the channels and the particulate matter is deposited on the walls.
Other filter types are available, using sintered metal plates, foamed metal structures, fibre mats and other materials as the filtration medium.
|
Property (uncatalyzed) |
100/17 |
200/12 |
|
Cell density |
cpsi |
100 |
200 |
|
cpscm |
15.5 |
31.0 |
|
Wall thickness |
inch |
0.017 |
0.012 |
|
mm |
0.432 |
0.305 |
|
Open frontal area (OFA), % |
34.5 |
34.5 |
|
Geometric surface area (GSA) |
Inch2 |
33.3 |
47.0 |
|
m2/l |
1.31 |
1.85 |
|
Hydraulic diameter |
Inch |
0.083 |
0.059 |
|
mm |
2.11 |
1.49 |
|
Modulus of rupture (psi/cpscm) |
350 |
300 |
|
Porosity (%) |
48 |
48 |
Coefficient of thermal expansion
102 cm/cm/ (20-800) --maximum average |
5 |
5 |
|
Mean pore size (micron) |
13 |
13 |
|
Melting temperature (Degree C) |
1460 |
1460 |
|
Size(Diameter × length) |
Filter volume(Litre) |
Cell density |
Shape |
|
mm |
Inches |
|
Φ70×152 |
Dia.2.76×6 |
0.58 |
100/200CPSI |
Round |
|
Φ144×152 |
Dia.5.66×6 |
2.48 |
100/200CPSI |
Round |
|
Φ144×205 |
Dia.5.66×8 |
3.34 |
100/200CPSI |
Round |
|
Φ144×254 |
Dia.5.66×10 |
4.13 |
100/200CPSI |
Round |
|
Φ144×305 |
Dia.5.66×12 |
4.96 |
100/200CPSI |
Round |
|
Φ170×254 |
Dia.6.69×10 |
5.76 |
100/200CPSI |
Round |
|
Φ190×200 |
Dia.7.48×7.87 |
5.67 |
100/200CPSI |
Round |
|
Φ228×152 |
Dia.8.97×6 |
6.20 |
100/200CPSI |
Round |
|
Φ228×254 |
Dia.8.97×10 |
10.37 |
100/200CPSI |
Round |
|
Φ228×305 |
Dia.8.97×12 |
12.45 |
100/200CPSI |
Round |
|
Φ240×240 |
Dia.9.45×9.45 |
10.85 |
100/200CPSI |
Round |
|
Φ240×254 |
Dia.9.45×10 |
11.48 |
100/200CPSI |
Round |
|
Φ240×305 |
Dia.9.45×12 |
13.79 |
100/200CPSI |
Round |
|
Φ260×305 |
Dia.10.23×12 |
16.19 |
100/200CPSI |
Round |
|
Φ270×305 |
Dia.10.63×12 |
17.45 |
100/200CPSI |
Round |
|
Φ286×305 |
Dia.11.26×12 |
19.58 |
100/200CPSI |
Round |
|
(98×195)×154 |
(3.8×7.7)×6 |
2.60 |
100/200CPSI |
Race track |
|
(98×195)×205 |
(3.8×7.7)×8 |
3.50 |
100/200CPSI |
Race track |
|
(98×195)×254 |
(3.8×7.7)×10 |
4.30 |
100/200CPSI |
Race track |
|
(98×195)×305 |
(3.8×7.7)×12 |
5.20 |
100/200CPSI |
Race track |
