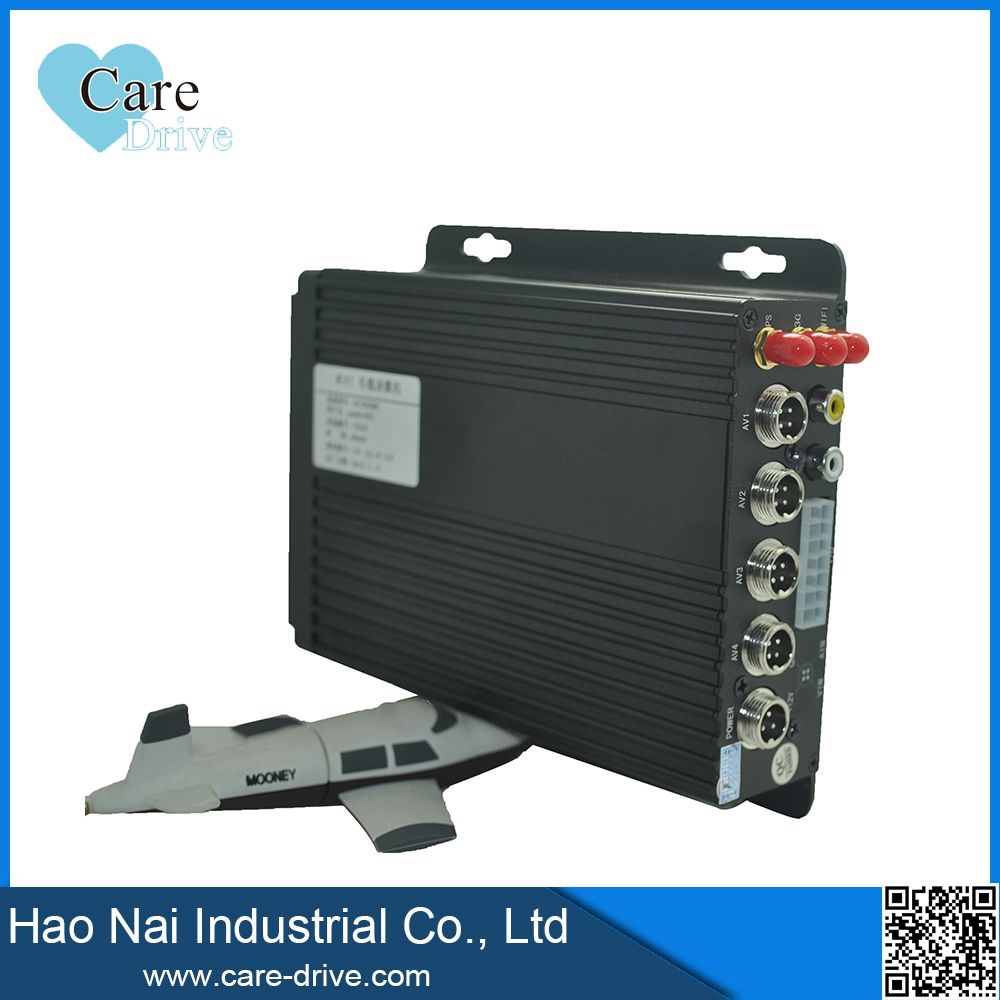

SD Card Mobile DVR 4 Channel real time MDVR Support 3G,4G,GPS,Wifi
Brief Introduction of 4 channels mobile DVR:
Mobile DVR (with 3G, GPS, Wifi) operated with CMS (central monitoring software) is used to realize fleet management online and achieve a full range of vehicles and drivers monitoring function, such as real-time video and audio monitoring, GPS positioning, vehicle tracking, voice intercom, vehicle alarms, driving route record, etc.
Feauters of 4 channels mobile DVR:
1. Single channel or 4 channels display
2. 4-CH aviation connector audio and video input, 1-CH RCA connector video output, 1-CH RCA connector audio output
3. H.264 HD compression format, CIF/HD1/D1/960H/720P for option
4. built-in G-Sensor
5. supports 2 SD cards, max.128G/card
6. Supports 3G remotely transmit videos
7. Supports 3G remotely monitoring (Unicom/ Telecom, WCDMA, CDMA2000, TD-SCDMA)
8. Supports real-time remotely monitoring via computer and mobile phone (Android and IOS)
9. Built-in GPS module, supports global GPS positioning, can record vehicle tracks and speed
10. Replay on PC Client, show vehicle tracks and speed on map
11. Supports PC replay analysis and local video replay
12. Supports to upgrade via SD card
13. Power input voltage: 8-36V, output voltage: 12V/2A
14. Working temperature: -20ºC to 60ºC
15. Supports two way communication
16. Can set video delay time from 15 to 300 seconds
17. Automatic reset makes the device never crash. Video recording will be quickly restored after the system is powered on again. Video clips will not be affected under instantaneous power off situation
18. Shutdown time-lapse video recording function ensures to save important video clips
19. Supports 3G/4G, wifi, GPS
Specification of 4 channels mobile DVR:
Project | Specification | Feature |
System | Host processor | Hi3512 |
| Operate System | Linux |
| Language | Chinese/English |
| User interface | GUI ,support USB mouse |
| Password | User password, administrator password two management |
Video | Video Standard | PAL(625TVL,50F/S);NTSC(525TVL,60F/S) |
| Image Coding | H.264(Main Profile) |
| Monitoring quality | D1 |
| Video resolution | CIF/D1 |
| Coding | 4CH real time |
| Decoding | 2CH D1 real time |
| Video Input | 4 Channel Video Input |
| Video Output | 2 Channel Video Output |
| Display | Support 1/4; support alarm screen automatically switches |
Audio | Audio compression | ADPCM |
| Audio Input | 4 Channel Audio Input |
| Audio Output | 1 Channel RCA Audio Output |
| Recording mode | Sound and video recording Synchronously |
| Voice intercom | Support |
Project | Range | Feature |
Power Input | 8-36V | DC+8V~+36V,if lower than 8V,or higher than 36V,the MDVR will be shutdown, into protect status |
Power Output | 12V | Output :12V(+/-0.2V),max 2A. |
Video Input(Ω) | 75Ω | 75Ω/CH. |
Video Output | 2Vp-p | One 2Vp-p CVBS One 75Ω |
I/O | 0-4V | Low voltage alarm |
| >4V | High voltage alarm |
SD Card Slot | SD Card | 1.Support SD Card up to 128G 2.Support upgrade. |
Temperature | -40ºC-80ºC | -40ºC-80ºC with good environm |
Introduction of 4 channels mobile DVR CMSV6:
Mobile DVR (with 3G, GPS, Wifi) operated with CMS (central monitoring software) is used to realize fleet management online and achieve a full range of vehicles and drivers monitoring function, such as real-time video and audio monitoring, GPS positioning, vehicle tracking, voice intercom, vehicle alarms, driving route record, etc.
Packaging:
1pc packed in one color box, 20sets packed in one 7-ply carton box.
Shipping:
DHL, Fedex, UPS, TNT, EMS, SEA
DHL: 3-4 working days to arrive
Other express: 5-7 working days to arrive
EMS: 2-4 weeks to arrive
By sea: 4-6 weeks to arrive
Accepted Payment Method:
30% deposit in advance, 70% balance before shipping
T/T: generally for bulk orders
Paypal and Western Union: for sample orders
L/C: for order amount over US$50,000 only
Brief Introduction:
Since established in 2000, Hao Nai Industrial Co., Ltd devotes to guide the vehicle industry revolution through computer vision technology. Hao Nai's sophisticated technology brings advanced and safe driving experience to drivers, and provides the world leading vehicle safety management solution for commercial fleet. Hao Nai continues to draw into talents and innovative technology, we cooperate with Beijing Tsinghua University and South China University of Technology and established the vehicle active safety R&D center. Now Hao Nai owns independent R&D center and experienced R&D team, the core technicians have years of development experience on vehicle intelligent electronics and visual technology. In accordance with the demands of the marketplace, Hao Nai have independently developed multiple versions of driver fatigue monitor and anti-collision warning system, which are compatible with different types of vehicles. The well-know brand "CareDrive" under Hao Nai has been a high-end brands in worldwide road safety field. After years of effort, CareDrive products have been successfully sold to 150 countries, we have won the trust and support from many well-known customers in different professional field of the world.
Certificates:SGS ,CE ,EMC
FAQ
Failed to get vehicle informations or device parameters.
Reasons:
Usually, there are three reasons as blow:
1. the device is offline suddently.
2. Poor network communication speed.
3. Network module is not installed in the device.
Solutions:
1. CMSV6 does not get the device offline message immediately.
2. Close the Parameter dialog and open it again.
3. Fix the network module in the device.
The channel video window is black.
Reasons:
1. This channel does not have a camera.
2. The camera is broken.
Solutions:
1. Make sure the channel has a camera.
2. Fix the camera.
