| Prod Model: |
SJG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Platform Size: |
5500*2500mm |
| Load Capacity: |
3000kg |
| Lifting Height: |
3000mm |
| Drive System: |
Hydraulic |
| Color: |
White/Yellow/Optional |
| Control Mode: |
Button/Remote Control |
| Weight: |
2000kg |
| Close Height: |
550mm |
| Speed: |
80-100mm/S/Adjustable |
| Power Output: |
5.5kw/Optional |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
GS |
| Design: |
Scissor |
| Brand: |
Moral |
Product Description
Scissor Design Hydraulic Auto Parking Lift
Product Advantages:1.The hydraulic cylinders and hose are armed with explosion-proof lock valve which gives further assurance of cars.Once hydraulic pipe breaks, the work platform will be down slowly.
2.The handrail is equipped to guarantee safety of car.
3. Auto lifter is installed with 4 guide rails to ensure its safety and steady.
4. the limit switch system equipped on is to ensure lifts stop at accurate position.
5.When goods on platform are overweight,the lift will not work with overload protection facility.
6. Electric control system adopt elevator system from Japan Mitsubishi to ensure safety enough.Parameter:1. load weight: 3000kg/customize
2. table size: 5.5m x 2.5m/customize
3. travel height: 5m/customize
4. Elevator controls system
5. structure: high-strength Mn steelfeatures:1)used for lifting all kinds of cars
2)great loading capacity
3)hydraulic system increase safety
4)steady working:| Model | SJG |
| Load capacity | 3000KG /Customize |
| Platform size | 5500*2500MM /Customize |
| Lifting height | 3000MM /Customize |
| speed | 100mm/s |
| power | 5.5kw |
| power supply | AC 220V/380V 50HZ/60HZ /Customize |
| weight | 2950KG |

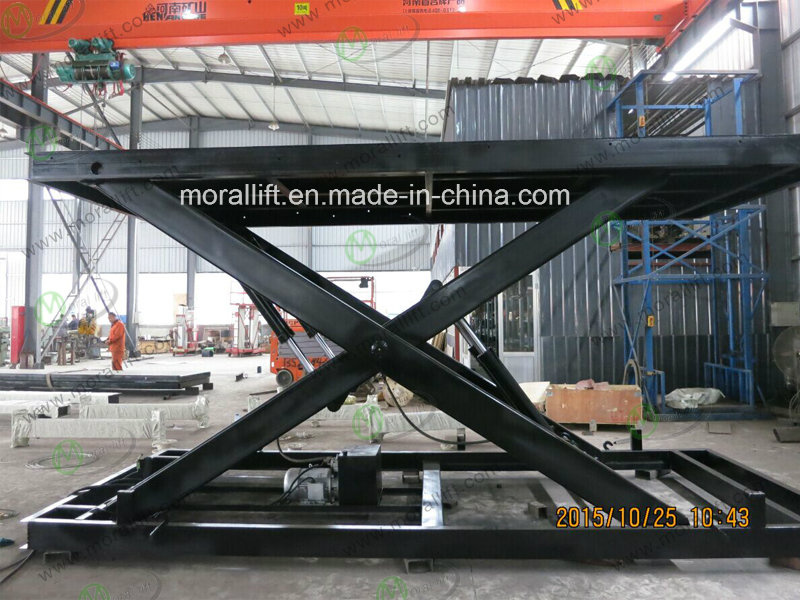

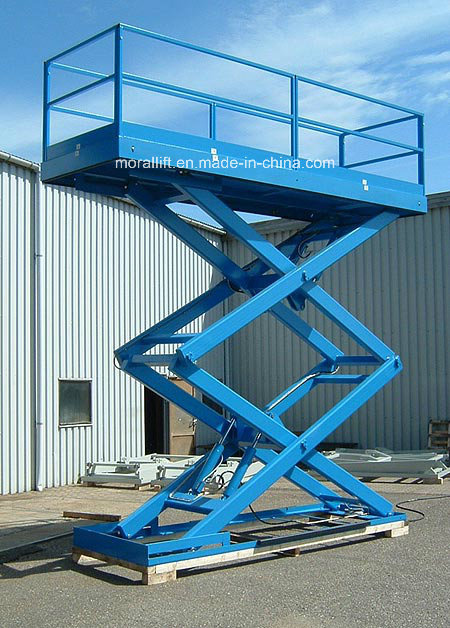

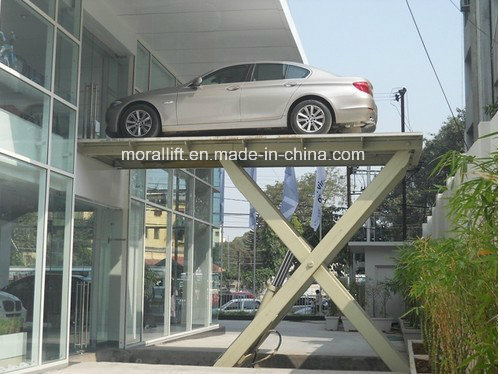

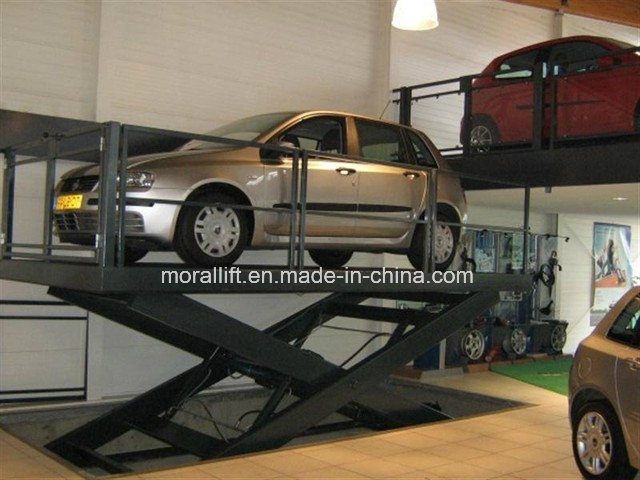

Photos:
Friendship tips:hydraulic scissor lift prices is caculated according to your load capacity and lift height,prices above is just for reference.
so when you send a inquiry, please kindly send the below information to us:
1. Stationary or Mobile type?
2. Load capacity:____kg
3. Lift height:_____m
4. Table size:__(L)×__(W) m
After get all the information, our engineer will design a suitable lift for you soon. And you will get a quotation include:
1. The technical details,
2. Price list and delivery time
3. Pictures for your reference
We surely guarantee the quality,delivery,safty and full course service of every product that we produce.FAQ:1. MOQ?-1 set
2. Delievery time?-usually within 15-20 working days upon receipt of payment.
3. Trade term? ( FOB/CFR/CIF to your nearest seaport)
4. Working Height?-according to your need
5. Platform Size?-according to your need
6. load capacity?-according to your need
7 Demand power source?-electric or battery, per your need
8. OEM?-acceptedWelcome to your inquiry,we can customize for your every inquiry,thanks!
