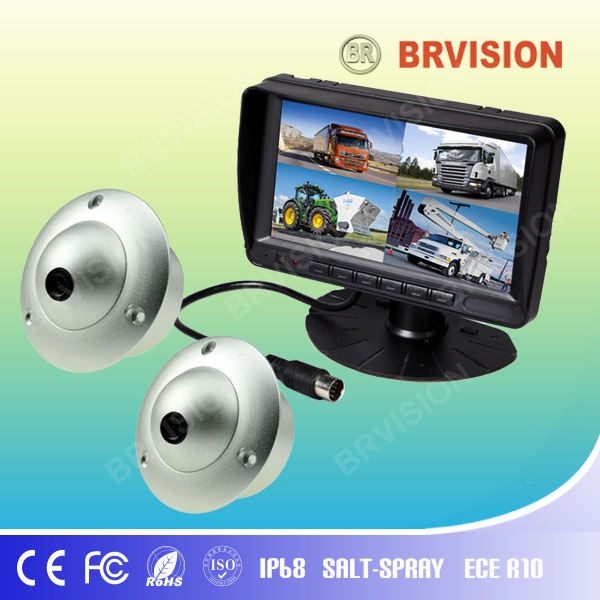

Rear View System for Heavy Duty

Rear View System for Heavy Duty
Price: US $ 68/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal

. 7" Panel TFT LCD monitor
.2 trigger cable
. Brightness:300cd/m2
. With remote controller. Audio function
. Single View/Split view/Quad view selectable
. NTSC System, MIRROR/NORMAL image optional
. Automatically turn on when the reversing gear is engaged
. With high-low voltage protection and short circuit protection
. Intelligent recognition to show camera video
- Auto switch to rear, left, right, or front side camera viewing.
- Automatic backlighting for buttons.
- Touch buttons



'Auto Shutter Rear View Camera
- Image Device: 1/3" CCD Sensor
- TV System:  NTSC/PAL
- IP Rating: IP68  Lens Angle (Deg.): 140°
- Color: Black

1)Screen Size:7 Inch TFT-LCD(16:9/4:3)
2)System: PAL/NTSC
3)Power supply: DC 12V
4)Resolution: 480(W)xRGBx234(H) (Digital panel screen 800*480 is available)

Aluminum Shell Backup Waterproof Camera
Image Type: 1/3 Inch Color CCD
Horizontal Resolution:720TV Lines
NTSC:976(H)×494(V) PAL:976(H)x582(V)
Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark)
Free viewing angle: 130°
Waterproof:  100% Waterproof IP69K Rating
Shockproof: 10G
Video Output:1.0Vp-p75Ω
Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional)
Power supply:DC12V (from Reversing Monitor)
Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting)
Weight Approx: 179g
Prod Model: BR-TM7001L-RVC15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lens Angle: 140 Degree
Type: Rearview System
Night Vision: Yes
IP: 68
Waterproof: Yes
Interface: RCA
Definition: 420TVL
Chip: CCD
Waterproof Grade: IP68
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
