Professional Paint Spray Booth Sale
| Price: |
US $ 8000-8500/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |

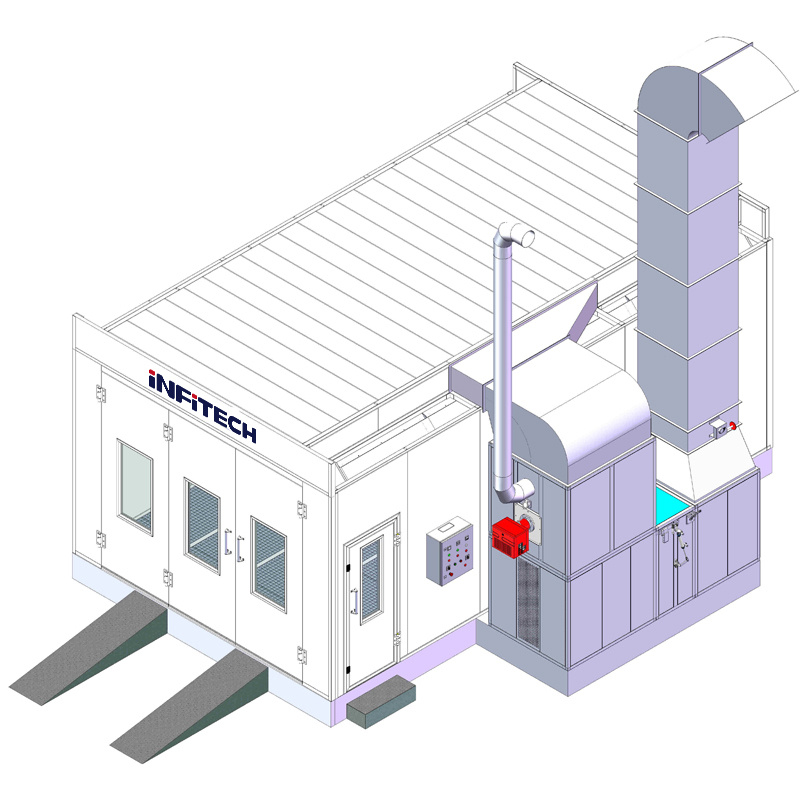

YFT-F501 Spray Paint Booth
Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter: | Airflow | Internal Size(mm) | External Size(mm) | Heating Modes | Inlet/Exhaust fan | LED Ceiling Lights | LED Side lights | Empty Loaded
Air Speed |
| Full downdraft | 6900X4000X2800 | 7010x5570x3610 | Oil/Gas | 2X5.5KW | 8 set/4X24W | 6 set/2X24W | 0.18 m/s |
Airflow
1.Air downdraft for sprayAir downdraft for spray.
2.Big impeller fan ,sparkproof design (2X5.5W DOMESTIC ).

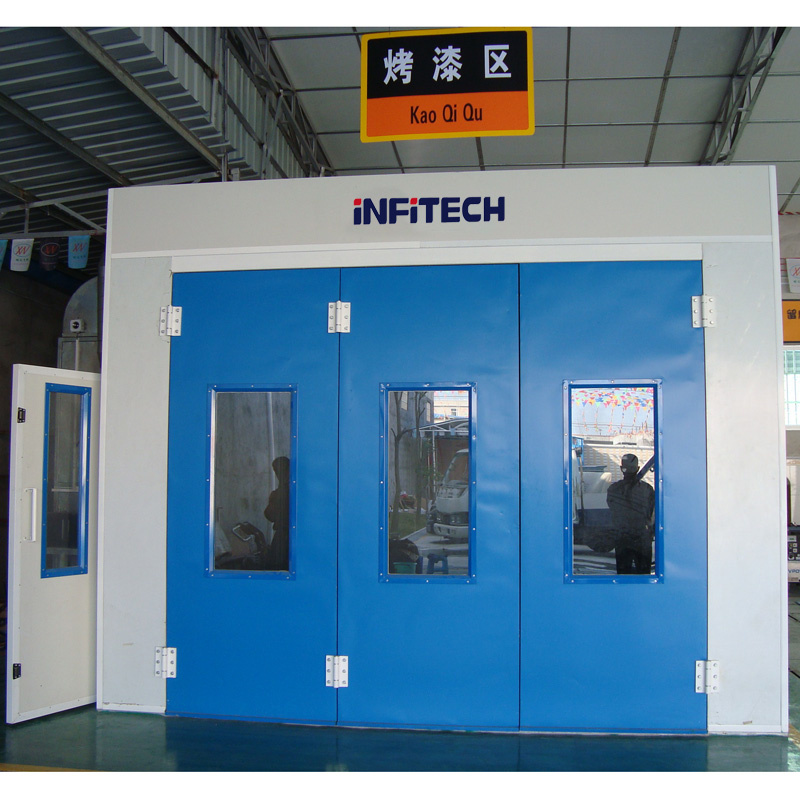

Entrance door
1.2+1structure, 3 observation windows with armoured glass(WXH:3200X2700mm).
2.Safe door,observation windows with armoured glass.
Cabin structure
1.Full grids, 650kg/ wheel.
2.heat-resistant rock wood panel,base plate thickness:0.426mm.
3.400mmheight plenum chamber /350mm height basement .
4.European bulge roof design.
Heating system
1.158KW high efficient , energy-saving heating exchanger.
2.Double protection with over temperature.
Control system
1.Basic control panel ,painting ,Heating painting , baking. Component pictures

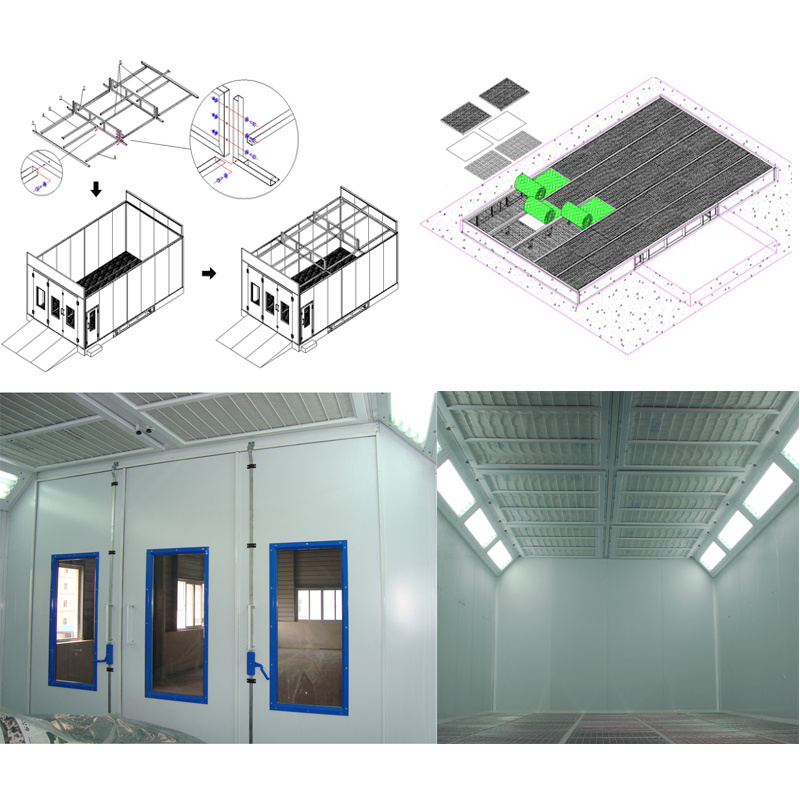

Cabin structure
Cabin structure adopt standard modular design, the staircase structure of the top external boxes, high strength and easy to install.
Lighting system
Adopting IP54 protection grade , the light box fully meet EU standards.
Base return air system
-Assembly structure can not be adjusted.
-Kinds of choice diversified the way of ground exhausting and mist-handling.
-Plug in new grid structure, flat contact surface touch, full grids cover the ground, steel grating load 650KG/ wheel, safe and reliable for supporting vehicles.
-Laying fiberglass paint-resistance filters on the bottom of grid,G2 Grade, accommodate paint of 6KG/m2.
-We support drive-in-ramp, according to the require of customer , we will provide the technology guidance of the base plane embedded beneath the ground zero.
-Other form of exhausting and mist-collecting disposal, please consult our sale engineer,we will provide the perfect pre-sale service and technical guidance.

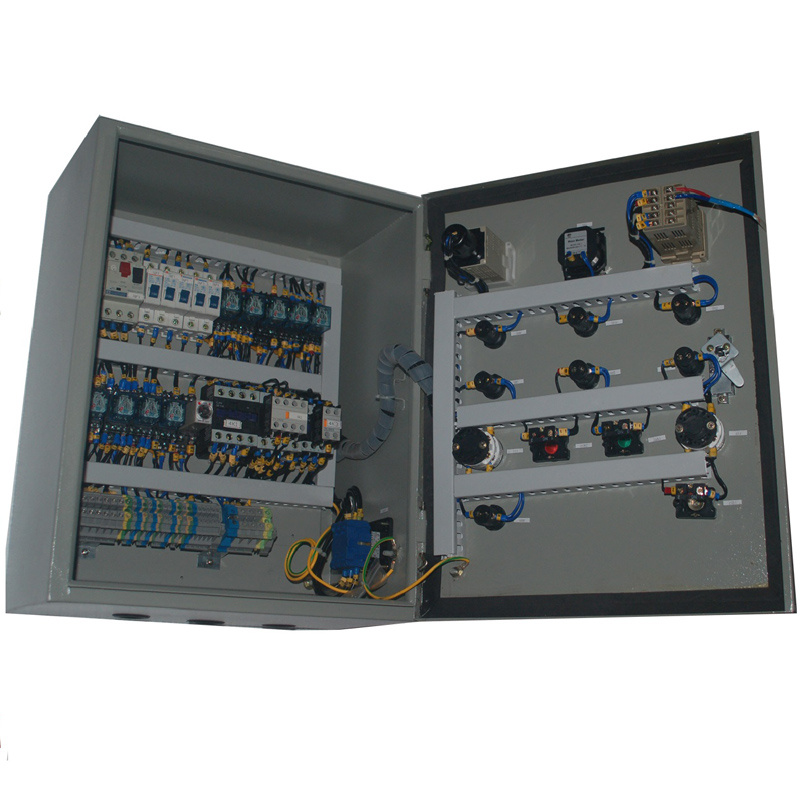

Control system

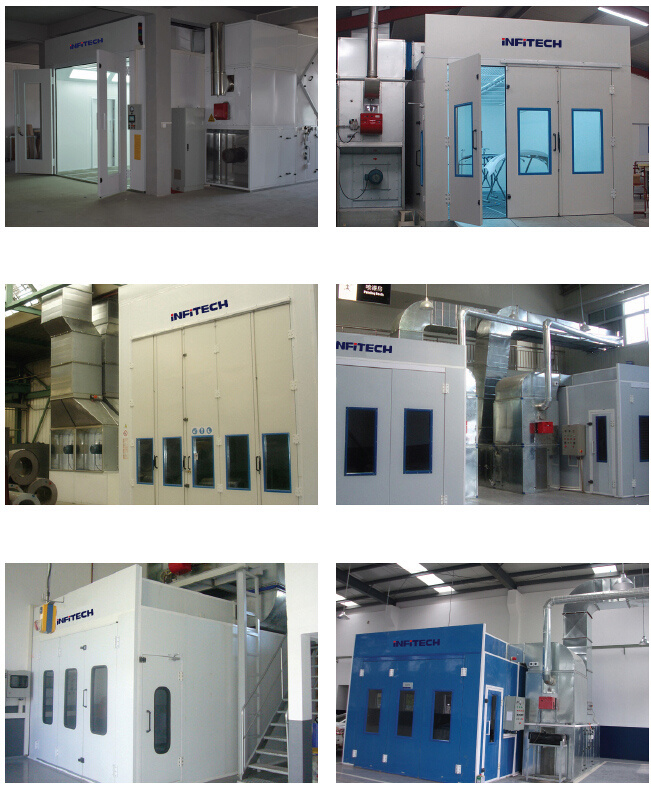

This system conforms the EU standard indication EN13355. Configuration painting, heating paint, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indicator and other basic functions.Sussessful Story
Why Choose Us
1.More than 10-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.

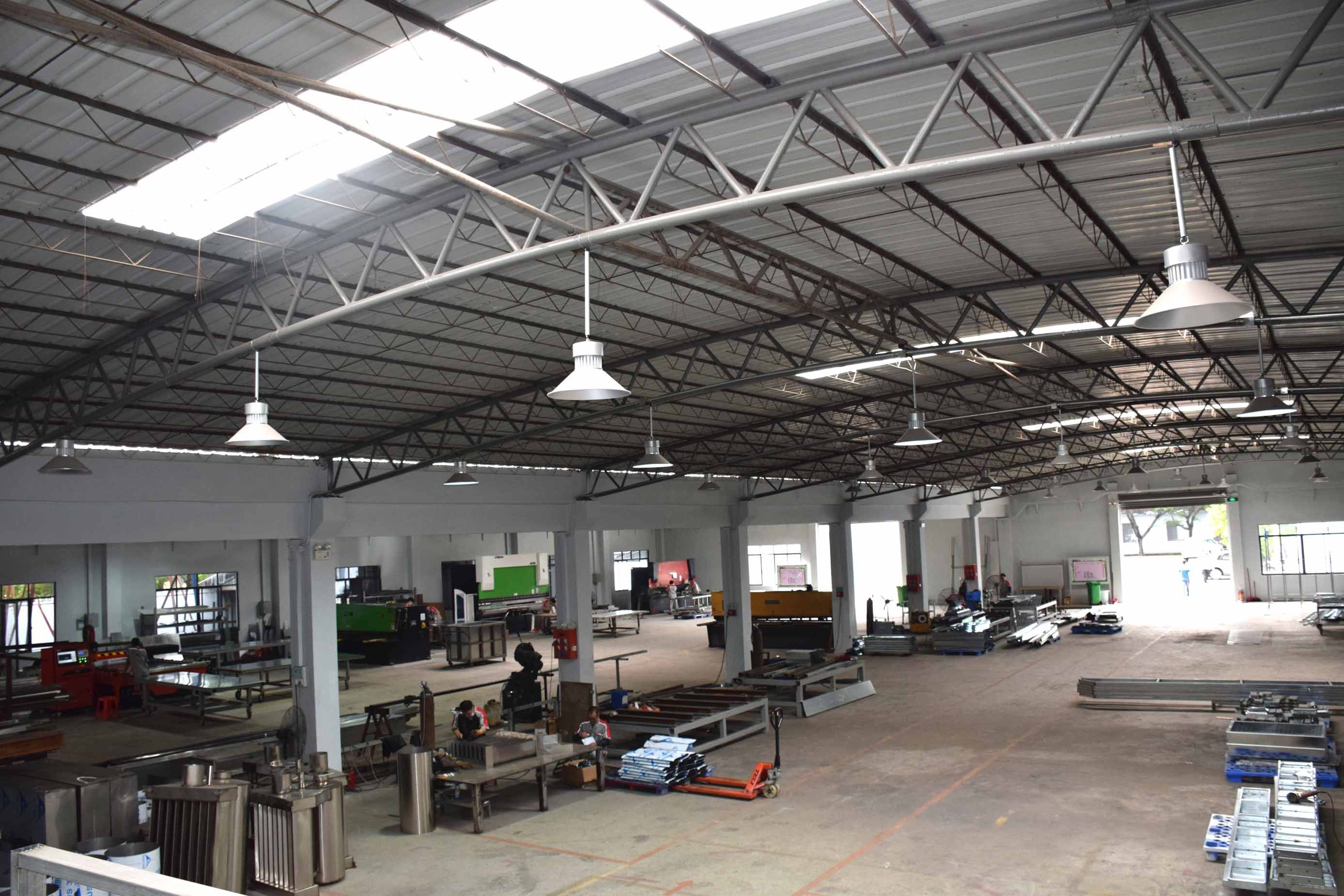

6.Excellent pre-sales and after-sales service. Company Information
| Prod Model: |
YFT-F501 |
| Brightness: |
>1000lux |
| Empty Loaded: |
+/-0.18m/S |
| Total Fan Capacity: |
18000m3/H |
| Heating Exchange Capacity: |
158kw |
| Delivery Date: |
15 Days |
| Voltage: |
380V/400V/415V,Your Special Voltages Are Accepted |
| Dimension: |
6900X4000X2800 |
| Color: |
as Request |
| Inside Dimention: |
6900X4000X2800mm |
| Air Exhaust: |
Optional |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
