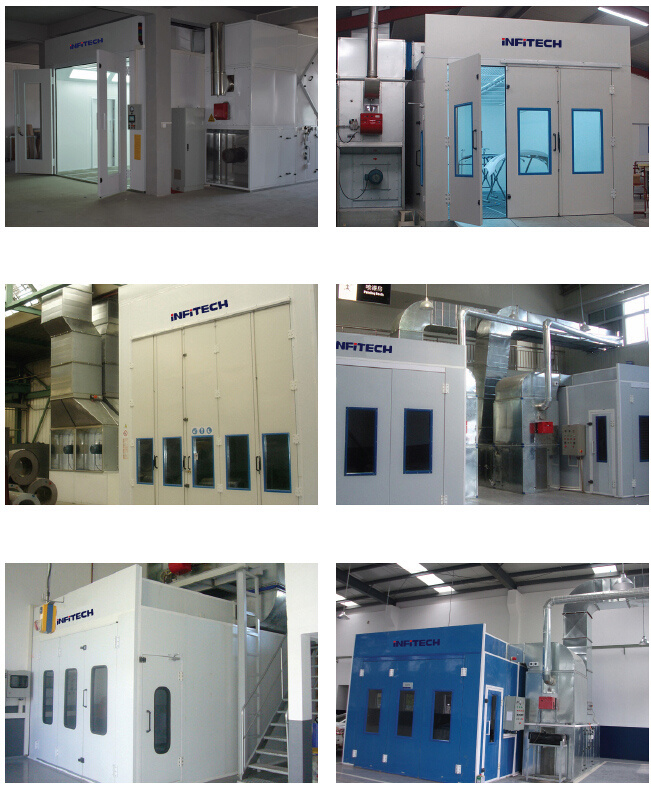

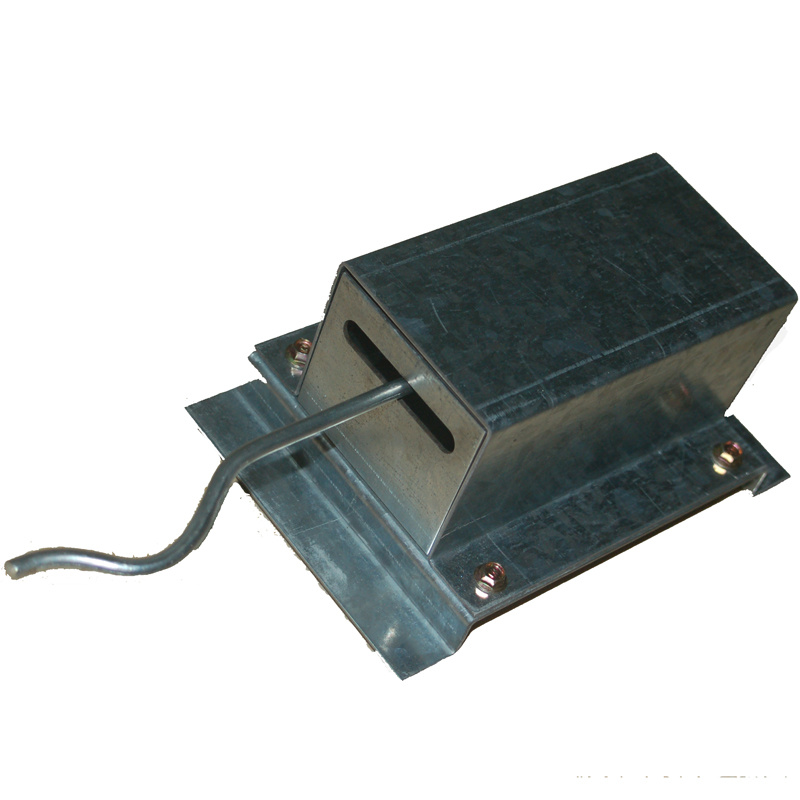

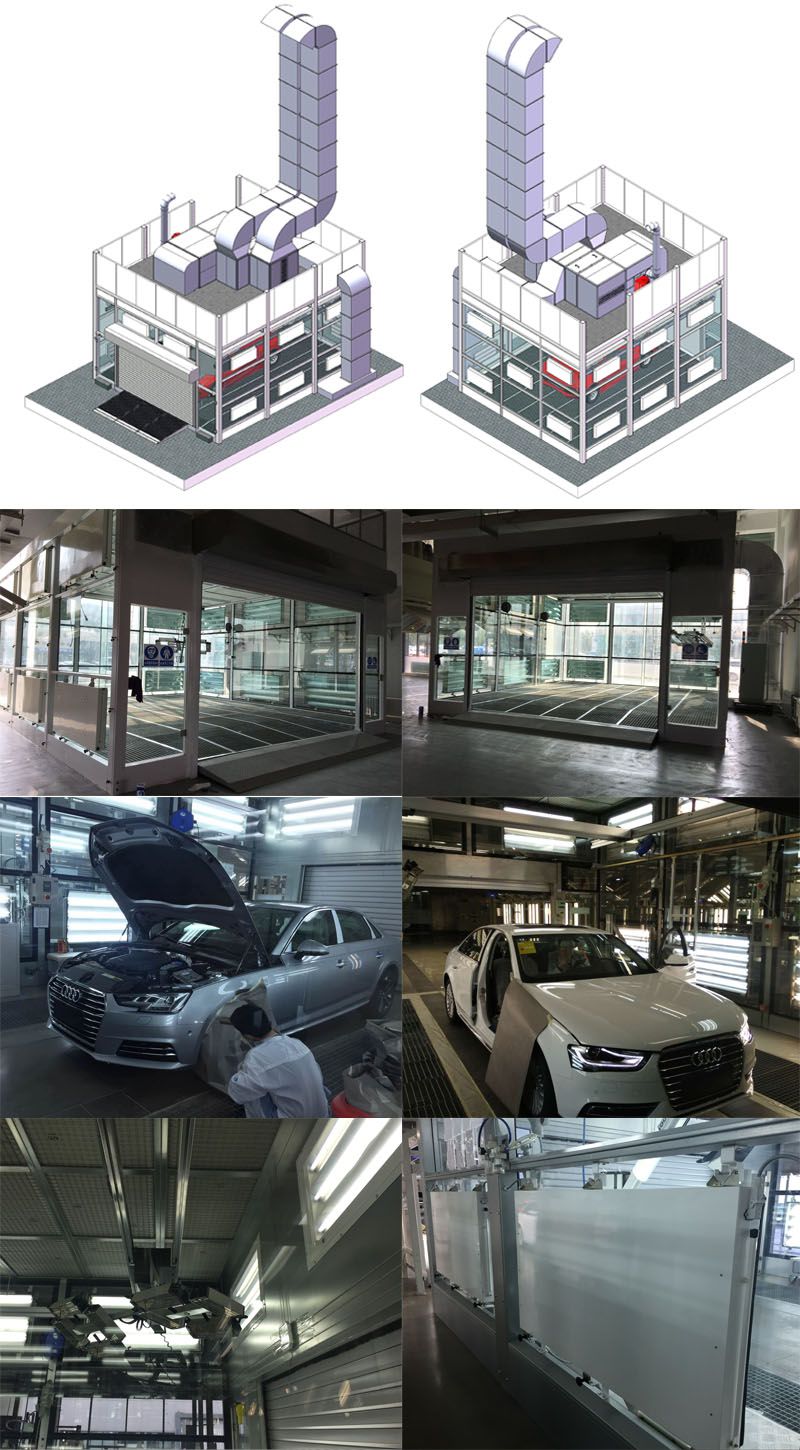

| Specification(European design) |
| BOOTH DIMENSION | |
| Inside size | 7000×6000×3500mm(L×W×H) |
| Outside size | 7350×7400×5760mm(L×W×H) |
| BASE | |
| Base design | Galvanized sheet bending form, full grids, basement height 350mm, can be adjusted |
| Carrying Capacity of grids | 700kg/wheel |
| Filter area | 42m2 |
| Drive-in- ramps | X3 pcs, galvanized bending forming, grids struture |
| Grid description | Adopt galvanized bending forming, more durable and stronger. Full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. Its biggest features are beautiful, durable and better force bearing. |
| CABIN | |

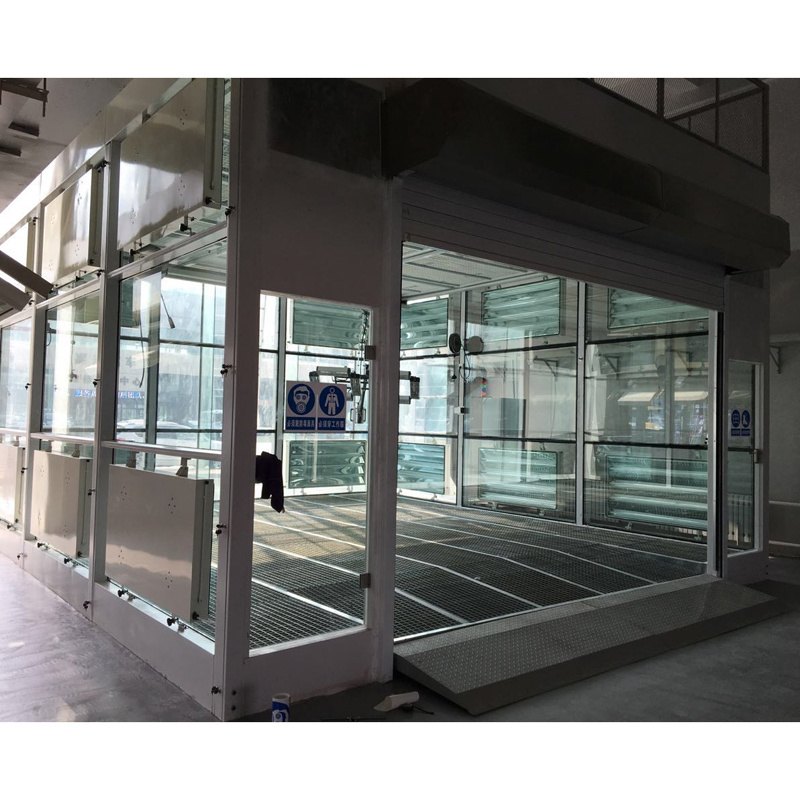

| Cabin struture | Sheet metal column structure, double layer vacuum thermal insulation glass. |
| Plenum height | 400mm. |
| DOOR | |
| Door form | Electrical roller shutter. |
| Door size | 3980×2700 mm (W×H). |
| Power | 550W, maximum lifting weight: 800kg, lifting speed: 0.2m/s. |
| Door arrangement and quantity | 1 set |
| Door description | Galvanized sheet, filled with aluminum silicate cotton inside and outside, can be controlled both internally and externally, with safety protection device. |
| WORKING DOOR | |
| Door size | 2000×800 mm (W×H) |
| Door arrangement and quantity | 2 sets |
| Door description | Tempered glass door, with door closer |
| LIGHTING | |
| Quantity and power | 16 sets of light fixtures, each 4 X 36W, 2304W total |
| Lighting arrangement | on both sides |
| Lighting description | Protection class IP55, CE certified electronic ballasts, OSRAM lamp |
| FILTRATION SYSTEM | |
| Pre-filters | EU3 grade pocket filter |
| Ceiling filter | EU5 grade high efficient filter |
| Bottom filter and exhaust filter | Fibreglass paint-stop filters, G2 grade |
| INLET SYSTEM | |
| Inlet fan | Direct-type turbine fan |
| Inlet fan power and motor description | 11KW,970 rpm, 380 V, 50 Hz |
| Parameters of inlet fan | 35000 m3 / h, 650pa |
| EXHAUST VENTILATOR | |
| Exhaust fan | Direct-type turbine fan |
| Exhaust fan power and motor description | 11KW,970 rpm, 380 V, 50 Hz |
| Parameters of exhaust fan | 35000 m3 / h, 650pa |
| EMPTY LOADED AIR SPEED | +/- 0.23m/s |
| NOISE | <78dB |
| HEATING SYSTEM | |
| Heat exchanger | Stainless steel 1Gr18Ni9Ti (SUS304) |
| Heat power | 232KW |
| △T temperature increase capability | 20° C (from 0°C to 20°C under painting status) |
| The maximun operating temperature | 80°C |
| Heating time | 5-8 minutes (from 20°to 60°C under baking status) |
| Model diesel burner | RG5S diesel burner |
| CONTROL SYSTEM | |
| Control system | Inverter control system |
| PLC controller | Yes, PLC control, more reliable, lower breakdown rate |
| Human-computer interface touching screen control system | Yes, touching screen control, easier to operate |
| Ceiling and floor filter change reminder function | Differential pressure transmitter is installed in the ceiling filter and floor filter, when dust and paints accumulate to a certain level in the ceiling and floor filter, the control system will remind user to change filter. |
| Inverter control | Inverter control, more energy-saving, more economical |
| Function | Painting, warm painting, baking, leveling, emergency stop switch, inverter, pressure adjust balance, failure indication, over-temperature alarm indication, baking delay stop protection |
| SPECIAL ITEM | Rated power: 28KW |
| OPTIONAL | |
| Three-dimensional infrared baking lamp | Using German technology and high quality IRA infrared shortwave heating tubes (which has been certified by international special light source laboratory), total power: 8X1KW, the longitudinal and transverse guidance rail at the top of the booth makes lamps move in all directions, two variable angle swing arms allow the lamp body to be in any position, the lamp body is lifted by gas spring. |
