GZ GUANGLI EFE CO., LTD. >> Professional Manufacturer Guangli Brand Ce Certificate High Quality Auto Big Spray Paint Booth Oven

Professional Manufacturer Guangli Brand Ce Certificate High Quality Auto Big Spray Paint Booth Oven

Professional Manufacturer Guangli Brand Ce Certificate High Quality Auto Big Spray Paint Booth Oven
Price: US $ 2000-25780/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
Professional Manufacturer Guangli Brand CE Certificate High Quality Auto Big Spray Paint Booth Oven

GuangLi Spray booth Feature

--Wall panel: sandwich style, δ=50mm,rock wool available as required.
--Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
--Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
--Ramp: 2 pcs vein board.One 11kw intake fan,One 7.5kw exhaust fan
--5m straight exhaust ducts, one 90° bend, and one 60° bend,5m straight chimney and 2 small bends.
--Damper changer of painting and drying: changed automatically with cylinder-link driving.
--Heat exchanger: stainless steel. Riello/ G20S burner.
--Roof filter: 5 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--2 pcs of floor filter and 1 pc of outlet filter.
--Upper light: 12 sets, 4*40w per set.
--Control box: imported components, overload, overheat, phase-lacking,
phase-lacking protection, engine Y star-delta start.
--Automatically stop when preset time is up.

--Constant temperature spraying.

Technical SpecificationsGL2000-B1
External size(m)8.7×5.63×4.23
Internal size(m)8.6×4.0×3.4

Door width(m)

3.0

Door height(m)

3.35

Air flow (m3/h)35000
Inside no-load air speed(m/s)0.25-0.3
Power (kw)20.5
Vehicle suitedMid-size bus

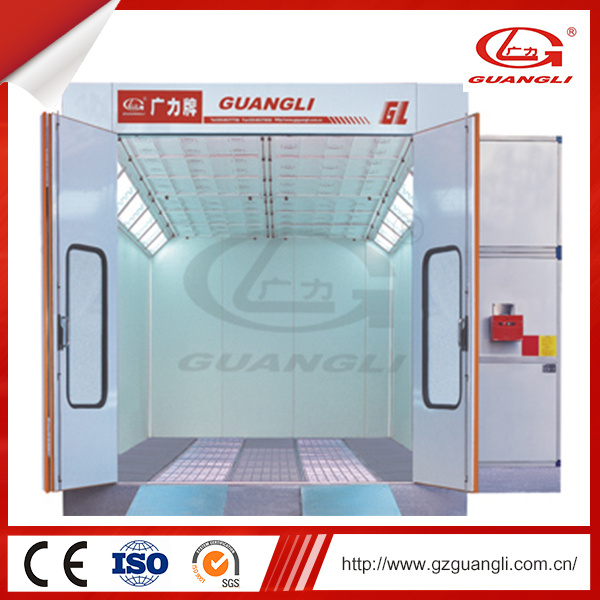

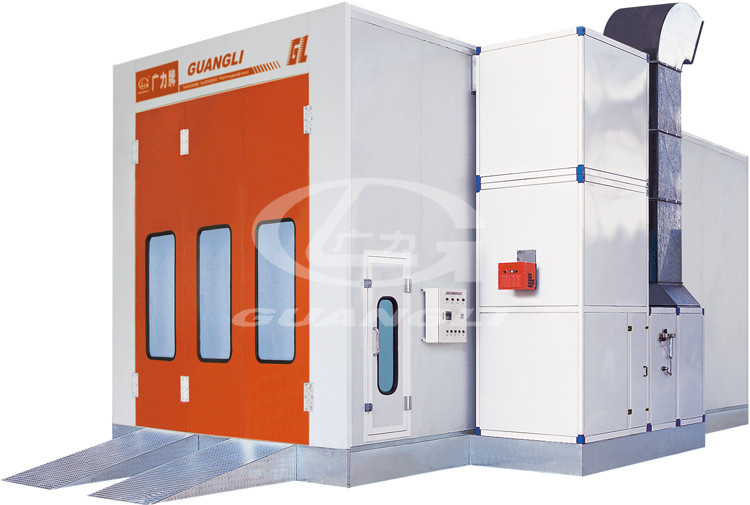

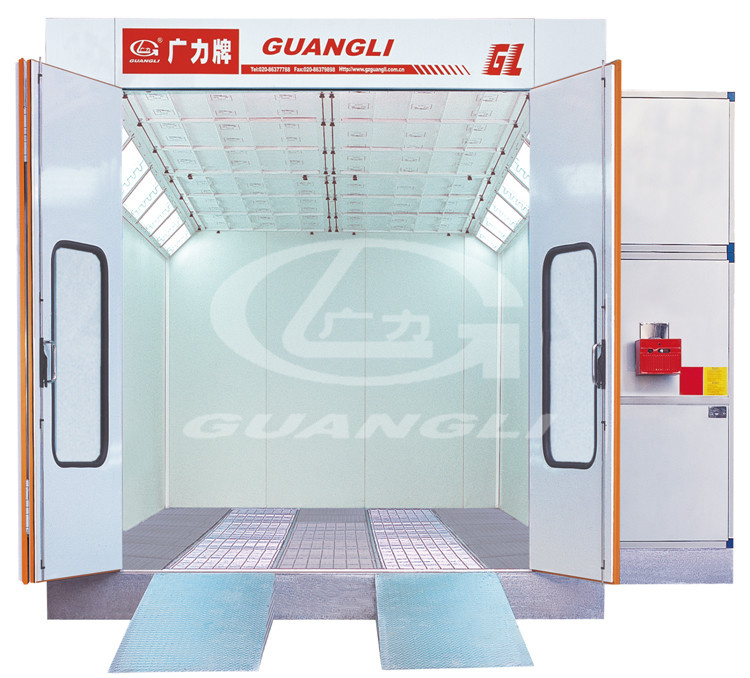

GuangLi Spray booth Show




Company Information

GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 22 years technical and production experience.
Founded in 1994, Guangli has our own enterprise headquarters, which covers 58,000M2of grounding area and 36,000M2of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

Why choose us?

  1. More than 20-year experience in Spray booth and car lift field.
  2. Competitive price can be offered.
  3. Large order can be placed.
  4. Advanced equipment and exquisite workmanship.
  5. Durable and reliable.
  6. Good pre-sales and after-sales service

Cetificates
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.

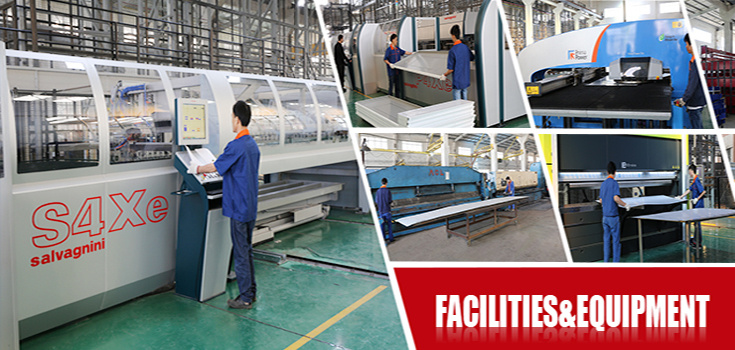

Equipment
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

FAQ

Q:Where is your company located? How can I visit there?

A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.

Q:How about the quality of the products?

A:With the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and craftsmanship.

Q:Can we customize our product?

A:Yes,you can.Customized material and standard are acceptable. We can provide different standards according to your market and favor.

Q:What's the MOQ for each items?

A:We accept one piece/set each time.

Q:What's the delivery time?

A:If the product you ordered is our standard configurations, it's 7 workdays.

Strength in Engineering

We will design, engineer, manufacture and build equipment to your unique requirements. This level of customization requires an expansive and experienced design and engineering staff. Our in-house design and engineering team rivals our competition in size and experience.

Expansive Distribution Network

GUANGLI is proud to be represented by the finest distribution network in the world. This expansive network of sales, installation and service personnel throughout around the world allows us to provide our customers with the support they need on the local level.

Project Management & Installation

Our financial strength allows us to take on large projects, such as complex systems integration projects. On these large projects,GUANGLI provides dedicated project management and installation services. Our experienced staff has completed installations of some of the most advanced finishing environments in the world.

Service after the Sale

Our relationships with our customers don't stop once the product has been installed. GUANGLI offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

Contact Us


http://www.gzguangli.com

Prod Model: GL2000-B1
Door Width(M): 3.0
Door Height(M): 3.35
Air Flow (M3/H): 35000
Vehical Suited: MID-Size Bus
Usage: Car Painting Baking
Color: Red White Orange Blue
Heating System: Riello Brand Diesel Burner
Filters: High Efficiency Filter
Lighting System: Ceiling Light
Special Design: Customised
Certification: CE
Airflow Direction: Cross-flow Type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Type: Spray Booth
Brand: Guangli
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D

Team and material sources, our products are excellent in performance and craftsmanship.

We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.

Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
