GZ GUANGLI EFE CO., LTD. >> Factory Supply Truck/Bus Maintanance Equipment Paint Room Automobile Spray Painting Room (GL10-CE)
Factory Supply Truck/Bus Maintanance Equipment Paint Room Automobile Spray Painting Room (GL10-CE)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |

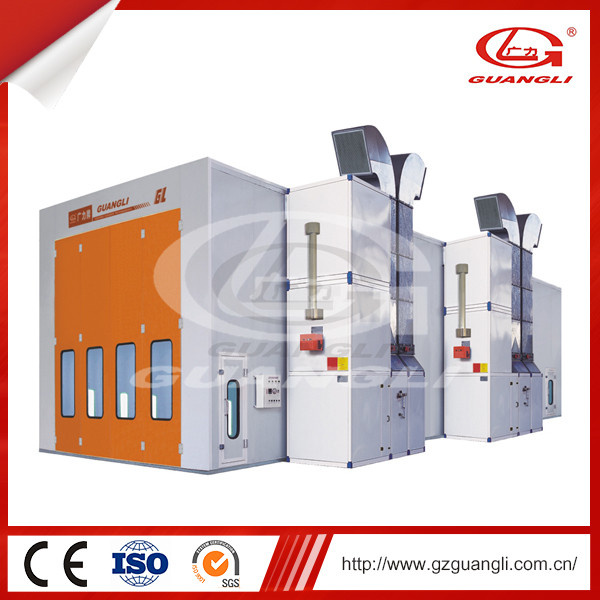

Factory Supply Truck/Bus Maintanance Equipment Paint Room Automobile Spray Painting Room(GL10-CE)
Guangli Spray Booth Description--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement :concrete structure made by the customers,2 rows of grids,3d lifts as optional.
--Door:4 pcs of front door without aluminum side cover.2 pcs of emergency door with pressure lock.
--Two units of 11kw intake fans and two units of 11kw exhaust fans.
--Two sets of exhaust/intake fan ducts,5m straight ducts,one 90° bend,and one 60°bend each .
Two sets of chimney,5m straight chimney and 2 small bends.
--2 sets of manual VCD exhaust/intake damper,electrical VCD as optional.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.2 units of Riello RG5S burners.
--Roof filter:16 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :20sets,4*40W per set.side lights: 16 sets,4*40w.
--Control box:components imported,overload,overheat,phase-lacking,phase-locking protection,engine Y/△start.
--Automatically stop when preset time is up.
--Constant temperature spraying
--Environmental filter:either M style or drawer style active carbon equipment can be adopted.| Model | GL10-CE |
| External size (m)(LxWxH) | 15.2×6.7×5.0 |
| Internal size (m)(LxWxH) | 15.0×5.0×4.4 |
| Entrance Width(m) | 4.0 |
| Entrance Height(m) | 4.0 |
| Fan capacity( m 3 /h ) | 72000 |
| Air velocity (m/s) | 0.3-0.5 |
| Drying Temperature(ºC) | 20-80 |
| Oil consumption (L/unit) | 6-8 |
| Power (kw) | 50 |
| Suitable Automobile Type | Truck/Bus |

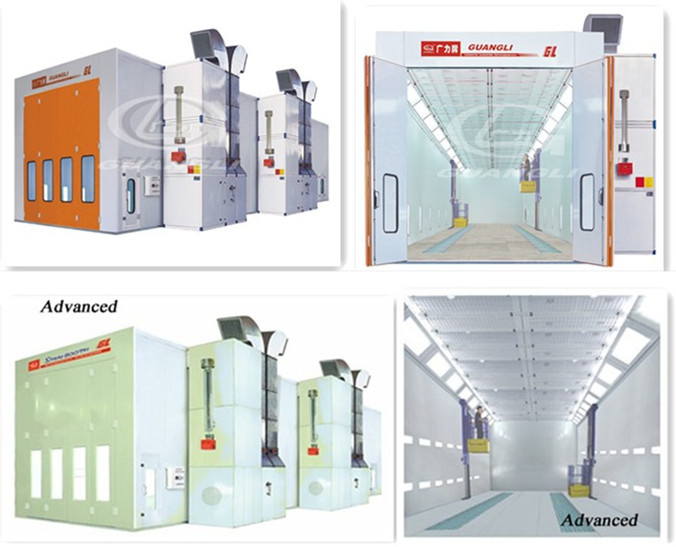

Guangli Spray Booth Show

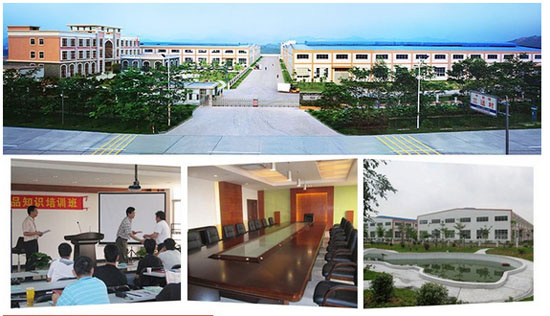

Company profileGZ GUANGLI EFE CO.,LTD is the first and the largest,professional auto spray booth manufacturer in China, now more than 20 years technical and production experience, having a good reputation among Chinese auto-maintenance enterprise. We have a branch company in USA.All our Spray booth,painting booths and car lifts have passed the CE certificate,CCS certificate and our company has passed ISO9001:2008.Our products have been approved and authorized by many auto manufacturers,such as Honda,Dongfeng Honda,FAW Toyota,BMW South China.

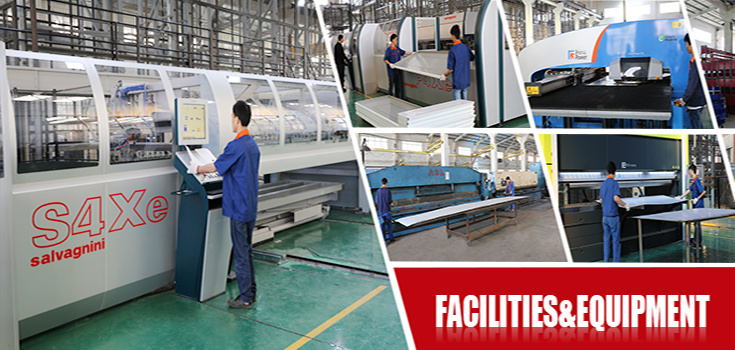

EquipmentWith the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and craftsmanship.

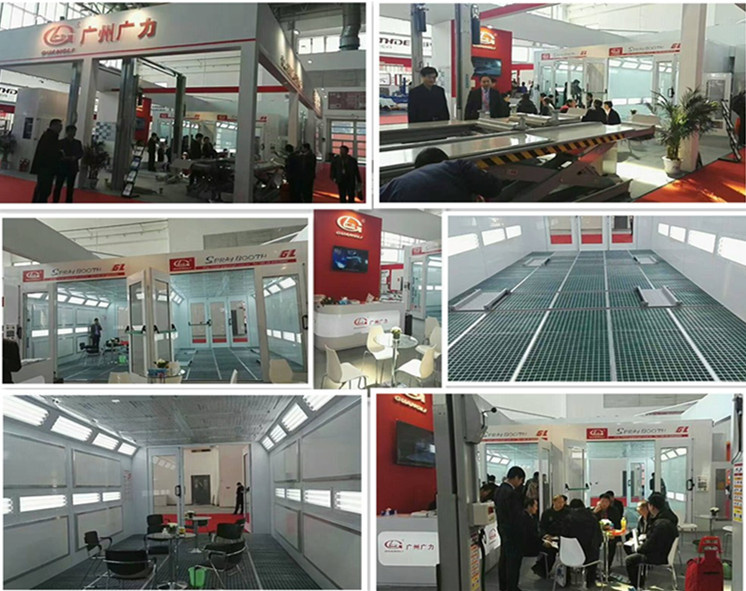

Exhibition

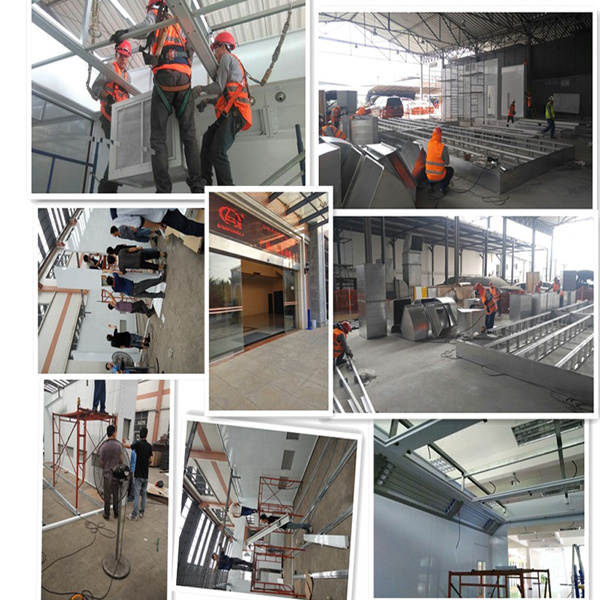

Service after the SaleOur relationships with our customers don't stop once the product has been installed. Guangli offers many
options for service and maintenance, and provides a full line of replacement parts and filters to ensure
your products operate at peak efficiency. FAQQ1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.Warmly welcome to contact:
Tel: 0086-20-86378972
Mobile: 008613925061383
Website: http://www.gzguangli.com
| Prod Model: |
GL10-CE |
| Door Width(M): |
4.0 |
| Door Height(M): |
4.0 |
| Air Flow (M3/H): |
72000 |
| Lighting System: |
Upper Light+Side Light |
| Filters: |
High Efficiency Filter |
| Color: |
Red Blue Orange White |
| Usage: |
Truck/Bus Car |
| Heating System: |
Riello Brand Diesel Burner |
| External Size(M): |
15.2X6.7X5.0 |
| Internal Size(M): |
15.0X5.0X4.4 |
| Certification: |
GS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Spray Booth |
| Brand: |
Guangli |
