| Prod Model: |
SJC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
3000kg-7000kg/customized |
| Diameter: |
1m-35m/customized |
| Speed Of Turning: |
2r/Min or Adjustable |
| Power: |
0.75kw |
| Control: |
Button/Remote Control |
| Drive System: |
Pin-Gear Drive System |
| Materials: |
Aluminum or Steel Platform |
| Working Condition: |
Indoor or Outdoor |
| Installation: |
Need One Pit/Non Pit Installation |
| Warranty: |
5years |
Product Description
Parking Rotating Platform Car Turntable
Main feature:1.Pin-gear drive mechanism, ensuring the smooth revolving, reliable operation, low noise,
long life and minimal wear and tear.
2.Surface medium density fibre board, steel plate, diamond tread aluminum alloy available.
3.Max. diameter 35000mm available
4. Rotate car 360 degree
5. Made by steel, FOB Qingdao
6. 2 years warranty,1 month delivery
7.Car turntable, Vehicle Turntables, Automobile Turntables, Parking Turntables, max 35000mm diameter.
Directions for Use:1.This machine is used where the car can not make a turn, and auto-revolving automobile exhibition platform
2.The range of rotation: 0°- 360°
3.Automatic or manually control of rotation
Automobile Turntables For home OR show
Residential driveway turntables solve parking challenges
No need to risk backing into traffic when you have a Car Turner vehicle turntable.
Just drive on, push the remote control (like a garage door opener) and the car turntable rotate you safely and easily, so you can drive off head-first).
Car turners help eliminate accidents and property damage, and protect children from harm.
Turn your parking stress into pride of ownership with this practical and classy upgrade for your home. No digging required as the car turner mounts on the surface of your existing ground.
Parametersfor Reference:| Diameter | 4000mm | 4500mm | 5000mm | 5500mm | 6000mm | 6500mm | 7000mm |
| Height | 150-320
mm | 150-320
mm | 150-320
mm | 150-320
mm | 150-330
mm | 150-330
mm | 150-330
mm |
| Speed of turning | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm | 0.2-1rpm |
| Load capacity | 2000kg | 2500kg | 3000kg | 3500kg | 4000kg | 4500kg | 6000kg |
| power | 0.55kw | 0.55kw | 0.55kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Transmission mode | Pin-Gear drive mechanism |
| Platform material | 1.22mm Density Fiberboard 2.steel plate 3.Pattern aluminum plate 4.Tempered glass(choose any one) |
| Control system | 360 Rotation,button control/remote control/PLC control |
| Other diameter,height,speed of turning,load capacity,pls tell us,we can design and produce it for you,thanks |
Thank you for visiting our products!
Welcome to patronize !

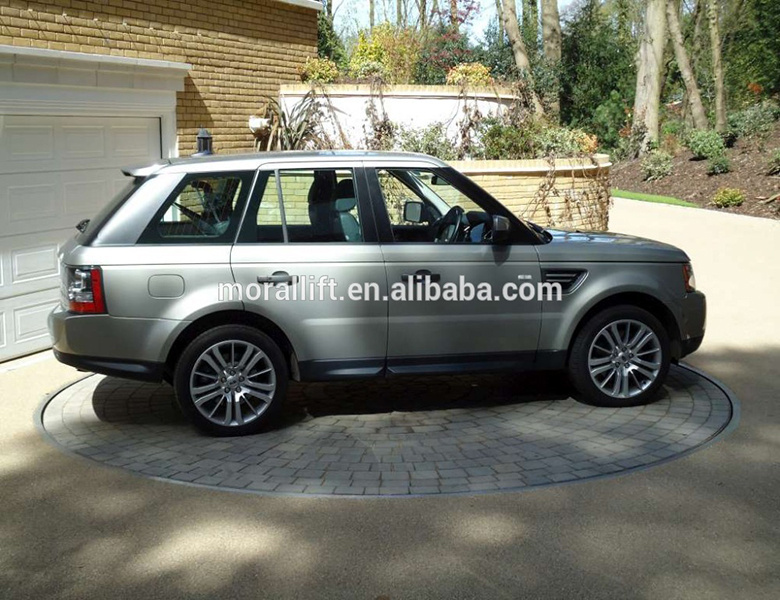

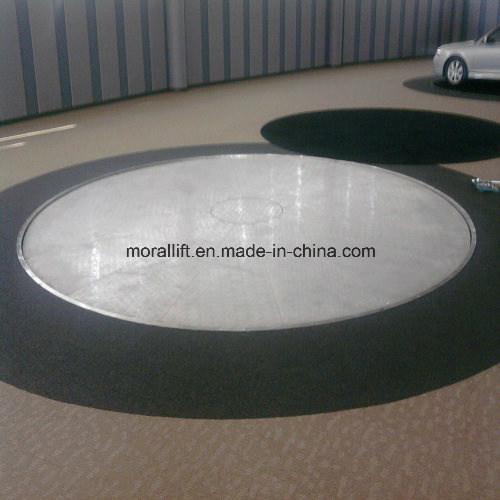

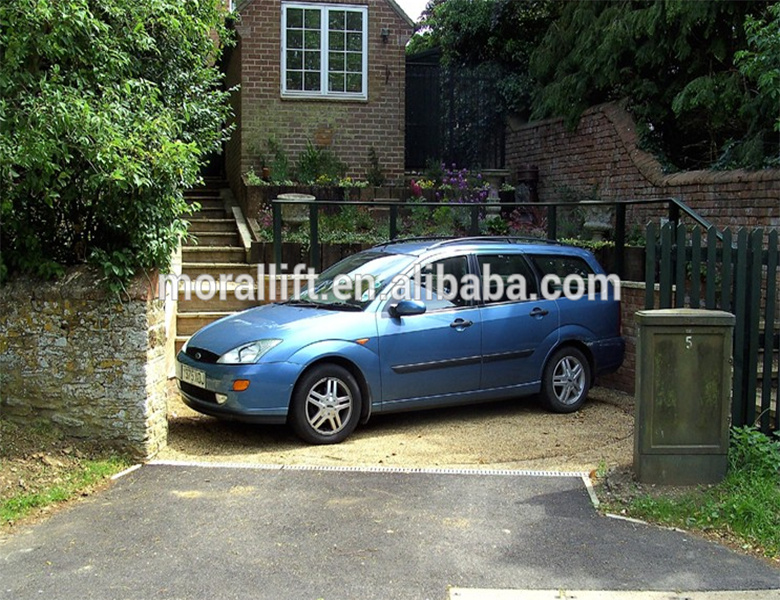

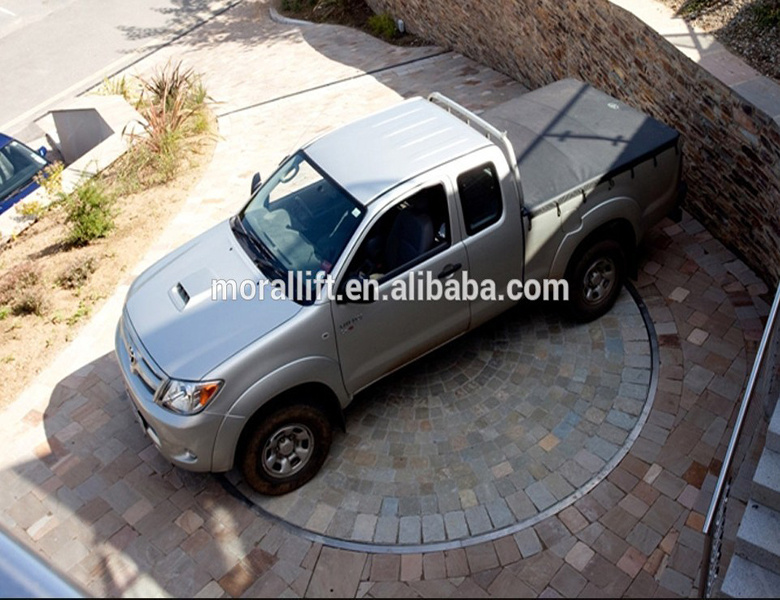

Product Photos:
Welcome to the on-line home of Moral lift Machinery Co., Ltd. Our factory is one of the leading manufacturer of Disabled weelchair lifts & scissor lift &parking equipment&Work platform&Horse trailer in China. Our mainly product including wheelchair lift, car parking lift, car turntable, cargo lift(VRC and scissor lift), work platform and Horse trailer etc.
With over 4 decades of experience in the manufacture of materials handling products, Morallift' S skilled team of friendly personnel can provide fast responses and technical expertise. Our product has got ISO9001: 2000 Quality Certification and has passed the test of CE Quality system as well. We always provide our customers with the best quality products, competitive prices and excellent services.
Our customers from around the world, We regard "reasonable prices, efficient production time and good after-sales service' ' As our tenet, and hope to cooperate with more customers for mutual development and benefits. We welcome every potential customer to visit our factory!
