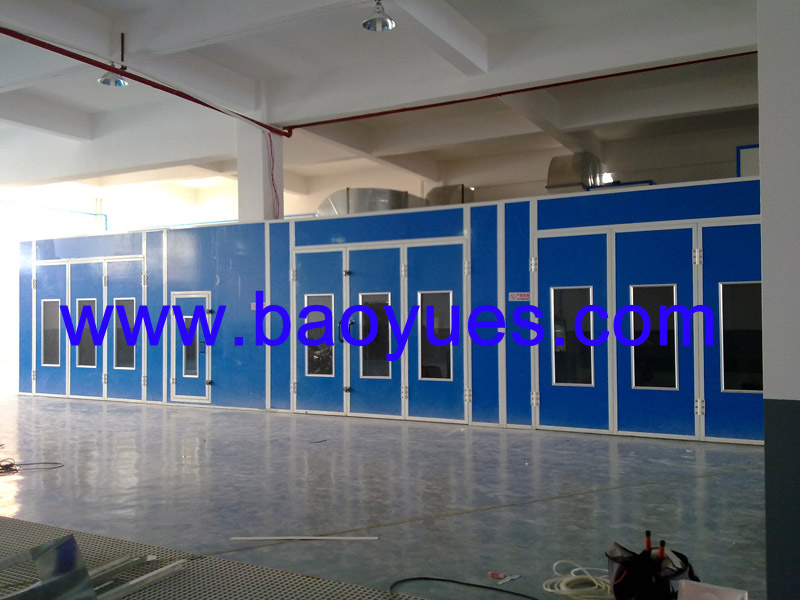

Paint Booths for Car Painting
Price: |
US $ 5000-7000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Prod Model: |
BY-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Supply: |
Custom Made |
Generator: |
on Top |
Lights: |
LED |
Fan: |
Turbo Fan |
Certification: |
CE |
Airflow Direction: |
Lateral Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Product Description
1, CE approvement;
2, Specilize manufacturer;
3, Timely delivery;
4, Custom-made;
5, Inlet and outlet box on the top;
Item | Detailed Specification |
Inside dimension | 6600× 3900× 2650 mm (L× W× H) |
Outside dimension | 7200× 4000× 3100 mm (L× W× H) |
Front door | Folding door, 3 folds, 3000× 2600 mm (W× H), with frame cover, colour: blue |
Emergency door | 1 unit, 650× 1800mm(W× H), colour: white |
Basement | Without basement, exhaust from back side wall. |
Wall panel | Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm colour steel with EPS insulation inside, colour: white. |
Light | Ceiling Lights: 8Units× 4Pcs=32Pcs× 36W, with electronic ballasts. |
Generator cabinet | On the top of the booth, quadrate steel frame; machine-made panel covered, filled with heat preservation material in the middle. |
Intake and Exhaust system | Inlet: 1× 3KW centrifugalfan, air capacity: 21000m 3 /h |
Outlet: 1× 5.5KW centrifugalfan, model: YDW4.5S1, air capacity: 15500m 3 /h |
Heating system | Without |
Purification system | Pre-filter, ceiling filter, fibreglass filter, activated carbon filter. |
Roof | EPS panel |
Control system | Spraying, time setting, lighting switch, power supply switch, emergency stop. |
Total power | 13.5KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
