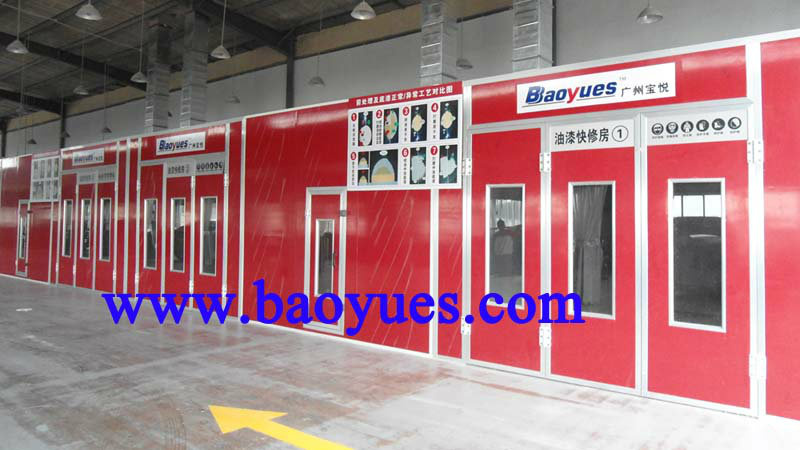

Baoyues Car Spraying Paint Booth,
| Price: |
US $ 5500-7000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Clear advantage
1. Good after sale service
2. Professional design team
3. Experienced installing team
4. Abord installation service
5. Life-long technical support service
Product advantage
Front door: Folding door, 3 fold
Wall panels: 0.376 color steel with rock wool
Heating: RIELLO G 20; Productivity: 200000 kcal/h
Company advantage
As a professional manufacturer, we have a wealth of production experience, can be very good control of the production cost and help you to lower your purchase cost
|
Inside dimension |
6900 × 3900 × 2650mm (L×W×H) |
|
Outside dimension |
7000 × 5350 × 3400mm (L×W×H) |
|
Front door |
F olding door, 3 folds, 3000×2600 mm(W×H), without frame cover , colour : blue. |
|
Emergency door |
1 unit, 650×1800mm ( W×H ) , colour: white |
|
Basement |
Galvanized steel assemble, 300mm high, quadrate steel support, full grilles made by flat bar and twisted steel, galvanized. 2 ramps, 750×2000mm/pc. |
|
Wall Panels |
Thickness:50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with polystyrene (EPS) insulation inside, colour: white . |
|
Light |
Ceiling Lights: 8Units × 4Pcs=32Pcs × 36W, Side Lights: 8Units ×2 Pcs= 16 Pcs ×18 W, with electronic ballasts, lighting boxes are powered coated. Illuminate: ≥1000LUX |
|
Generator cabinet |
Intake from side upper, exhaust from back uppe r galvanized steel frame; white coated steel covered, filled with heat preservation material inside. |
Intake and Exhaust system |
Inlet: 2×3 KW double-intake centrifugal fans, model YDW4.5M1, air capacity for each fan: 10500m 3 /h. |
|
Outlet: 1× 4KW double-intake centrifugal fan, model YDW4.5L1 , air capacity: 12500m 3 /h . |
|
Heating system |
RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 2000 0 0kcal/h, Max temperature: 80 °C . |
|
Purification system |
Pre-filter, ceiling filter, fibreglass filter, activated carbon filter |
|
Roof |
Galvanized steel. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, temperature limit controller, exhaust with manual damper, all motors are normal start. |
|
Total Power |
12KW
|
| Prod Model: |
BY-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Heating: |
Riello Oil Burner |
| Usage: |
Car Spraying Paint Booth |
| Wall Panels: |
0.376 Mm Colour Steel |
| Purification: |
95% |
| Noise Db (a): |
≤75 |
| Air Capacity: |
21000m3/H |
| Max Operating Temperature: |
80 |
| Safety: |
with Pressure Emergency Door |
| Warranty: |
1 Year |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Car Spraying Paint Booth |
| Brand: |
Baoyue |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
