One Way Clutch (Indexing clutch) (KI)
Price: |
US $ 25/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Model: KI
Type KI is a roller type freewheel. It is an assembly comprising of an inner race and rollers fitted into a polyamide cage. This type of unit can not be dismantled. It is designed for small mechanisms in office equipment, or packaging machines, to be mounted inside gears or feed Rollers.
The gear or feed roller inner diameter is used as the outer race. Additional bearing support is required, and the freewheel must not be subjected to axial loading; Mounting examples are shown on the following page. The outer race does not need to be hardened; Min. Strength: 700 N/mm2 The surface roughness will not exceed 22 CLA.
Mounting onto the shaft can be a press fit to r6 tolerance or a glue fit with a clearance of 0, 02 to 0, 05mm.

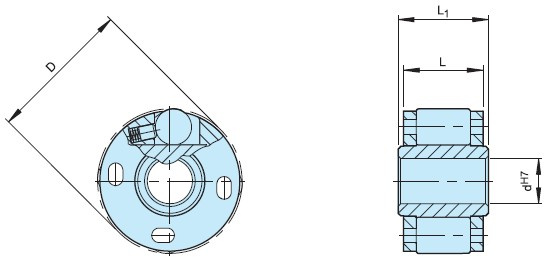

Sizes 8 mm and above can be supplied with a keyway. Temperature range: -40° C to +100° C (continuous operation). Peak temperatures of +120° C are acceptable for short periods of time.Type | Size | | | Overrunning speeds | | | | | Weight |
Ki | | dH7 | TKN1) | nimax2) | namax3) | DH7 | L1 | L | |
[mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [kg] |
164 | 4 | 0.8 | 8000 | 10000 | 16 | 10 | 9 | 0.008 |
165 | 5 | 0.8 | 8000 | 10000 | 16 | 10 | 9 | 0.007 |
194 | 4 | 0.9 | 7000 | 9000 | 19 | 10 | 9 | 0.012 |
195 | 5 | 0.9 | 7000 | 9000 | 19 | 10 | 9 | 0.011 |
196 | 6 | 0.9 | 7000 | 9000 | 19 | 10 | 9 | 0.01 |
268* | 8 | 2.9 | 5000 | 6000 | 26 | 14 | 13 | 0.023 |
269* | 9 | 2.9 | 5000 | 6000 | 26 | 14 | 13 | 0.021 |
2610* | 10 | 2.9 | 5000 | 6000 | 26 | 14 | 13 | 0.019 |
Pictures

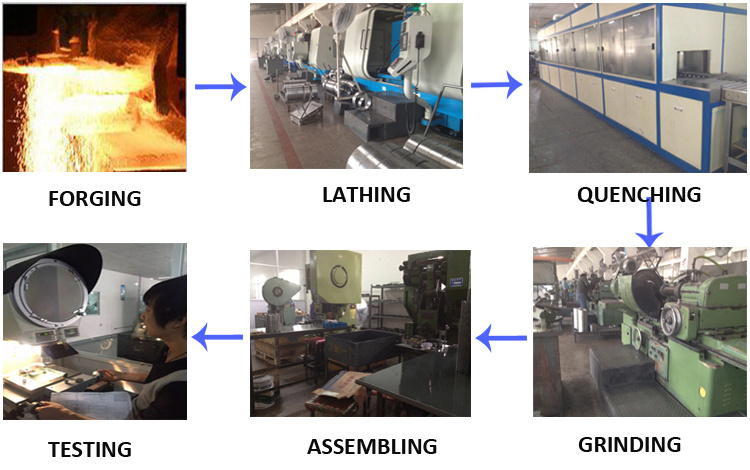

Production Flow

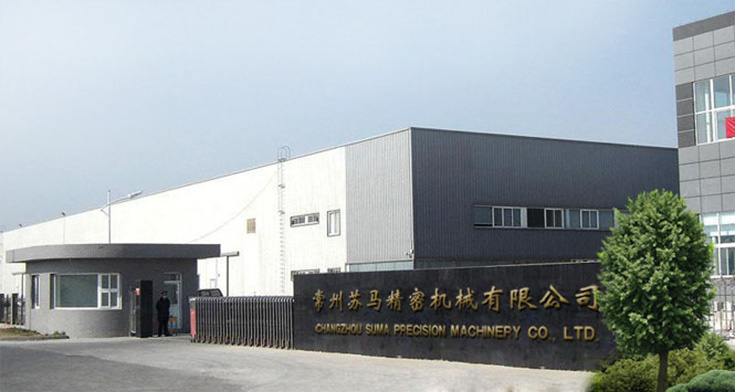

Company Information
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
Prod Model: |
KI |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Ki |
Type: |
Roller |
Inside Diameter: |
4-10mm |
Torque: |
0.8-4.9nm |
Weight: |
0.008-0.019 |
Precision: |
P6 |
OEM: |
Accept |
Seals Type: |
Sealed |
Port: |
Shanghai;Ningbo |
Delivery: |
10-15days |
Part: |
Clutch Disc |
Material: |
Steel |
Certification: |
ISO/TS16949:2002 |
Stroke: |
4 Stroke |
Usage: |
Heavy Duty Trucks |
Working Mode: |
N/a |
Working State: |
N/a |
Voltage: |
N/a |
Electromagnetic Clutch: |
N/a |
Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.
The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.
With more than 10 years of experience, er focus on developing and manufacturing a variety of one way bearings to meet the needs of our customers' reauirements. With an emphasis on performance and reliability, we provide products that support industry machines, such as forklift, torque covertor, -excavator, printer, textile machines, fans, small-size loader and so on.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.
We welcome you to visit our website, and do not hesitate to contact us.
