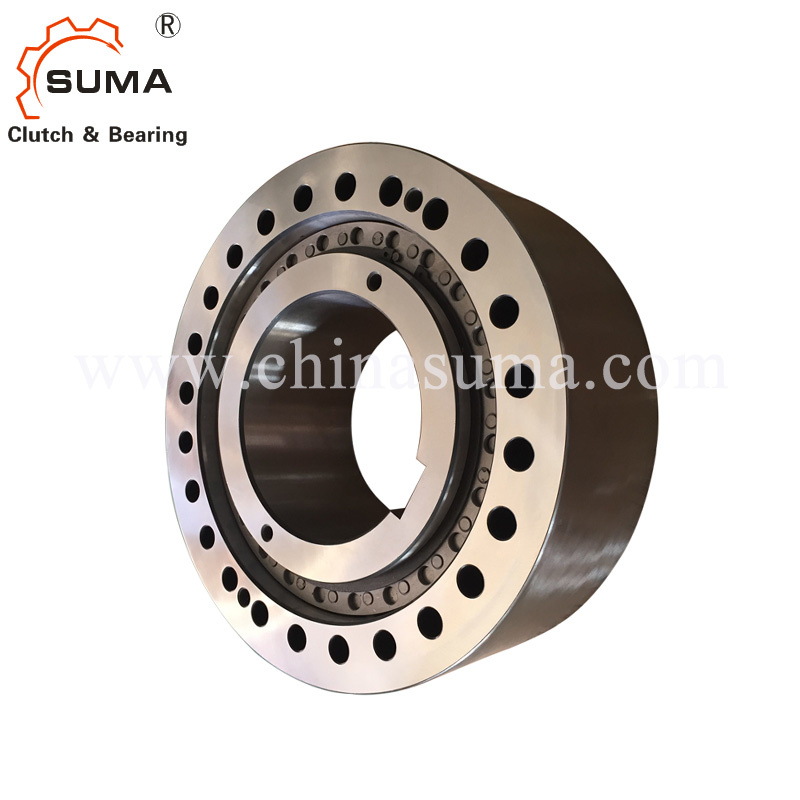

One Way Clutch Backstop (RSCI 20-130)

Product Model: RSCI 20-130
Data Sheet

Item	RSCI 20 -130
Material	GCr15
Bore dia.	20-130 mm
Outer dia.	90-322 mm
Torque	212-15750 Nm
Weight(RSCI)	1.5-35 kg
Weight(F8)	0.3-6 kg
Number of Z	6-12

Introduction
Type RSCI is a centrifugal lift off S sprag type freewheel with the inner race rotating. Only the inner race is designed for freewheeling. It is a non self- supported type.
Bearings must be provided to ensure concentricity of the inner and outer races and support axial and radial loads, as shown overleaf. Concentricity and run-out limits must be observed. The RSCI type accepts all types of lubricant currently used in power transmission equipment. It is possible to mount these freewheels directly in gear-boxes without separate lubrication. An oil mist is generally sufficient. Grease lubrication may be acceptable if the unit works mostly in overrunning condition, as on E-motors.
When used as a backstop, it must be checked that the overrunning speed will not go below the minimum speed given in the caracteristics table. Please refer to page 78 (RSCI 180-300) for further information.

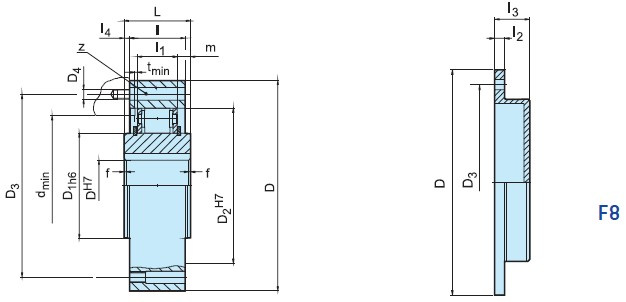

Different Sizes For Your Reference

Type	Size		Speeds								Number											Weight
RSCI	dH7	TKN1)	nmax2)	nimin3)	nimax4)	D5)	D1h6	D2H7	D3	D4	z	L	I	I1	I4	f×45°	dmin	m	tmin	I2	I3	RSCI	F8
	[mm]	[Nm]	[min-1 ]	[min-1 ]	[min-1 ]	[mm]	[mm]	[mm]	[mm]			[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	[kg]
	20	212	315	750	15000	90	36	66	78	M6	6	35	35	25	0	0.8	52	5	1	8	16	1.5	0.3
	25	319	300	725	14000	95	40	70	82	M6	6	35	35	25	0	1	56	5	1	8	16	1.6	0.4
	30	375	290	700	11000	100	45	75	87	M6	6	35	35	25	0	1.5	62	5	1	8	16	1.8	0.4
	35	550	280	670	11000	110	50	80	96	M6	8	35	35	25	0	1.5	66	5	1	8	16	2.1	0.5
	40	800	260	630	8000	125	60	90	108	M8	8	35	35	25	0	1.5	76	5	1	10	21	2.7	0.7
	45	912	255	610	7000	130	65	95	112	M8	8	35	35	25	0	1.5	82	5	1	10	21	2.9	0.9
	50	1400	235	560	6000	150	80	110	132	M8	8	40	40	25	0	1.5	100	7.5	1	10	21	4.3	1
	60	2350	210	510	6000	175	85	125	155	M10	8	60	50	36	5	2	110	12	2	12	35	6.5	1.8
	70	3050	195	470	4000	190	100	140	165	M10	12	60	50	36	5	2	120	12	2	12	35	8.6	1.9
	80	4500	180	440	4000	210	120	160	185	M10	12	70	60	36	5	2	140	17	3	12	35	12.5	2.6
	80M	5800	155	375	4000	210	120	160	185	M10	12	70	60	46	5	2	140	12	2	12	35	13.1	2.6
	90	5600	170	410	3000	230	140	180	206	M12	12	80	70	36	5	2.5	165	22	3	12	35	17.4	3
	90M	8700	145	350	3000	245	140	180	206	M12	12	80	70	46	5	2.5	160	17	2	12	35	18.3	3
	100	10500	145	355	3000	290	140	210	258	M16	12	90	80	52.6	5	2.5	180	18.6	3	15	37	28	5
	100M	16000	140	340	2400	290	170	210	258	M16	12	90	80	63	5	2.5	200	13.5	2	12	35	30	5
	130	15750	135	330	2400	322	170	240	278	M16	12	90	80	52.6	5	3	210	18.6	3	15	37	35	6

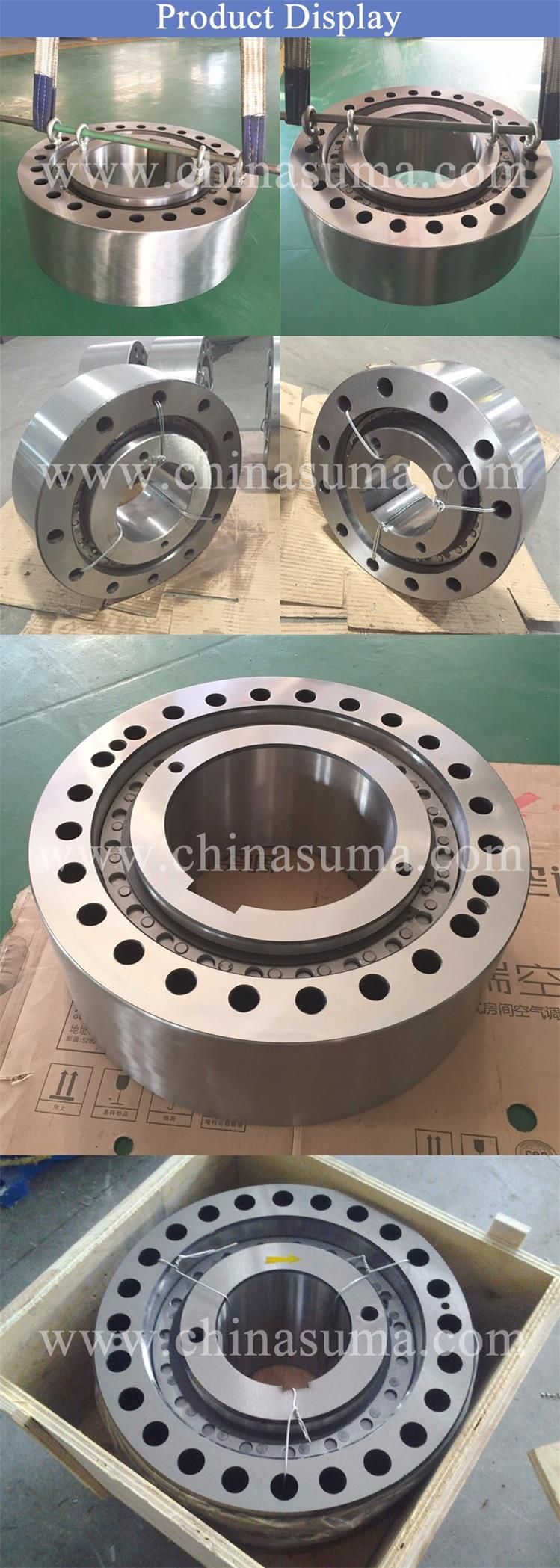

Pictures

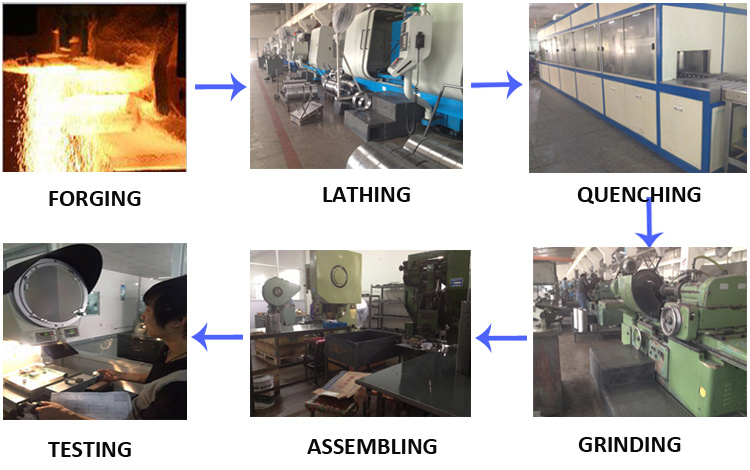

Production Flow
