Backstop Clutch (Cam Clutch) (AL...KMSD2)
FeatureType AL..KMSD2 is a roller type freewheel, selfcontained, sealed and bearing supported, using two
160.. series bearings. Unit is delivered oil lubricated. This combination is used as overrunning clutch as shownoverleaf.

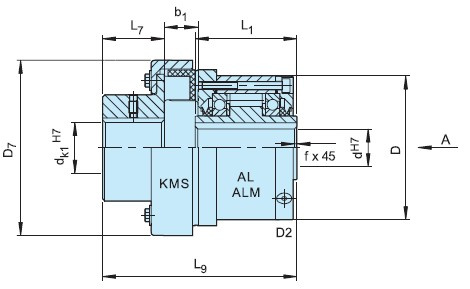

In this design, a standard AL freewheel is connected to a KMS flexible coupling for in-line mounting. The KMS type is a rugged coupling, economical and suitable for many applications. D2 cover is used to close the unit. It is equipped with two screws for oil filling, drain and level.
We recommend the unit is supplied assembled.Please specify inner race direction of rotation seen
from the D2 flange. Refer to manufacturer's catalogue to check coupling selection.Type | Size | | | Overrunning speeds | | Weight |
AL..KMSD2 | dH7 | KMS | TKN | nimax1) | namax2) | dK1H7 | D | L 1 | D7 | L7 | L9 | b1 | |
[mm] | | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] |
12 | 4 | 50 | 2500 | 6000 | 7...35 | 62 | 42 | 78 | 40 | 100 | 18 | 2.1 |
15 | 6.3 | 79 | 1900 | 6000 | 12... 40 | 68 | 52 | 90 | 45 | 116 | 20 | 2.7 |
20 | 10 | 125 | 1600 | 5600 | 10... 45 | 75 | 57 | 117 | 48 | 123.5 | 17 | 3.8 |
25 | 10 | 125 | 1400 | 4500 | 10... 45 | 90 | 60 | 117 | 48 | 126.5 | 17 | 4.4 |
30 | 16 | 200 | 1300 | 4100 | 10... 50 | 100 | 68 | 129 | 52 | 140 | 19 | 5.9 |
35 | 25 | 313 | 1100 | 3800 | 15... 55 | 110 | 74 | 134 | 57 | 155 | 22 | 8.1 |
40 | 40 | 500 | 950 | 3400 | 20...60 | 125 | 86 | 155 | 61 | 173 | 26 | 11.4 |
45 | 63 | 788 | 900 | 3200 | 20...70 | 130 | 86 | 175 | 67 | 186 | 30 | 13.3 |
50 | 100 | 1250 | 850 | 2800 | 25...75 | 150 | 92 | 196 | 75 | 208.5 | 35 | 19.1 |
55 | 100 | 1250 | 720 | 2650 | 25...75 | 160 | 104 | 196 | 75 | 216.5 | 35 | 20.4 |
60 | 160 | 2000 | 680 | 2450 | 30...80 | 170 | 114 | 223 | 82 | 243 | 41 | 27.1 |
70 | 250 | 3125 | 580 | 2150 | 35...90 | 190 | 134 | 252 | 89 | 277.5 | 47 | 40.4 |
80 | 400 | 5000 | 480 | 1900 | 45... 100 | 210 | 144 | 290 | 97 | 305 | 56 | 57 |
90 | 630 | 7875 | 380 | 1700 | 60... 120 | 230 | 158 | 330 | 116 | 346.5 | 64 | 87 |
100 | 1000 | 12500 | 350 | 1450 | 75... 140 | 270 | 182 | 378 | 140 | 386 | 75 | 131 |
120 | 1600 | 20000 | 250 | 1250 | 90... 160 | 310 | 202 | 432 | 160 | 430 | 85 | 196 |
150 | |
200 | On Request |
250 | |
ALM.. KMSD2 | 25 | 16 | 200 | 1100 | 2800 | 12... 50 | 90 | 60 | 117 | 52 | 132.5 | 19 | 4.4 |
30 | 25 | 313 | 1000 | 2500 | 15... 55 | 100 | 68 | 129 | 57 | 150 | 22 | 5.9 |
35 | 40 | 500 | 900 | 2400 | 18... 60 | 110 | 74 | 134 | 61 | 163 | 26 | 8.1 |
