Nt Low Voltage Fuse and Base

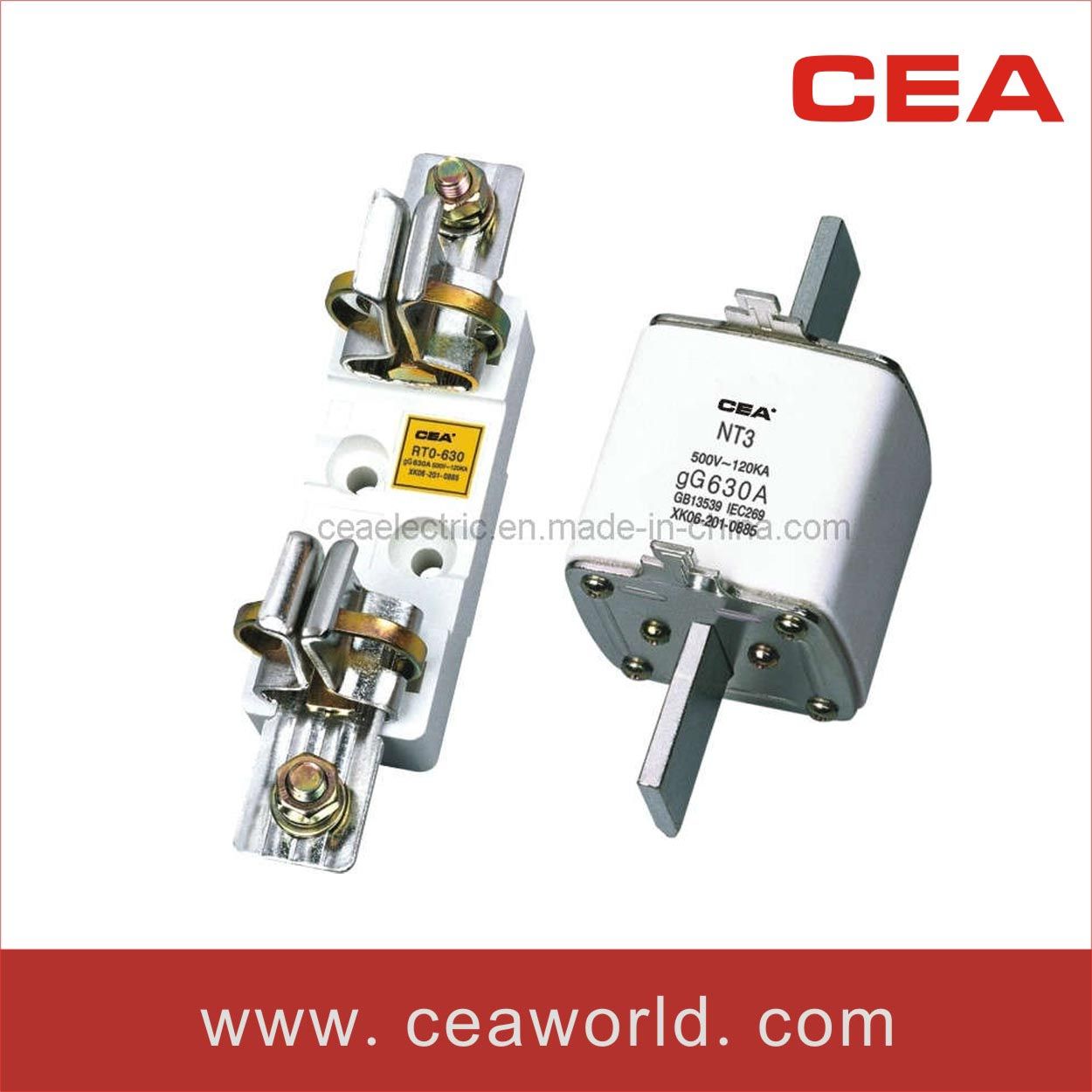

Name: Nt Low Voltage Fuse and Base
Brand: ibuyautoparts.com
SKU: 690022345
Availability: InStock
Rating: 4.4 (24 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

It is applicable indusrtial electrial distributing installation of AC50Hz(or60Hz)rated voltage 500/690V and 400V, rated current 1250A and below. It is provided with the fenction of the protection against overload or short eircuit.

The Product conforms to IEC269 and VDE0636 standards with all of the rating at the world advanced level.
NT Fuse bases
Rated Voltage: Up to 690V AC
Rated current up to: 1250A
Standard specifications: EN IEC60269-2-1

NT Fuse bases
Rated Voltage: Up to 690V AC
Rated current up to: 1250A
Standard specifications: EN IEC60269-2-1

Certificate: CE SONCAP

type	fuse link rated current(A)	rated voltage(V)	rated power loss(W)	weight(kg)	fuse base type	rated current(A)	weight(kg)
NT00C	2 4 6 10 16 20 25 32 35 40 50 63 80 100	500 690	0.41 0.62 0.81 1.08 1.60 1.81 2.31 3.07 3.17 4.05 4.25 4.70 5.70 7	0.15	sist101	160	0.2
NT0	10 16 20 25 32 35 40 50 63 80 100 125 160	500 690	1.42 2.45 2.36 2.7 3.74 4.3 4.7 5.5 6.9 7.6 8.9 10.1 15.2	0.2	sist101	160	0.32
NT1	80 100 125 160 200 224 250	500 690	6.2 7.5 10.2 13 15.2 16.8 18.3	0.36	sist201	250	0.8
NT2	125 160 200 224 250 315 350 400 415	500 690	6.9 11.5 15 16.6 18.4 21 19.2 24.5 26 21.7	0.65	sist401	400	1.2
NT3	355 400 425 500 630	500 690	22.7 26.8 28.9 32 40.3	0.85	sist601	630	1.5
NT4	800 1000	380	62 75	1.95	sist1001	1000	3.45

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Arc-Extinguishing Medium:	Air

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

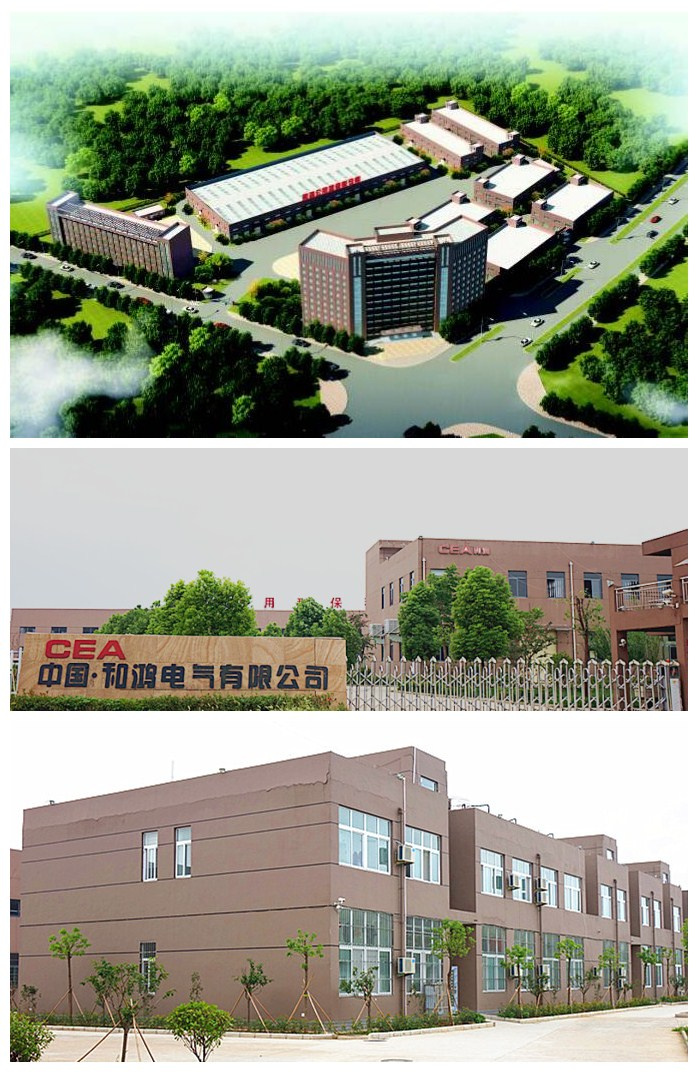

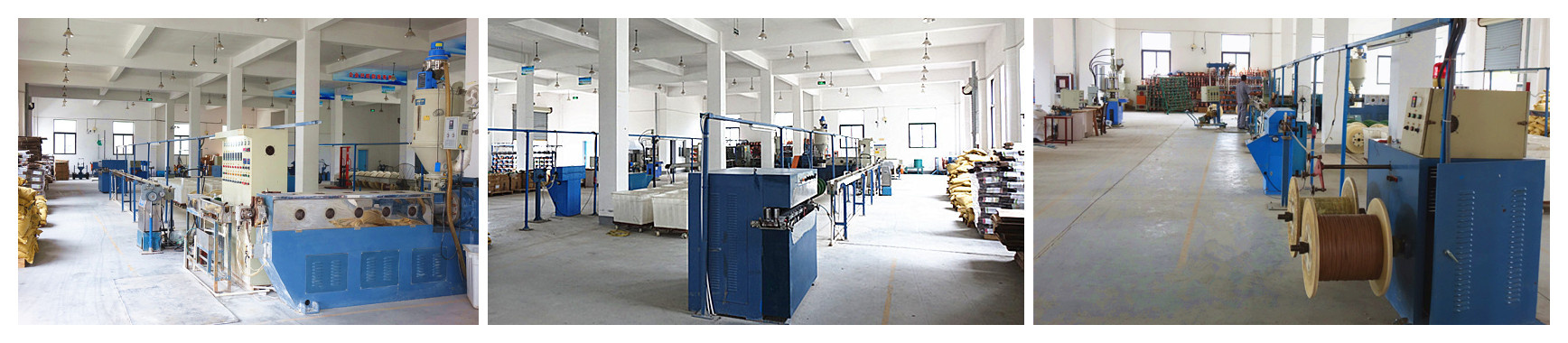

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
