Name: Rg Fuse Holder with Good Price
Brand: ibuyautoparts.com
SKU: 690072775
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1. Exllent manufacturer and exporting many years.
2. IEC269 standard
3. Protection against overload and short circuit
4. 660VAC, 50/60Hz

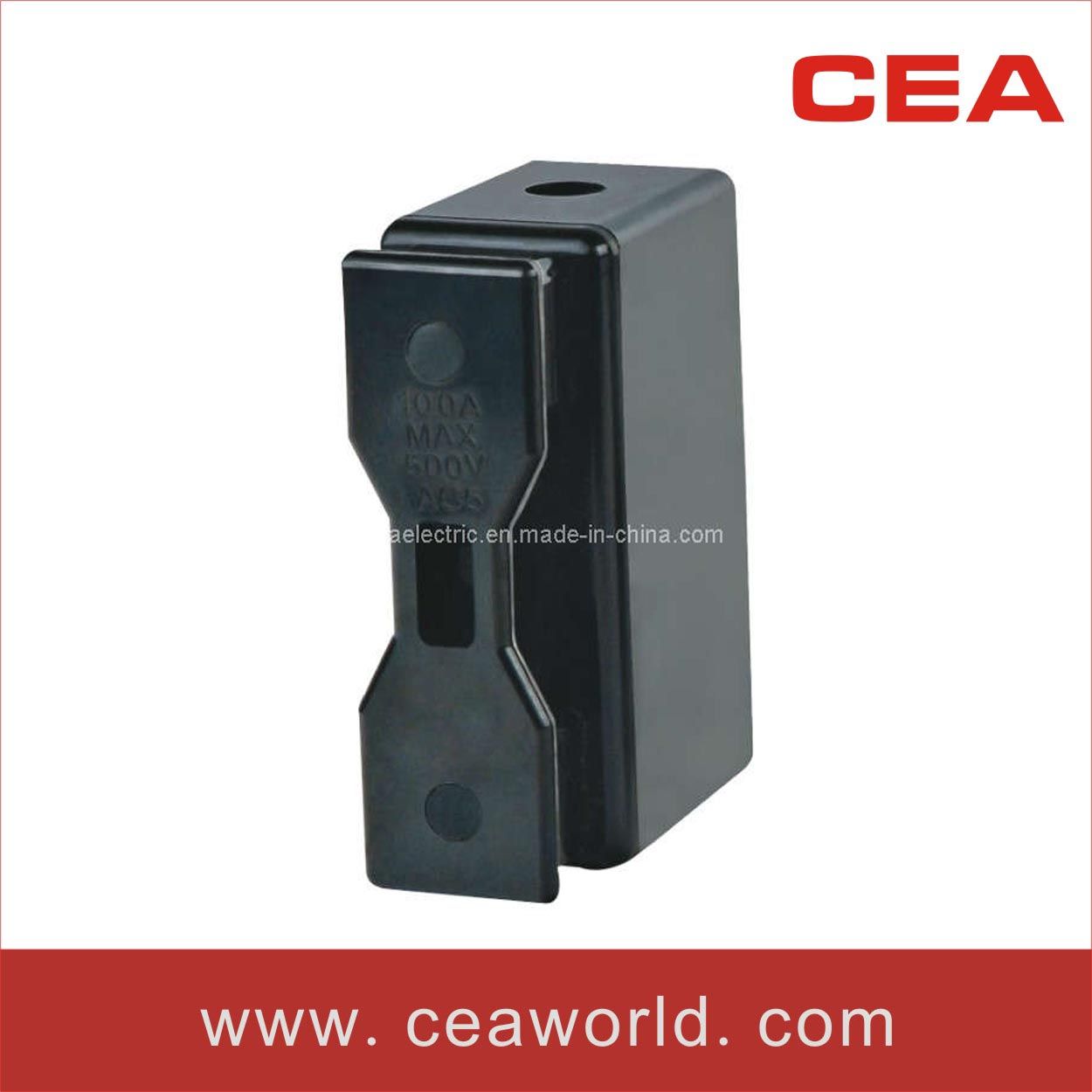

RG Series Fuse Holders are formed with the fuse supporter (fuse base) and the fuse carrier (handle). They are designed for working at a rated voltage up to 660VAC, 50/60Hz, the rated thermal current is up to 100A. The products comply with IEC269 standard. They are widely used for protection against overload and short circuit in power distribution systems, and can also be used for power main disconnecting.

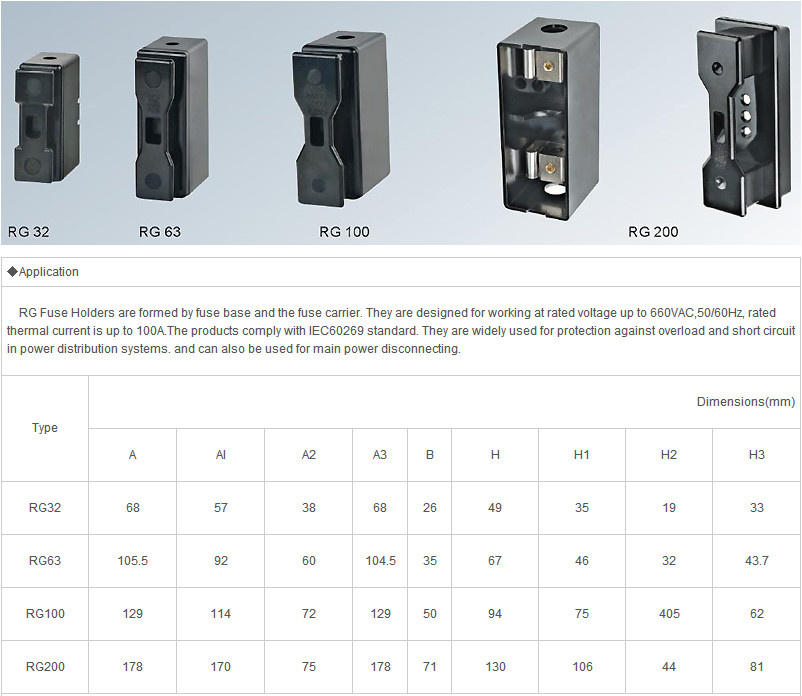

type	Dimentions(mm) A	A1	A2	A3	B	H	H1	H2	H3
RG32	68	57	38	68	26	49	35	19	33
RG63	105.5	92	60	104.5	35	67	46	32	43.7
RG100	129	114	72	129	50	94	75	40.5	62
RG200	178	170	75	178	71	130	106	44	81

Prod Model:	RG 100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Arc-Extinguishing Medium:	Air
Certification:	CE,CCC
Type:	Fuse

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

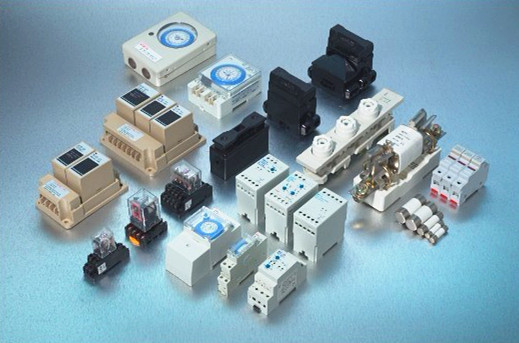

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
