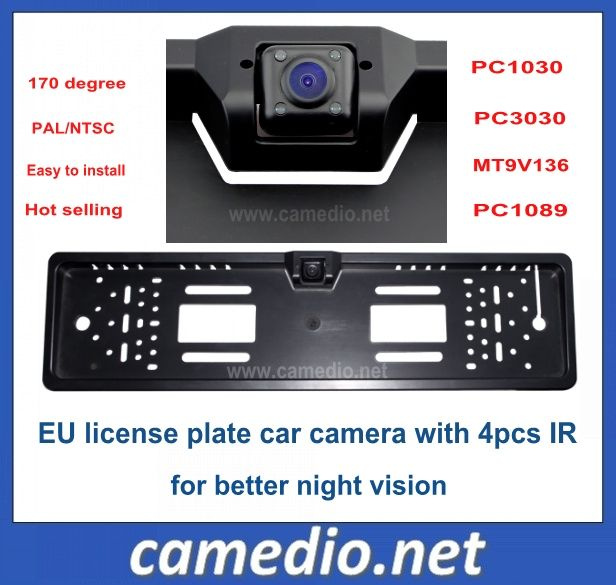

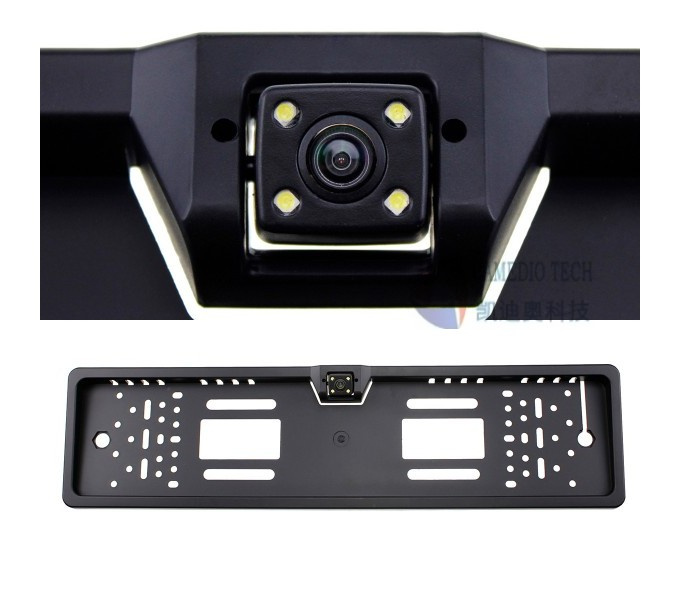

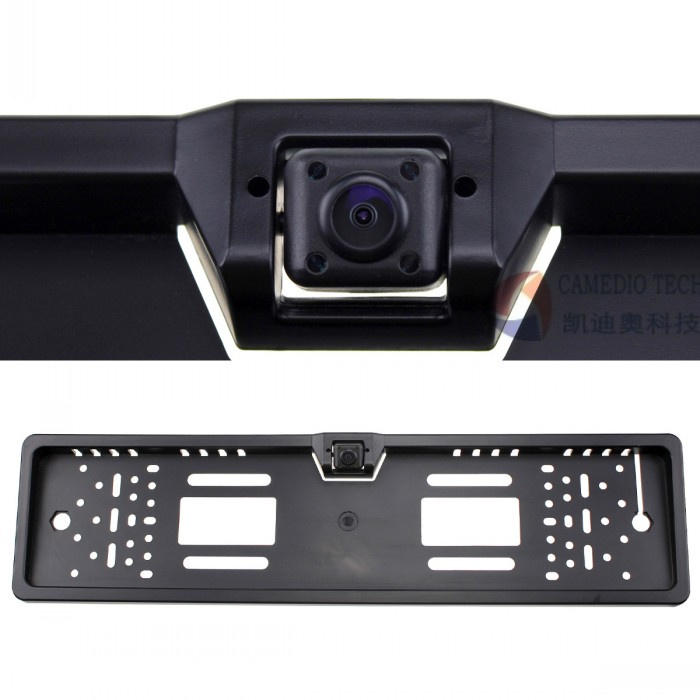

European license plate car camera with 4pcs IR ,
EU license plate rear view camera ,
Size:55*14*3cm ,
black and silver optional,
different kinds of image sensors optional PC7070/PC1089 CCD
Key features:
1. Easy installation and assembly
2.High-resolution , high sensitivity and high signal to noise ratio
3.Super low-light, high-quality imaga capabiities .
4.DSP digital chip , image clarity without distortion ,
5.Shockproof , waterproof , anti-interference and resistance to high/low temperature
Specfication:
Europe license plate car backup camera
* Primary Function: Waterproof License Plate Camera
* Image Sensor: 1/4" Color CMOS/CCD
* Waterproof: YES, IP68
* TV System: PAL/NTSC
* Minimum Illumination: 0.1LUX
* Lens: f=1.8mm / F = 2.0
* Pixels: 628x582
* Resolution: 420TVL
* Viewing Angle: Wide Angle 170 Degrees
* Connection: RCA
* Operating Temperature: -20 ~ +70
* Power Supply: DC12V
* Dimension Plate: 545 x 140 x 23mm (L x W x D)
Length of AV Cable: ~6M
Product Notes:
* Works with most Car Multimedia Systems and Car DVD Systems (and anything with an RCA video input)
* Automatic Monitor/Camera Feed On While Reversing
* Simple To Connect and Install
Package Contents:
* Waterproof License Plate Camera
* Car Power Wire
* RCA Video Cable
Packing information:
20pcs/carton
carton size: 58*31*50cm
G.W : 12.6KG/carton
Specifications for different image devices
Image Sensor | Color CMOS PC7070 | Color MT9V136 | Color PC1089K |
TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
Effective Pixels | 680*504Pixels | 720*576/480Pixels | 720(H)*652(V) |
Horizontal resolution | 480TVL | 480TVL | 500TVL |
Sening area | 4.08mm*3.12mm | 3.584mm*2.688mm | 3.584mm*2.688mm |
Shutter speed | 1/60-1/5000 | 1-1/10000 | 1-1/10000 |
Minimum Illumination | 0.05lUX/F=1.2(OLux with ON | 0.01Lux/F=1.2(OLux with OR ON) | 0.01Lux/F=1.2(Olux with OR ON) |
Video output | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm |
Power Supply | DC12V | DC12V | DC12V |
Operating temperature | -20°C~75°C,RH 95%MAX | -20°C~75°C,RH 95% MAX | -20°C-75°C,RH 95% MAX |
Storage temperature | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX |
Lens angle | 170° | 170° | 170° |
Waterproof | IP68 | IP68 | IP68 |
White Balance | auto | auto | auto |
