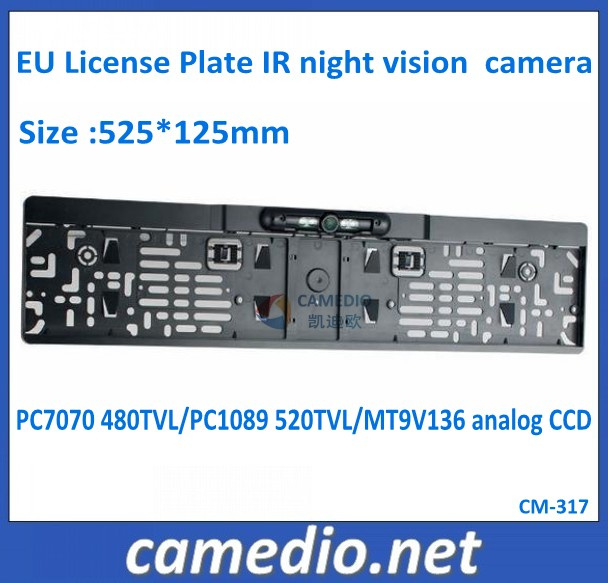

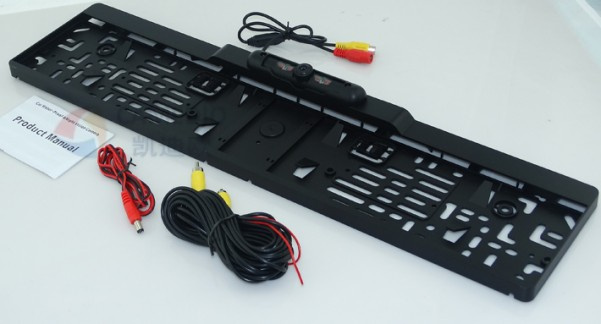

OEM HD Waterproof Color EU License Plate Frame Rear View Camera
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
1. High definition
2. Shockproof
3. Waterproof, shatterproof protection level equals to IP68K

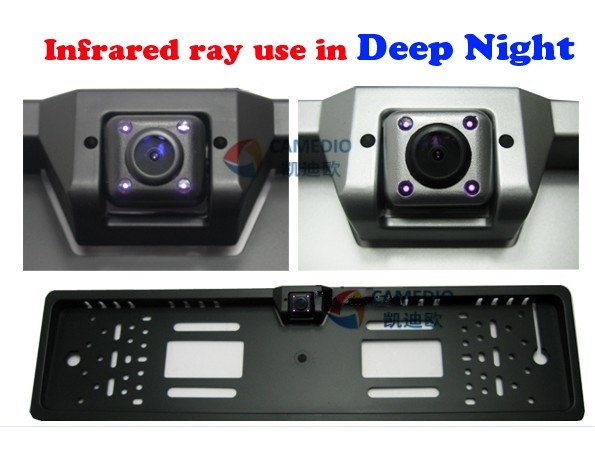

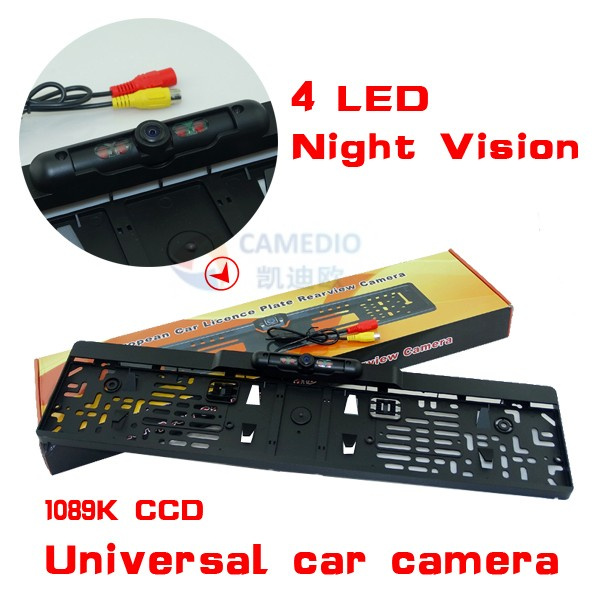

4. IR night visionFeatures:High definition
Shockproof
Waterproof, shatterproof protection level equals to IP68K
Super wide angle(135° )
Night vision available, day/night sensor for automatic adjustment
Flexible installation: Can be mounted on rear, front, or either side of vehicles
Camera angle is adjustable
Performs in rugged conditions. Operating temperature: -20º C +70º C
Mirror / Real optional
Reversing grid is optional
Three working positions: Protection, reverse, rear view
CCD chips available
Hidden-type, specially designed for car rear view system
Fixed spring adds convenience and reliability insatllationElectrical Parameters:Input voltage: 12V
Input current: 80MA-120MA
Average power consumption: <1W
Environmental Parameter
Operating humidity: -20~+75(RH95%, Max)
Storage humidity: -30~+85(RH95%, Max)
The IP rating: IP68Optical Parameter:Image sensor: CMOS
Signal system: Analog signals
TV line: 480line
Effective pixels: 648*488
Scanning system: 1/50Hz, 1/60Hz
Sensing area: 5.5um*5.5um
Minimum illumination: 0.2lux
Night vision distance: 5m-10m
Lens: 1.7mm
Signal to noise ratio: >48db
Shutter speed: 1/10000second
Video output: 1.0vp-p. 75ohm
Specifications for different image devices| A. PC1030 (parking guide line) |
| Image device: PC1030 | Resolution: 420 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Video output: 1.0 VP-P,75 OHM | Operation temperature: -20ºC - 70ºC,RH 95% MAX |
| Effective pixels: 648×488 pixels | Gamma consumption: 0.45 | Storage temperature: -40 - 85,RH 95% MAX |
| Electronic Shutter : 1/60-1/5000 | White balance: auto | Waterproof: IP67/68 |
| |
| B. MT9V136 (parking guide line) |
| Image device: MT9V136 | Resolution: 480 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Video output: 1.0 VP-P,75 OHM | Operation temperature: -20ºC-70ºC,RH 95% MAX |
| Effective pixels: 720x576/480 pixels | Gamma consumption: 0.45 | Storage temperature: -40ºC-85ºC,RH 95% MAX |
| Electronic Shutter: 1-1/10000 | White balance: auto | Waterproof: IP67/68 |
| |
| C. PC1089 (parking guide line) |
| Image device: PC1089 | Resolution: 520 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Dark Signal: 46.7 mV/sec @60ºC | Operation temperature: -40ºC-70ºC,RH 95% MAX |
| Effective pixels: 765×652 pixels | Sensitivity: 9.67 V/Lux.sec | DynamicRange: 63.7 dB |
| Scanning system: 2:1 interlace | Waterproof: IP 67/68 | SNR: 46.4 dB |
| |
| D. Color Sony CCD |
| Image device: 1/3 "Sony CCD | Resolution: 480 TV lines | Power supply: DC 12V |
| TV System: PAL/NTSC | Sensing Area: 4.9X3.7 mm | Horizontal Sync.Frequency: 15.625/15.734 KHz |
| Video Output: 1Vp-p,75Ohm | S/N ratio : Better than 48dB | Pin lens: F=1.9mm/F=2.0 mm |
| Waterproof: Ip67/68 | Operating Temperature( o C): -20~+75(RH95% Max.) | Angle of view: 170 ° |
| Prod Model: |
CM-317 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor Available: |
PC1030/PC7070/Mt9V136/PC1089 |
| Camera Degree: |
170 Degree |
| IR Lights: |
4 |
| Waterproof: |
Yes |
| TV System: |
PAL/NTSC |
| Minimum Illumination: |
0.1lux |
| Pixels: |
628X582 |
| Resolution: |
420tvl/480 Tvl/520tvl Optional |
| Warranty: |
13 Months |
| Interface: |
RCA |
| Chip: |
CMOS |
| Waterproof Grade: |
IP68 |
| Definition: |
480TV Lines |
