Newest Original Icar 3 WiFi Elm327 OBD Professional Solution WiFi Version

Prod Model:	iCar 3 ELM327
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Elm327 Vgate Icar 3 WiFi
Applicable Models:	Supports Obdii Protocols
Item Type:	Vgate Icar 3
Model Number:	Icar 3 WiFi
Series:	Code Reader
Lead Time:	1days
Warranty:	12 Months
Feature:	Code Reader
Keywords:	Scanner Can Protocol Car Diagnostic
Performance:	Stable and Strong
Certification:	CE
Update Method:	CD

Product Description

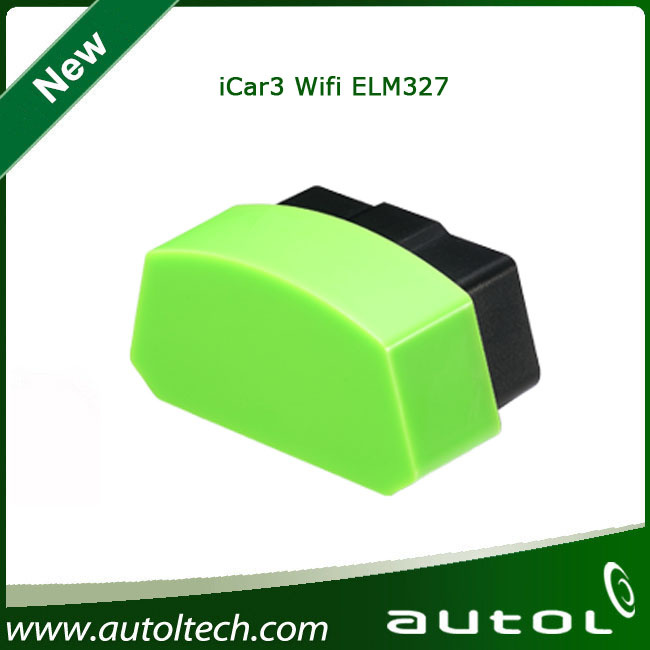

ICar 3 ELM327 OBD professional solution Wifi version

The device is a small adapter that plugged into the vehicle OBD-connector.
On WIFI, it connects to any computer, tablet or smartphone, With associated diagnostic procedures. It cansupport Android system and IOS.


Features:

* Wireless Rate: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
* Channle: 1-14
* Frequency range: 2.4-2.4835G
* Send Power: 15~18DBM
* Interface: UART, GPIO
* Antenna Type: External antenna
* Distance: 100~300m(different situation)
* Small size, compact structure. Plug and never unplug
* Stable wireless connection
* No wires or batteries (adapter is powered by the diagnosis size sockets)
* Stop communication, wait half an hour, auto sleep
* Supports all OBDII protocols
* The adapter uses the fastest and most reliable ARM chips


Function

* Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
* Measure the fuel consumption.
* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure,
Coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen
Sensors, air intake temperature, and more.
* Turn off the MIL (signal Check Engine).
* Download data to external media in a variety of formats for later printing.
* Record various parameters, display graphics in real time, and more.


With iCar3 you will be able to perform a complete computer diagnostics car and even to correct minor
Faults without resorting to service stations.


ICar 3 scantool is a high-quality automotive scanning tool, supports all OBD-II

Protocols:

0. Automatic
1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW(10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP(5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP(fast init, 10.4 Kbaud)
6. ISO15765-4 CAN(11bit ID, 500 Kbaud)
7. ISO15765-4 CAN(29bit ID, 500 Kbaud)
8. ISO15765-4 CAN(11bit ID, 250 Kbaud)
9. ISO15765-4 CAN(29bit ID, 250 Kbaud)
A. SAE J1939 CAN(29bit ID, 250*Kbaud)
B. USER1 CAN(11*bit ID, 125*Kbaud)
C. USER2 CAN(11*bit ID, 50*kbaud)
*default settings(user adjustable)
