| Prod Model: |
OEM 228000-5860 |
| Teeth: |
10t |
| Rotation: |
Cw |
| Power: |
2.0kw |
| Ref Number 1: |
Str70225 |
| Ref Number 2: |
228000-5861 |
| Ref Number 3: |
280-7041 |
| Ref Number 4: |
1280006870 |
| Application 1: |
Hyster Forklift |
| Application 2: |
Caterpillar Lift Truck |
| Application 3: |
Towmotor |
Product Description

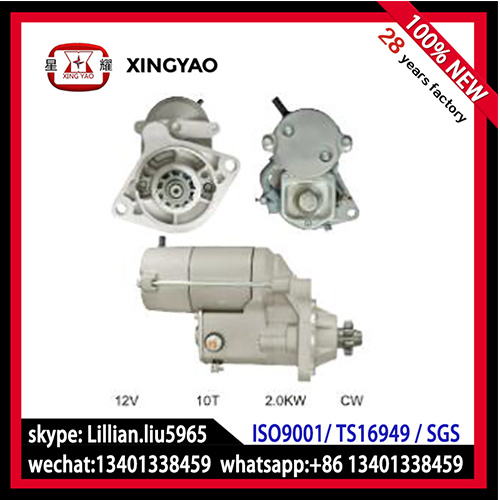

NEW STARTER HYSTER LIFT TRUCK H-30 H-40 H-40F H-50 H-50F 228000-5860
| 12V/2.0KW T:10T Rotation:CW | 228000-5860 | STR70225 | HYSTER FORKLIFT |
CATERPILLAR LIFT TRUCK A10 71-67 CONTINENTAL F-244 W/POWER SHIFT
CATERPILLAR LIFT TRUCK A12 71-67 CONTINENTAL F-244 W/POWER SHIFT
CATERPILLAR LIFT TRUCK B15 71-67 CONTINENTAL 330 DELCO SYSTEM
CATERPILLAR LIFT TRUCK B16 71-67 CONTINENTAL 330 DELCO SYSTEM
CATERPILLAR LIFT TRUCK B18 71-67 CONTINENTAL 330 DELCO SYSTEM
CATERPILLAR LIFT TRUCK B20 71-67 CONTINENTAL 330 DELCO SYSTEM
CATERPILLAR LIFT TRUCK B22 71-67 CONTINENTAL 330 DELCO SYSTEM
CATERPILLAR LIFT TRUCK B24 71-67 CONTINENTAL 330 DELCO SYSTEM
CATERPILLAR LIFT TRUCK U6 71-67 CONTINENTAL F-244 W/POWER SHIFT
CATERPILLAR LIFT TRUCK U8 71-67 CONTINENTAL F-244 W/POWER SHIFT
CATERPILLAR LIFT TRUCK V60E 91-85 PERKINS 4-236 NDENSO SYSTEM
CATERPILLAR LIFT TRUCK V80E 91-85 PERKINS 4-236 NDENSO SYSTEM
HYSTER LIFT TRUCKS H-30 71-65 CONTINENTAL G-193 DELCO SYSTEM
HYSTER LIFT TRUCKS H-40 71-65 CONTINENTAL G-193 DELCO SYSTEM
HYSTER LIFT TRUCKS H-40F 69-67 CONTINENTAL G-193 DELCO SYSTEM
HYSTER LIFT TRUCKS H-50 71-65 CONTINENTAL G-193 DELCO SYSTEM
HYSTER LIFT TRUCKS H-50F 69-67 CONTINENTAL G-193 DELCO SYSTEM
TOWMOTOR A10 71-67 CONTINENTAL F-244 W/POWER TRANS.
TOWMOTOR A12 71-67 CONTINENTAL F-244 W/POWER TRANS.
TOWMOTOR B15 67 CONTINENTAL 330 DELCO SYSTEM
TOWMOTOR B16 67 CONTINENTAL 330 DELCO SYSTEM
TOWMOTOR B18 67 CONTINENTAL 330 DELCO SYSTEM
TOWMOTOR B20 67 CONTINENTAL 330 DELCO SYSTEM
TOWMOTOR B22 67 CONTINENTAL 330 DELCO SYSTEM
TOWMOTOR B24 67 CONTINENTAL 330 DELCO SYSTEM
TOWMOTOR U6 71-67 CONTINENTAL F-244 W/POWER TRANS.
TOWMOTOR U8 71-67 CONTINENTAL F-244 W/POWER TRANS.
Replaces these part numbers:
HYSTER 1383240, 8504304
CATERPILLAR 655293
NIPPONDENSO 228000-5860, 2280005860, 228000-5861, 2280005861, 228000-5862, 2280005862, 128000-6870, 1280006870, 2807041, 280-7041
DELCO 1107335, 1109423, 1108443, 1109418, 1109439
HYSTER 2135890, 284074, 3001023, 3136101, 335867
YALE 2200071-43
CATERPILLAR 7X1057
LUCAS REMAN S9146
OEM (S): DENSO, GENERAL MOTORS, HYSTER
TYPE: OSGR
VOLTAGE: 12 VOLTS
KW: 2 KW
ROTATION: CW
TEETH/SPLINES: 10 TEETH/SPLINES
PINION/SPLINES OD: 40.8MM / 1.606IN
MOUNTING HOLE 1: 11.4MM ID UNTHREADED
MOUNTING HOLE 2: 11.4MM ID UNTHREADED
NEW OR REMANUFACTURED: NEW
APPROXIMATE WEIGHT: 11.735 LBS / 5.33 KG
We can supply following service:
1.High quality products.----100% new starters. We produce according to the original drawing or sample.
2.Best price. We are 28 years starter factory. Quality is our culture. We manager our factory by following ISO9001 and TS16949.
3.Good after-sale service. We provide 1 year warranty for the starters.
4.Customers' specifications(OEM) are welcome.
5. We can also design and develop according to customer's request.
6 . Packing detail: each product will be packed in individual box with label of all information (such as part number, part name in English or Spanish or Russian or Arabic and Chinese) on it, or as per to your request.
Experience:
Established in 1988, concentrating on starters for 28 years.
Location:
Located at Changzhou, Jiangsu,China. (Nearby Shanghai)
Main Products :
Professional in the production of car starters, diesel engine starters and starter parts.
Main Market:
Her products are supplying to many big diesel engine factories at home, such as Changchai, Quanchai, Jiangdong etc; also exporting to Southeast Asia, South America,Middle East, East Europe and other areas.
Strong Production R&D Level:
More than 300 employees, 18 engineers, 20 sets experimental installation, 60 sets quality inspection equipments. Yearly capacity more than 1,000,000 sets.
Certificates:
ISO9001, TS16949 quality system. SGS certified company.
More products we are producing:
| 12V/2.0KW T:9T Rotation:CW | 2-21193-ND | JS552 STR5001 16739 | CHEVROLET GMC ISEKI OPEL |
| 12V/2.0KW T:11T Rotation:CW | 028000-8760 | STR5003 18151 | RENAULT VI TOYOTA VW |
| 12V/2.0KW T:9T Rotation:CW | 128000-0040 | JS365 STR5005 31354 | FORD SUSUKI KIA MAZDA |
| 12V/2.0KW T:10T Rotation:CW | 28100-54380 | JS1089 | TOYOTA, TOYOTA TRUCK,VOLKSWAGEN |
| 12V/2.0KW T:12T Rotation:CW | 028100-54380 | | |
| 12V/2.0KW T:9T Rotation:CW | 228000-4830 F8RU-11000-AA WL81-18-400 | JS1352 | FORD MAZDA |
Welcome to visit our factory.
Welcome to send inquiry to us.
Jiangsu Xingyao Motor Co. Ltd
OEM factory for Changchai, Jiangdong, Quanchai big diesel engines.
No 1 for single cylinder diesel starter development and production.
Advantages:
Material Control:
1. We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.
2. Production Equipment:
A. The armature and stator are produced by automatic equipment.
B. Inspection equipment:
We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.
Armature, stator, solenoid switch and the starter assembly are all 100% inspected.
3. Whole set laboratory equipment
We have whole set laboratory equipment for the starter performance test.
4. Market share:
A. We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.
B. Experiences:
C. Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.
9. After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
10. Competitive price ------
Over 90% parts produced by our own factory.
Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
11. Warrenty: 1 year warranty
