Product Description :
| OEM | Volt | Teeth | Rotation | Power | Application |

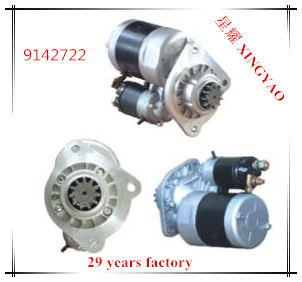

| 9142722 | 12 | 11 | CW | 2.7kw | BALCANCAR
VALTRA VALMET CARAVEL
DESTA DIMEX ZETOR |
Cross References:
ZETOR 6918.5771 ELMOT R11a ISKRA 11.130.179
Application:
BALCANCAR VALTRA VALMET CARAVEL DESTA DIMEX ZETOR
Quality Guarantee:
- Maintaining the effectiveness of the quality management system, resisting deviations from the quality policy and will be seriously punished in any time if it happens .
--- For customer service, we will give reply within 24 hours for customers (excluding holidays).
--- Offering complete quality assurance within the quality guarantee period.
We can supply following service:
1.High quality products.----100% new starters. We produce according to the original drawing or sample.
2.Best price. We are 28 years starter factory. Quality is our culture. We manager our factory by following ISO9001 and TS16949.
3.Good after-sale service. We provide 1 year warranty for the starters.
4.Customers' specifications(OEM) are welcome.
5. We can also design and develop according to customer's request.
More Types of Starter Motors We Are Producing:
| | PARAMETER | OEM | REF NUMBER | APPLICATION |
| 1 | 12v/2.7kw Z:T9 Rotation:CW | 9142801 | RENAULT 7700519797 FENDT X830100006 BOSCH 001359072 | RENAULT AGRI FENDT FARMER 103/103S |
| 2 | 12v/2.7kw Z:T10 Rotation:CW | 9142780 | BELARUS 2407 3708 000 KZATE 24.3708 ISKRA 11.130.436 | BELARUS MTZ FARMER F PRONAR NAREW |
| 3 | 12v/2.7kw Z:T9 Rotation:CW | 9142802 | BOMAG 05710901 BOSCH 0001358033 DEUTZ 1178026 ELMOT 806012000.0 FENDT X 830100001 RENAULT 60 00 102 270 | DEUTZ-FAHR |
| 4 | 12v/2.7kw Z:T10 Rotation:CW | 9142740 | ADI DEM1127 BOSCH 0001362302 ISKRA 11.130.605 JOHN DEERE RE503093 LUCAS LRS2385 PAL MAG 443115142740 | JOHN DEERE SPRAYER 6700 Series |
| 5 | 12v/2.7kw Z:T9 Rotation:CW | 9142765 | DAVID BROWN (CASE) K308650 FORD NEW HOLLAND D1 NN 11000 A LESTER 17653 | AVELING BARFORD DC Range FORD NEW HOLLAND RELIANCE MERCURY DAVID BROWN (CASE) |
| 6 | 12v/2.7kw Z:T9 Rotation:CW | 9142805 | ADI DEM1137 BOSCH 0001367001 HELLA CS 503 VALEO 436077 ISKRA 11.130.704 | CASE |
| 7 | 12v/2.7kw Z:T11 Rotation:CW | 9142722 | ZETOR 6918.5771 ELMOT R11a ISKRA 11.130.179 | BALCANCAR VALTRA VALMET CARAVEL DESTA DIMEX ZETOR |
| 8 | 12v/2.7kw Z:T10 Rotation:CW | 9142783 | | JUMZ |
| 9 | 12v/2.7kw Z:T10 Rotation:CW | 9142702 | ADI DEM1607
PAL MAG 446115144702 | PERKINS 1004.4 engine PERKINS 6.354 engine DAEWOO-AVIA BARBER MANITOU NEW HOLLAND |
| 10 | 12v/2.7kw Z:T10 Rotation:CW | 9142743 | ADI DEM1607
PAL MAG 446115144702 | URSUS 4390 engine 4410 engine |
| 11 | 12v/2.7kw Z:T10 Rotation:CW | 9142764 | BOSCH 0001362084 ISKRA IS0632 LUCAS LRS301 URSUS 7006119M1 MASSEY-FERGUSON 3597371R2 | MASSEY-FERGUSON IMT URSUS |
| 12 | 12v/2.7kw Z:T11 Rotation:CW | 9142742 | LUCAS LRS 304
URSUS 80350911
ZETOR 64.942.801 | URSUS ZETOR |
| 13 | 12v/2.7kw Z:T9 Rotation:CW | 9142723 | DMP LUBLIN 2.62.034 ELMOT R11c | Engine 4C90 4CT90 4CT90-1 DAEWOO LDV CONVOY GAZ GAZELA |
| 14 | 12v/2.7kw Z:T10 Rotation:CW | 9142745 | ADI DEM1437 | |
| 15 | 12v/2.7kw Z:T10 Rotation:CW | 9142720 | ADI DEM1377 BOSCH 0986018151 ISKRA IS0526 LUCAS NSB529 PERKINS 2873A102 | CASE INTERNATIONAL 1820 HY-MAC Crawler Excavator 1080 INGERSOLL-RAND 140SL JCB Fastrac MARSHALL-Tractors MF |
| 16 | 12v/2.7kw Z:T10 Rotation:CW | 9142741 | BOSCH 0986013690 ISKRA IS0179 | SISU DIESEL URSUS C-330M/335 VALTRA VALMET 1100 |
| 17 | 12v/2.7kw Z:T9 Rotation:CW | 9142744 | BOSCH: 0001359071 FIAT:2022518 ISKRA:IS0688 LUCAS:LRS 763 VALEO:455 545 | FIAT-ALLIS FL 4C/6/9 FIAT 1000 serie 1300DT FIAT 1300DT/S DTS FIAT 800 serie 850 DT VOLVO B 6F VOLVO F 609 |
| 18 | 12v/2.7kw Z:T10 Rotation:CW | 9142700 | BOSCH 0001362312 ELMOT R11a
HC-PARTS CS395 ISKRA 11.130.533 JOHN DEERE AL 110503 | JOHN DEERE |
| 19 | 12v/2.7kw Z:T9 Rotation:CW | 9142680 | BOSCH 0001359021 FIAT 4699705 HELLA CS240 VALEO 436073 | FIAT IVECO NEW HOLLAND |
| 20 | 12v/2.7kw Z:T11 Rotation:CW | 9142602 | BOSCH 0001314011 HC-PARTS CS996 ISKRA IS0521 SAME DEUTZ-FAHR 296190800 | HUERLIMANN H 305 SAME DELFINO LAMBORGHINI 554-50 STEYR 40 LAMBORGHINI C 352 SAME ARGON |
Company Profile:
Experience:
Established in 1988, concentrating on starters for 28 years.
Location:
Located at Changzhou, Jiangsu,China. (Nearby Shanghai)
Main Products :
Professional in the production of car starters, diesel engine starters and starter parts.
Main Market:
Her products are supplying to many big diesel engine factories at home, such as Changchai, Quanchai, Jiangdong etc; also exporting to Southeast Asia, South America,Middle East, East Europe and other areas.
Strong Production R&D Level:
More than 300 employees, 18 engineers, 20 sets experimental installation, 60 sets quality inspection equipments. Yearly capacity more than 1,000,000 sets.
Certificates:
ISO9001, TS16949 quality system. SGS certified company.
Payment
Welcome to visit our factory.
Welcome to send inquiry to us!
Jiangsu Xingyao Motor Co. Ltd
OEM factory for Changchai, Jiangdong, Quanchai big diesel engines.
No 1 for single cylinder diesel starter development and production.
Advantages:
Material Control:
1. We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.

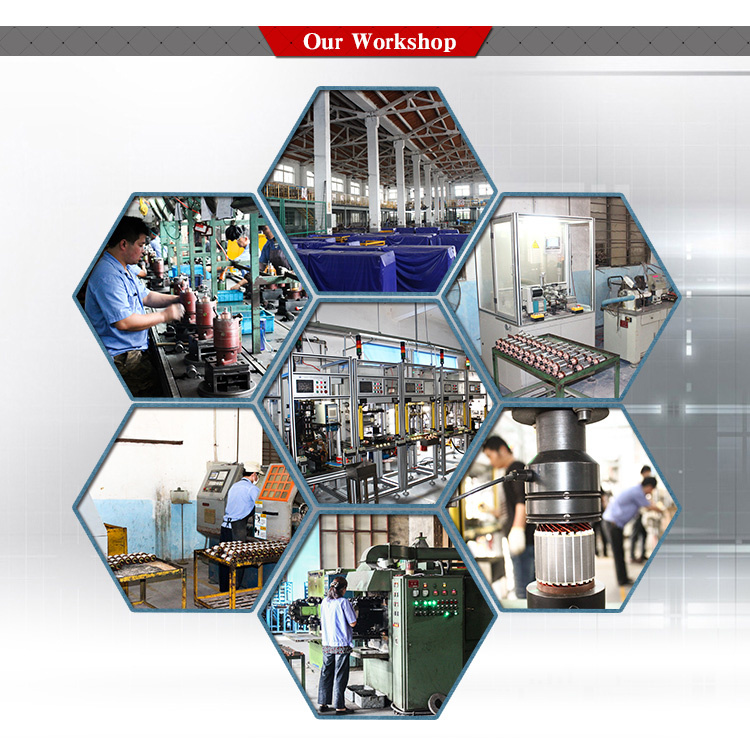

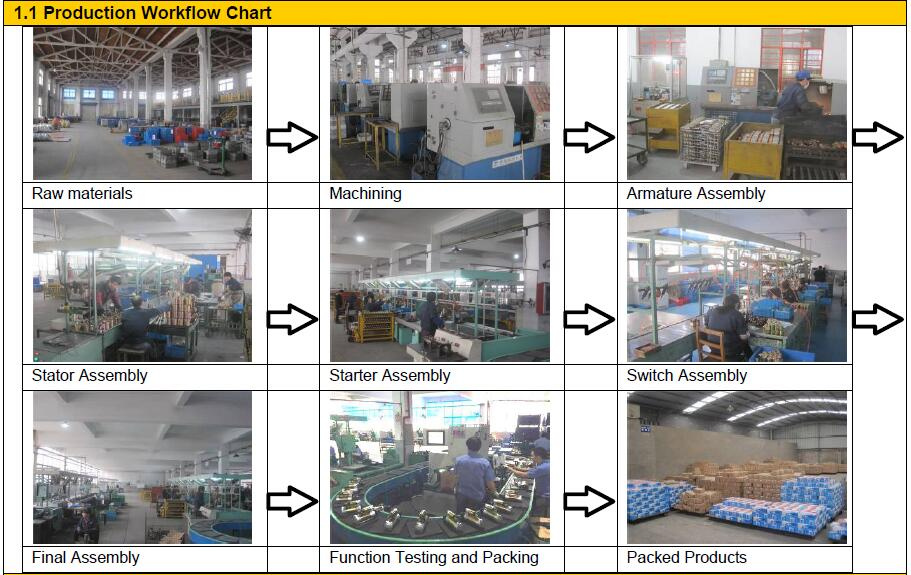

2. Production Equipment:
A. The armature and stator are produced by automatic equipment.
B. Inspection equipment:
We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.
Armature, stator, solenoid switch and the starter assembly are all 100% inspected.
3. Whole set laboratory equipment
We have whole set laboratory equipment for the starter performance test.
4. Market share:
A. We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.
B. Experiences:
C. Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.
9. After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
10. Competitive price ------
Over 90% parts produced by our own factory.
Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
11. Warrenty: 1 year warranty
