New Kw901 Konnwei Elm327 OBD2 Wireless Bluetooth Car Engine Automotive Fault Diagnostic Scanner Detector

KW901 ELM327 OBD II Wireless Bluetooth Car Engine Fault Diagnostic Scanner Interface for Android Windows

Features:
Condition:New
Compatability:OBD2
Country/Region of Manufacture: China
Supply voltage(VDD):12V
Work temperature range: -20 ~ +70degree
Storage temperature range:-40 ~ +125degree
RF sensitivity(Basic Rate): -85db
Modulation Mode:GFSK
Frequency Range:2402 ~ 2480MHZ
Transmission Range:10M
Bluetooth Profile:SPP
UART Params:38400,8,n,1

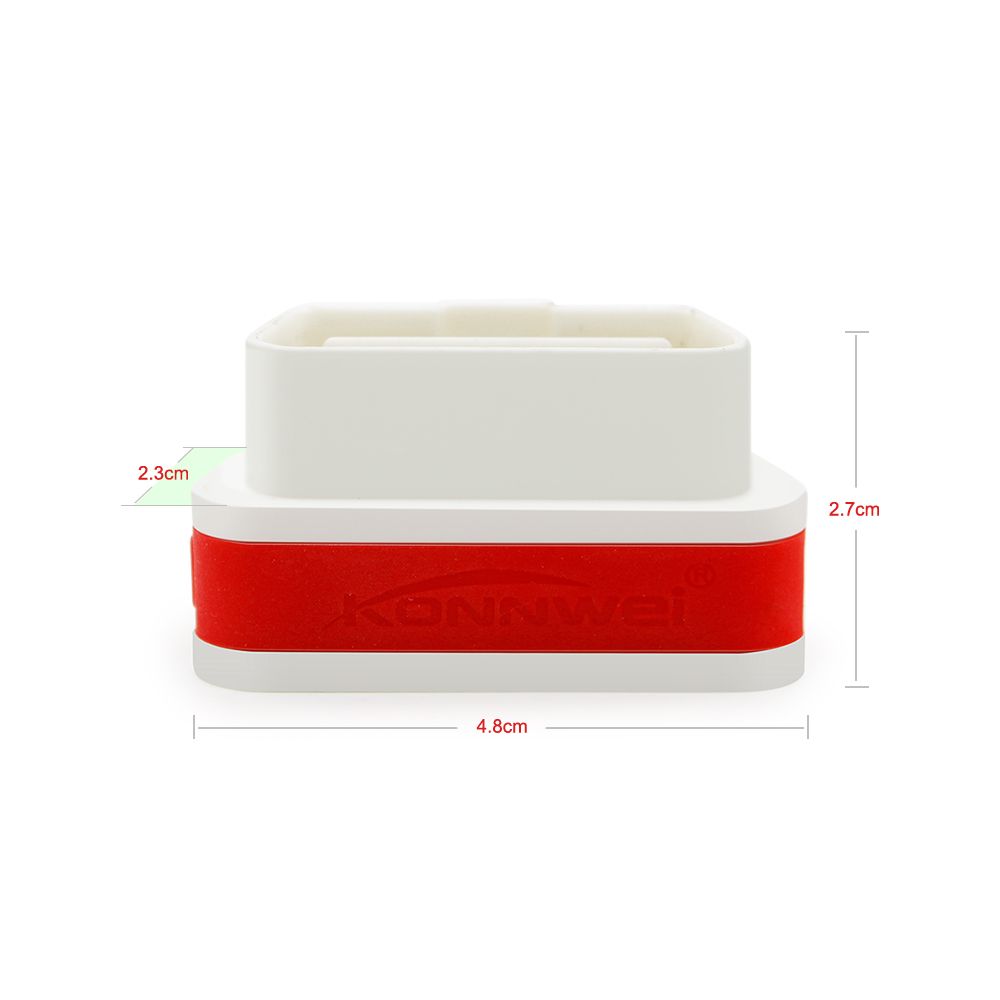

Small size, compact structure. Plug and never unplug
Stable wireless connection
No wires or batteries (adapter is powered by the diagnosis size sockets)
Stop communication, wait half an hour, auto sleep
Supports all OBDII protocols
The adapter uses the fastest and most reliable ARM chips

With kw901 you will be able to perform a complete computer diagnostics car
and even to correct minor faults without resorting to service stations.
kw901 scantool is a high-quality automotive scanning tool, supports all OBD-II

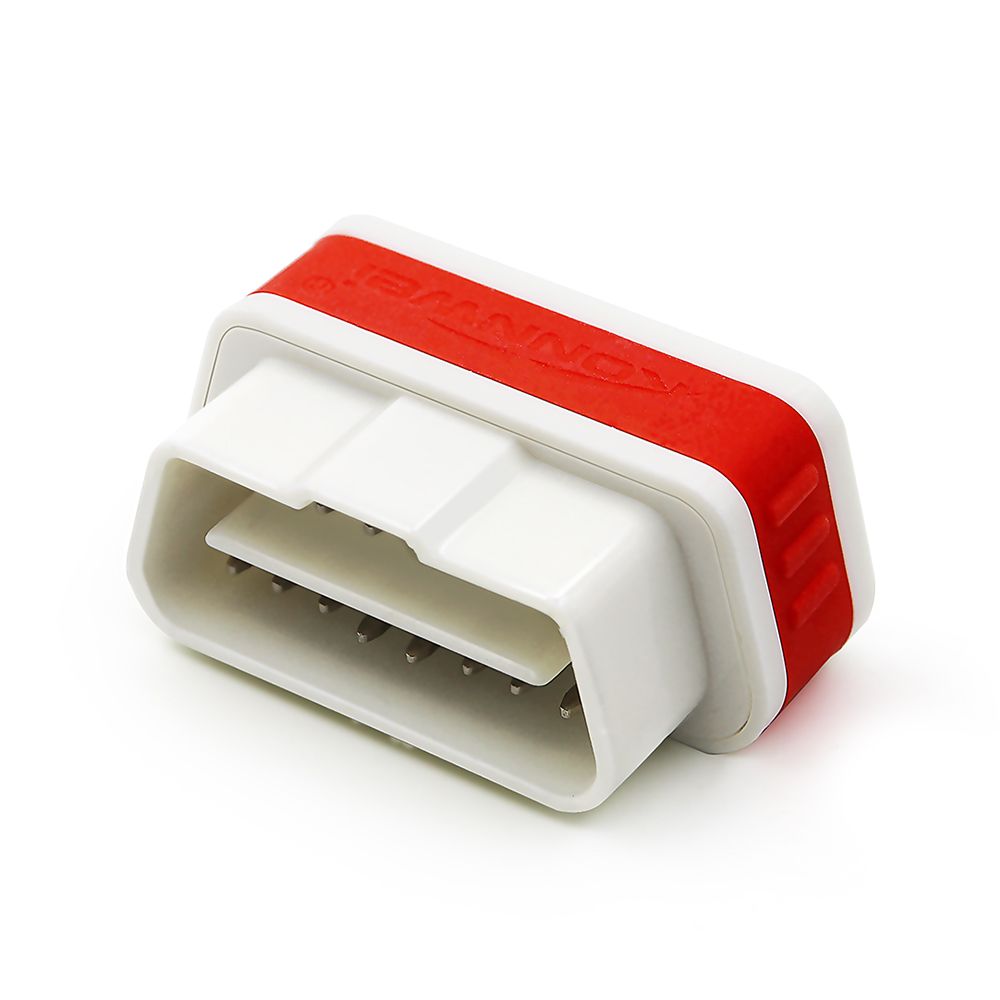

The device is a small adapter that plugged into the vehicle OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone, With associated diagnostic procedures . Doing these simple operations, you will be able:
Measure the fuel consumption.
Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
Turn off the MIL (signal Check Engine).
Download data to external media in a variety of formats for later printing.
Record various parameters, display graphics in real time, and more.

Protocols:
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
