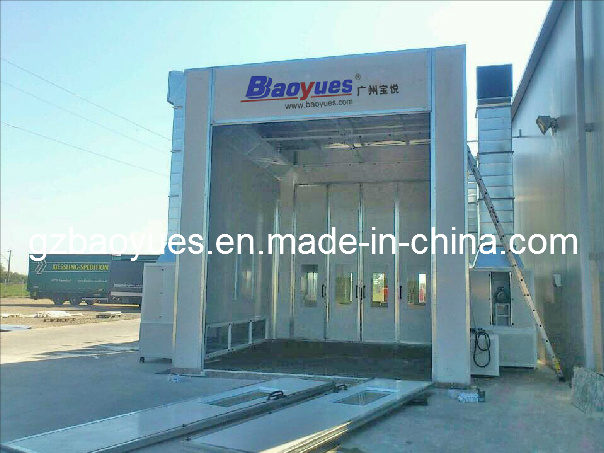

New Design, Big Size 15m Paint Booth (for bus and truck)
| Price: |
US $ 10000-20000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BY-15-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Baoyues |
| Color: |
Optional |
| Diesel Burner: |
Riello Rg 5s |
| Purification: |
≥95% |
| Noise: |
≤70 Db |
| Voltage: |
220V,380V,50Hz |
| Free Air Speed: |
≥0.24m/S |
| Power: |
60kw |
| Certificate: |
CE,ISO,CCC |
| Warranty: |
1 Years |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Truck Paint Spray Booth |
| Brand: |
Baoyue |
Product Description
Guangzhou Baoyue Electromechanical Equipment Co., Ltd.
We specialize in the design, manufacture and sale for auto spray and paint booth, industry painting equipment, and high temperature drying plant. No matter for car painting or baking, our products maintainhigh levels of safety and performance together with top quality construction.
Description
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Advantages
1. Professional team for installation abroad
2. Timely delivery
3. CE TUV proved
4. Best quality
5. Best service
6. Best price
Our service
1. Professional vehicle equipment supplier.
2. Continuous development of new products.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system & good reputation in the market.
Company: Professional manufacturer and competitive factory price, we can control of the production cycle and product quality very good
Our products had sold to Australia, Germany, Nigeria, Philippine, Romania, Singapore, Russian Federation, Kingdom of Saudi Arabia, The United Arab Emirates, etc...
Other trading conditions and terms, please find below:
A: Payment term: T/T 50% in advance after order confirmed, 50% in balance before shipment.
B: Delivery time: To effect shipment within 15 days after receipt of deposit.
C: Warranty time: 1 years. During the warranty time, any time, any problem caused by products' quality, BAOYUE has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier. Enclosed please kindly find the BAOYUE guarantee & after-sales services clause.
|
Inside dimension |
15000×5000×5000 mm (L×W×H) |
|
Outside dimension |
15144×6896×5600 mm(L×W×H) |
Pits |
2 rows of pits in the ground for outlet, dimension of each pit is 13850×760mm (L×W), with galvanized grilles made by twisted steel and flat bar above |
Front door |
Folding door, 4-folds, 4000×4500mm (W×H), galvanized steel frame, with polystyrene (EPS) inside, colour: blue. |
Emergency door |
2 units, 800×2000 mm (WXH), colour: white. |
Room body |
Profiled bar beams in the roof to strengthen the room body; wall panel thickness:70mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white. |
|
Light system |
Ceiling Lights: 18Units×4Pcs=72Pcs×36W, Side Lights: 22Units×4Pcs=88Pcs×36W, up and down interleaving installation, with electronic ballasts. |
Generator cabinet |
Intake from side upper, exhaust from back upper, quadrate steel frame, outside is white coated steel, inside is galvanized steel, filled with heat preservation material inside. |
Intake and exhaust system(2 sets) |
Inlet: 2 sets, in total 4×7.5KW double-intake centrifugal fans, model YDW4.5M, air capacity is 21000m3/h for each fan; |
Outlet: 2×11KW double-intake centrifugal fans, with motor outside, belt-drive, model TAE-710H, air capacity is 36000m3/h for each fan. Equip manual dampers for exhaust. |
Heating system(2 sets) |
2 units RIELLO RG5S diesel burners, heating productivity: 520000 Kcal/h, stainless steel heat exchanger, pneumatic dampers actuate from spraying to baking cycle. |
Purification system |
Pre-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter. |
|
Roof |
50mm thick EPS heat preservation panels. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter,hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start. |
|
Total power |
60KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
