Lager Size 15m Spray Booth, Truck Spray Paint Booth for Sale
| Price: |
US $ 20000-30000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

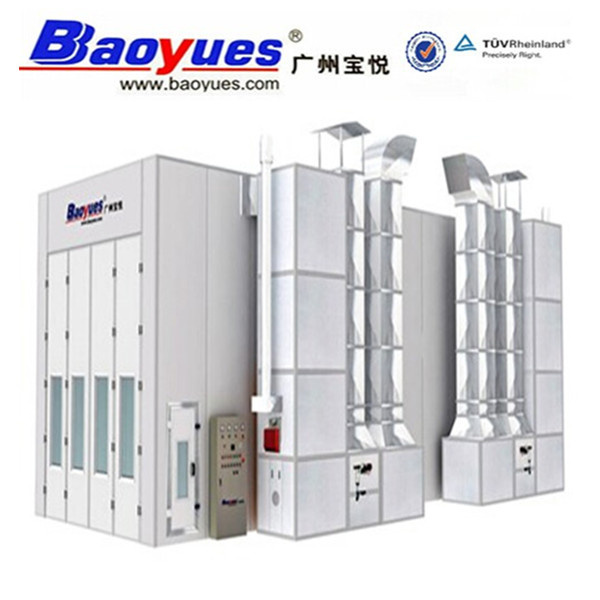

Large size 15m spray booth,truck spray paint booth for sale
1. Professional vehicle equipment supplier.
2. Continuous development of new products.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system & good reputation in the market.
Feature for truck spray paint booth
1. maintains a high level of safety and performance together with top quality construction and material
2. Various systems of environmental protection are optional for customers
3. Hot sale and very popular with customers
4. A wide range of colors available: white, red, marine blue, gray, orange
5. Good prep&after sale service
Product materails and components As a professional manufacturer, we will monitoring every link in product production strictly to guarantee high quality product for our customers
Product packing and shipping Before the shippment,the products are in the properly packing, loaded by the worker and forklift!such as the contrl box was packed in carbon!the wall panel were packed in foam paper,the ceiling filter,floor filter packed in plastic sheets!
Our service 1. OEM Service
Our professional R&D dept. can develop different products for different target prices and different requirements.
2.Warranty time
1 years. During the warranty time, any time, any problem caused by products' quality, BAOYUE has responsibility to offer free spare parts to customers freely and bear the delivery cost
3. Direct factory, Competitive price
We are manufacturer.Factory price, various products we can source for you.
4. Quality control
We have a strict quality control system, Professional QC team.
5. Conveying and storage
they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower
6. Quick response
All requests will be reply within 12 hours.
Company information
1. Since2011,professional manufacturer of auto spray/baking booth,industry paintinge quipment
2. Rich experience in OEM Order.
3. Fast delivery, and good quality control team to ensure timely delivery .
4. Own installation team, can provide installer any time. .
5. Advanced production equipment, many core machine import from Germany and Italy .
6. High quality materials, can provide customers with high-quality products .
Contact us any time Company Name:Guangzhou Baoyue Electromechanical Equipment Co.,Ltd
Mobile Phone: 0086-15817038865
Telephone:0086-020-66806679
you scaned our information and showed interest,please feel free to contact me now.
Welcome to our factory!
| Item | Detailed Specification |
| Inside dimension | 15000×5000×5000 mm (L×W×H) |
| Outside dimension | 15140×6640×5600mm (L×W×H) |
| Front door | Folding door, 4 folds, 4000×4500 mm (W×H), galvanized steel frame, cold plate powder coated window frame, white colour. |
| Emergency door | 2 units, 800×2000mm (W×H), colour: white. |
| Basement | No steel basement, 2 lines pits in the ground for the exhaust, size of each pit: 13850 × 760mm (L×W), with galvanized twisted grilles above. |
| Wall panel | Profiled bar beams in the roof to strengthen the room body, thickness: 70mm, width:1150mm,
tongue and groove structure, 0.476mm colour steel with EPS inside, colour: white. |
| Light | Ceiling Lights: 18Units×4Pcs=72Pcs×36W , side lights: 12Units×2Pcs=48Pcs×36W , up and
down interleaving installation, with electronic ballasts, lighting boxes are powered coated |
| Generator cabinet | Intake from back upper, exhaust from rear upper, quadrate steel frame ; white machine-made
panel covered, filled with heat preservation material inside. |
Intake and Exhaust
system
| Inlet: 2×11KW turbo fan , air capacity for each fan: 30000m3/h. |
Outlet: 2×11KW turbo fan , air capacity for each fan: 30000m3/h .. Manual damper, 16m ducts, 2
pcs 900 bend, 2 pcs 300 bend, 2 pcs intake hoop. |
| Heating system | 2 sets Italy RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper
actuates from spraying to baking cycle. Max. heating productivity: 520000kcal/h , max
temperature: 80°C, 8pcs chimney, 2 pcs bend |
| Purification system | Pre-filter (pocket type), ceiling filter, fibreglass filter, activated carbon filter (pocket type). |
| Roof | 50mm EPS panel. |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meater, temperature limiter, all motors is reduced voltage starting. |
| Total power | 50KW (Power supply 1×220V, 3×380V, 50HZ) |
| Prod Model: |
BY-15-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Spray Booth |
| Color: |
Orange |
| Purification: |
≥90% |
| Burner: |
Riello Rg5s |
| Air Capacity: |
30000m³/H |
| Max Heating Productivity: |
520000kcal/H |
| Safety: |
with Pressure Emergency Door |
| Illumination: |
≥1500lux |
| Room Body: |
0.476 Mm Colour Steel |
| Warranty: |
12 Month |
| Paint Mist Treatment: |
Dry-type |
| Heating Mode: |
Diesel |
| Airflow Direction: |
Cross-flow Type |
| Certification: |
CSA |
| Condition: |
New |
| Type: |
Truck Paint Booth |
| Brand: |
Baoyues |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
