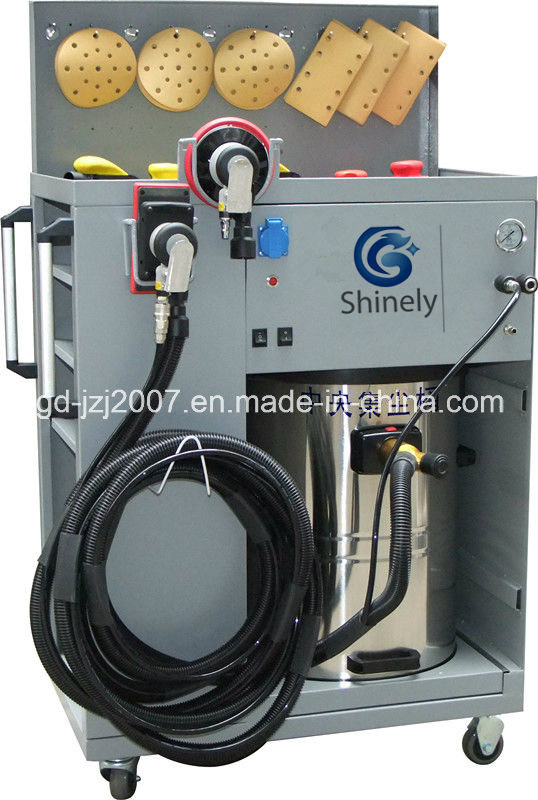

Moveable, Full Automatic, Lux-Type Sanders with Dust Extraction System

V7  moveable,full automatic,lux-type sanders with dust extraction system.High efficient, dust-free solution, Movable workstations, can adapt workplace change.
Y-type hose fitting is optional, that means it can provide 2 operators work at the same time.The work efficiency increased by 80%
central dust-collection system

High speed on polishing and grinding,more efficiency
time saving.efficient environmental protection dust collection design,
ensure a clean and healthy working environment.
With the function of automatic switch and German imported low noise constant power environmental protection motor, strong suction.
the machine will automatic delay 10-20 seconds when idle state, for collect the dust in the pipe.
the main cabinet is equipped with the rack, Multi-compartment convenient for operator to place the  sandpaper and ancillary products.
Technical parameter

SPECIFICATION	V7
Voltage	220V/50HZ
Power	2500W
Amount of dust	230m3/h
Capacity	60L
Pipe Length	7.5m
Working pressure	10Mpa


Spare parts list :

1)	6"(152mm) central vacuum grinder(polisher) Low center of gravity of the body(Composite material),ergonomic design, excellent handling, little vibration, long time operation without fatigue,light weight,hands not feel cold even in winter when touch it. Widely used in various industries of surface grinding, polishing operations. speed: 12000rpm Eccentricity: 5mm Net weight: 0.85Kg Air Consumption: 0.48m³/min working pressure: 6.3kg/c	1
2)	3x7"(75x175mm)Central Vacuum grinder high speed on polish and grinding,more efficiency time saving. Low center of gravity of the body(Composite material),ergonomic design, excellent handling, little vibration, long time operation without fatigue. light weight, your hand not feel cold even in winter when touch it. Widely used in various industries of surface grinding, polishing operations. speed: 10000rpm Eccentricity: 4mm Net weight: 0.9Kg Air Consumption: 0.48m³/min working pressure: 6.3kg/c	1
3)	15 holes manual plane apply to small area	1
4)	Vacuum pile Connect with grinders and vacuum, air supply, dust collection. high corrosion resistance	1
5)	combination vacuum pipe Can connect with two grinding tools at the same time	1
