Auto Spray Booths for Car Painting in Car Service Workshop

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

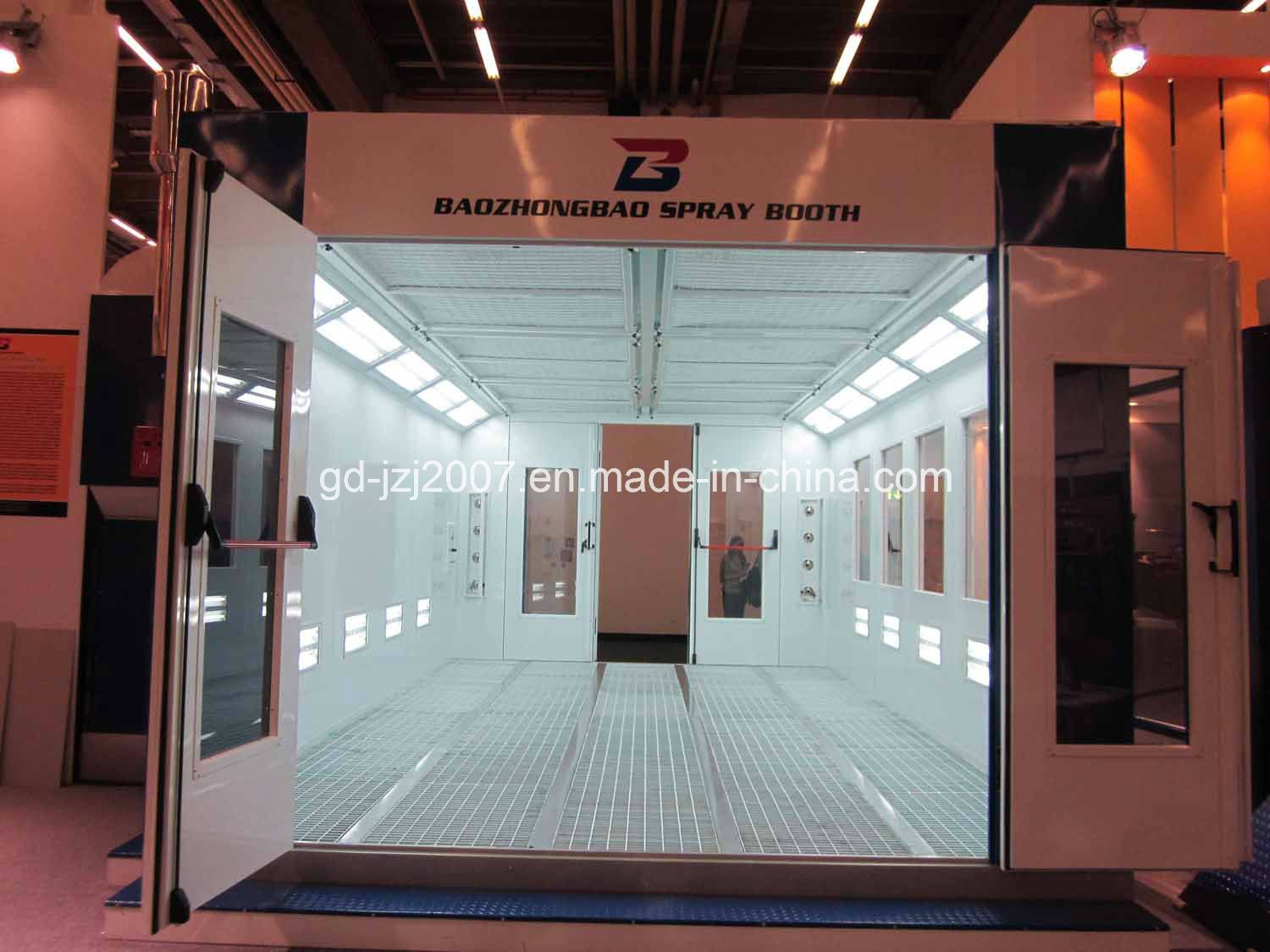

Down draft spray booth specially for auto paint and bake
Outside dimension: 7000L*5550W*3450H
Inside dimension: 6900L*4000W*2800H
Front door dimension: 3000W*2700H
Working door dimension: 800W*2000H

Cabin system:

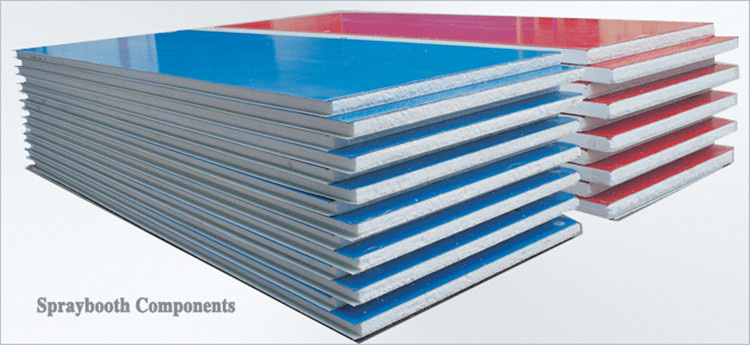

1. ) wall panel: 50mm thickness EPS panel, 0.426 thickness colored steel.
2. ) basement: Steel structure base; Fives line grills; Full ramps; Height is 280mm.

Air circulation system:
Air intake fan: DDF-4.5AL1, with air volume 24000m3/h total, 7.5kw/set, 1set
One set automatic damper, 10N actuator
Air outlet fan: DDF-4.5AL1, with air volume 24000m3/h total, 7.5kw/set, 1set

Generator:
Slid upward side intake air, rear upward side exhaust, quadrate steel frame

Air purification system:
Pre-filter, high efficiency filter (ceiling filter), floor filter,

Heat system:
Stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner, heating capacity is 180000kcal/h, electric damper from spray to bake, oil consumption 4~6L/set, the heating time is 5~7minutes

Lighting system: ≥ 900Lux
Ceiling light: 8groups * 4 PCS =32PCS * 36W,
Bottom lamps: 8groups * 4 PCS =32PCS * 36W,
Glass: All glass is clear tempered glass

Control box:
PLC control, light switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm

Total power: 17KW
