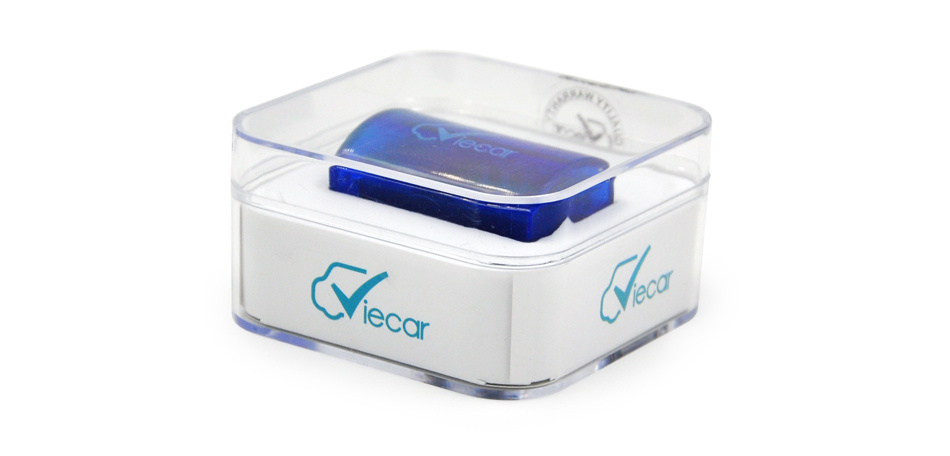

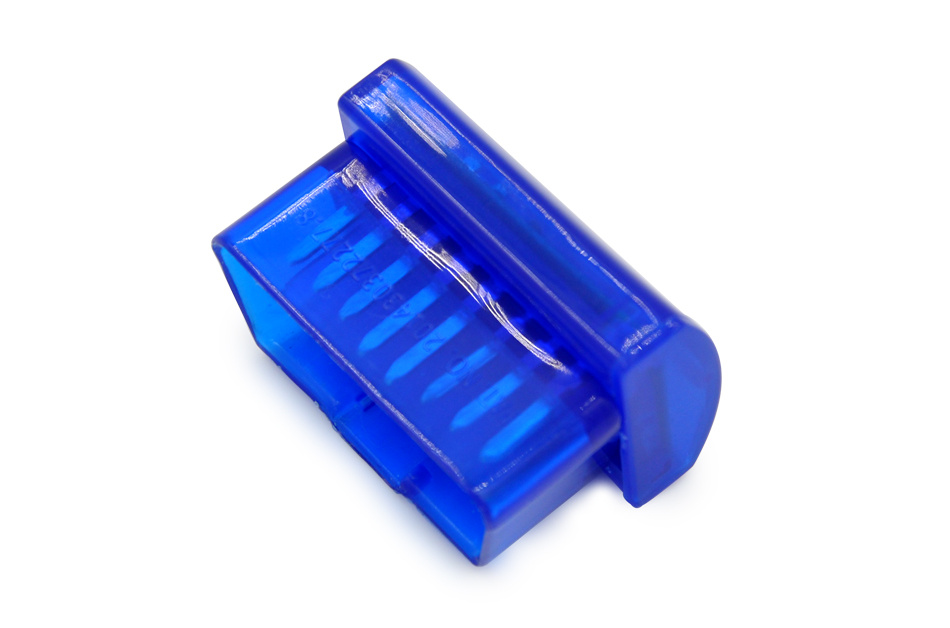

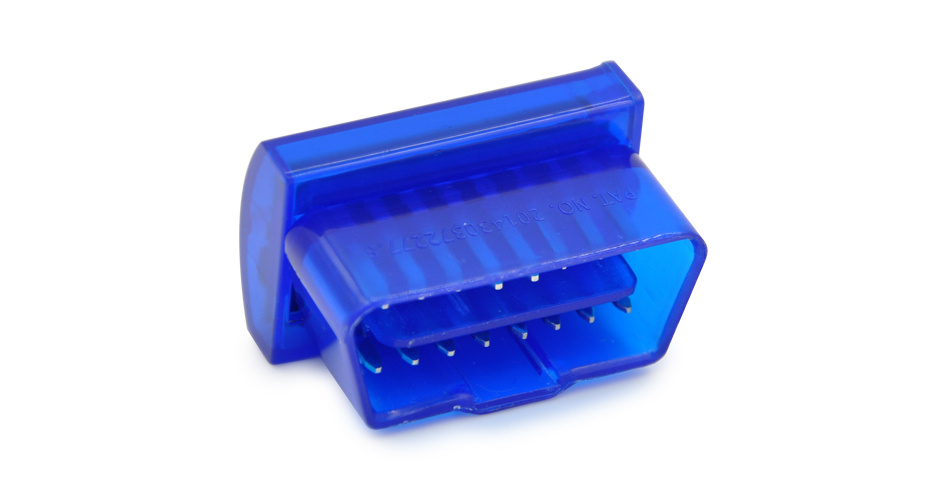

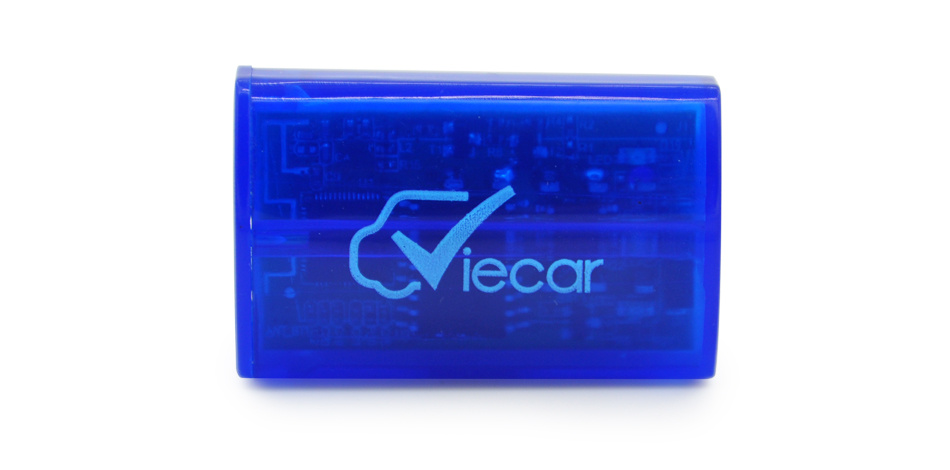

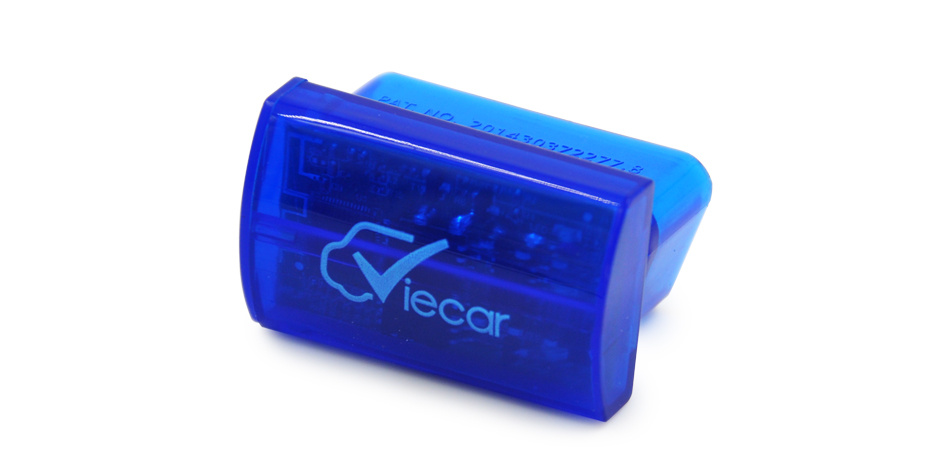

Newest Mini Elm327 Interface Viecar 2.0 OBD2 Bluetooth
Viecar 2.0 Product Specifications
Viecar 2.0 is a smallest, most highly chip integration and multi
functional, a full range of automotive high-tech electronic products, via Bluetooth 2.0 connecting in-vehicle ECU
computer interface to reach data synchronization; rapid data transfer, the product plug and play, installation is
simple, stable performance, low power consumption. Realization of monitoring and understanding for vehicle
body electronics electronic control system; and can also set the vehicle interior features through car ECU
computer system, so that the driver can be more humane to use their own car.
Viecar 2.0 is not just an information display system, but also a very powerful fault detection equipment, to know
whether the vehicle is faulty, the system can be very clear fault information displayed in the form of text, can exclude
hidden by vehicle faults , but can also ensures vehicle in warranty early find fault so that promptly take appropriate
measures, to protect the interests of the owners.
Product Features: Viecar 2.0 has made a number of national patents, including technology patent number:
201420545235.4, the appearance of patent number: 201430372277.8 . The product is the latest
Android-based systems and personal computer (PC) scan tool. It supports OBD-II protocols and is
compatible with many software, which interconnect via Bluetooth 2.0 output agreements with the host side

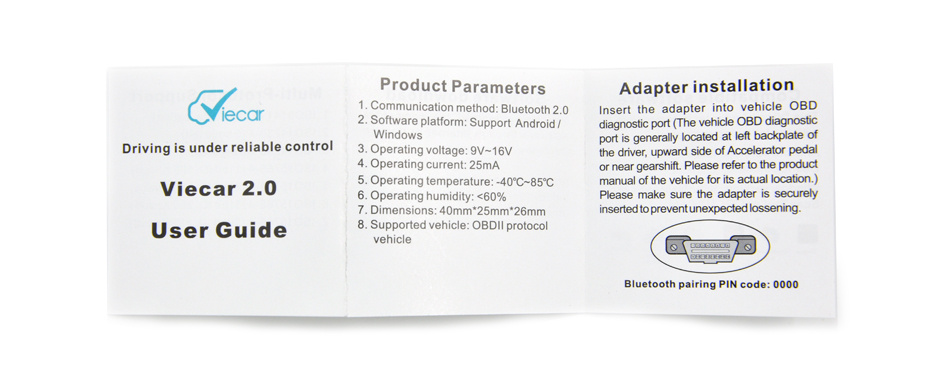

Product Specifications
1. Communication: Bluetooth 2.0
2. Software Platform: Supports Android / Windows
3. Working voltage: 9V ~ 16V
4. Working Current: 25mA
5. Working temperature: -40 ~ 85 degree
6. Working humidity: less than 60%
7. Product Size: 40mm * 25mm * 26mm
Supports OBD-II protocols:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Software Description:
Viecar 2.0 OBD-II software used for free software, computer hardware and automotive in-vehicle
computer when connected using the software, you can get the information you need from the
onboard computer. Friendly software interface, which will help to get started.

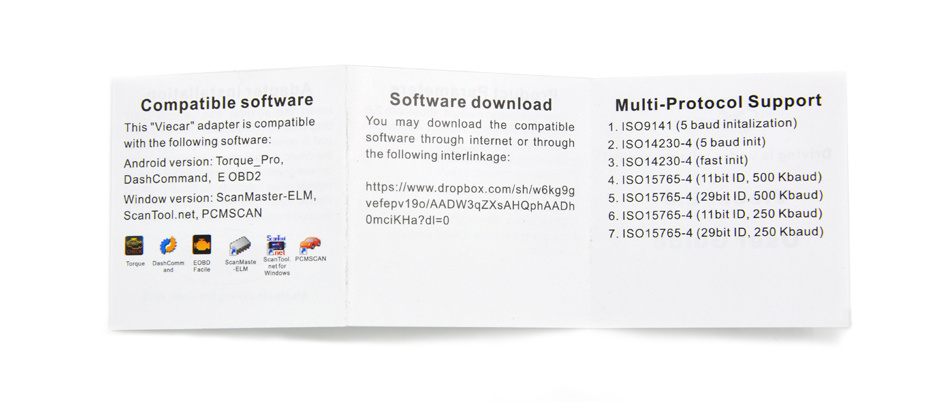

Compatible software:
Window Version: ScanMaster-ELM, ScanTool.net, PCMSCAN etc; Android version: Torque_Pro,
DashCommand, E OBD2 etc; Symbian version: OBDScope.
Software Support Platform: Windows XP, Windows 7/8, Android, Symbian and other systems.
