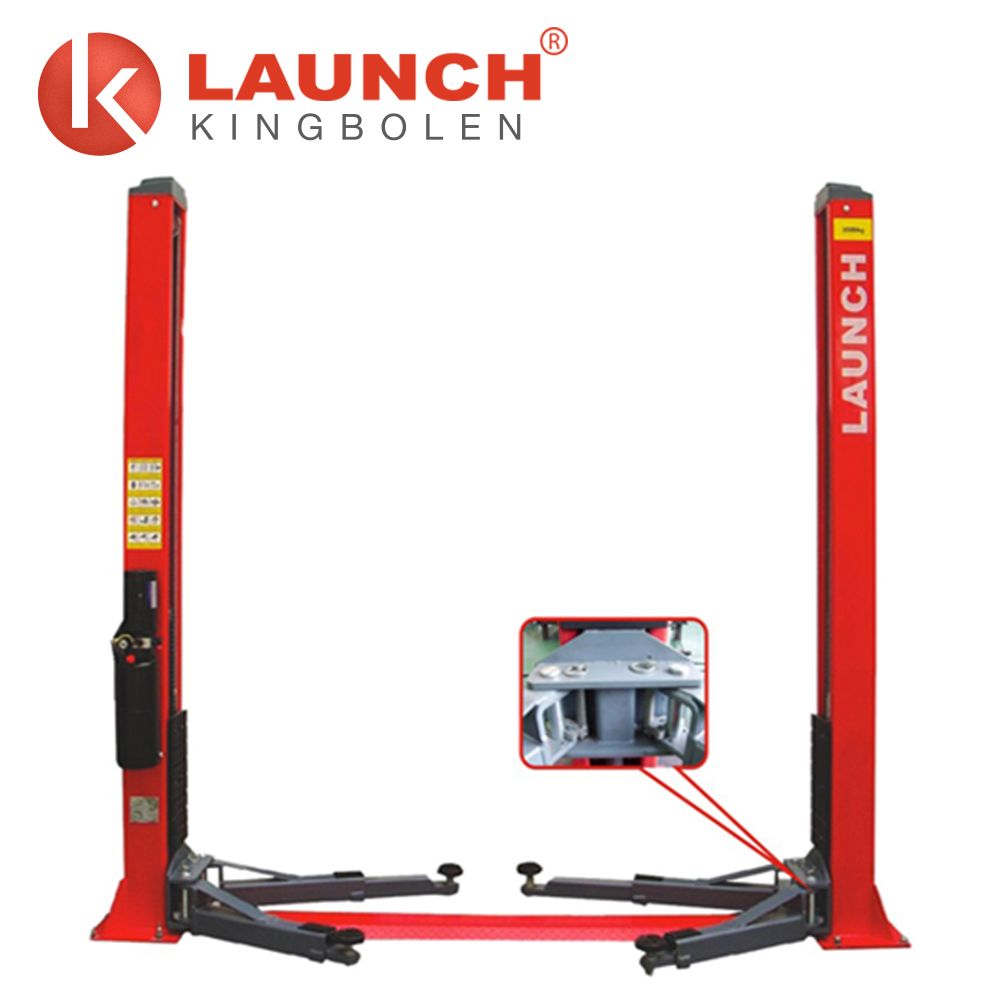

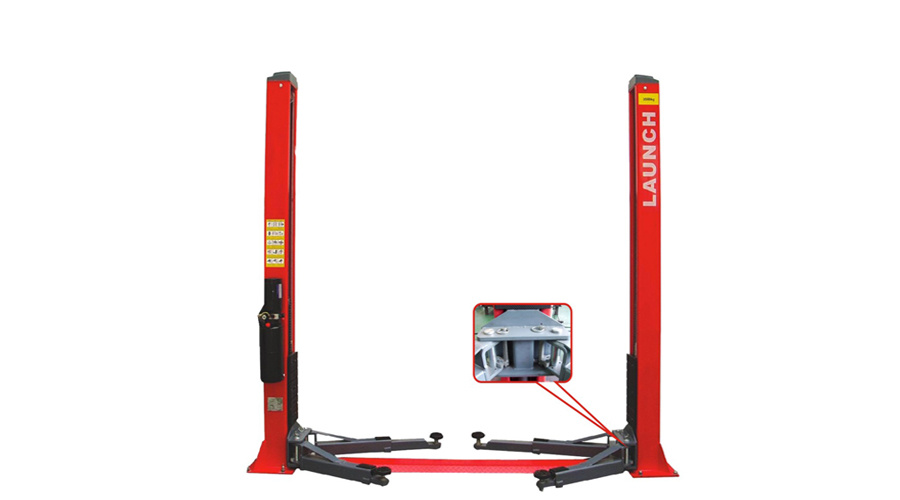

CE certificated Double Cylinder Hydraulic Lift Launch TLT235SB Economical Floor Plate Two Post Lift (Rated Capacity: 3.5Ton)

Product Description

TLT235SB Features

Bilateral manual safety unlocking system.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
24V low voltage control box(IP54 level)ensures operator's safety.
24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.
Door rubber pad protects car door from being damaged in collision.
More lifting pads with different height meets the requirements for light lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading test .
CE certificated.
Symmetric and asymmetric installation types are optional. (For SC model)

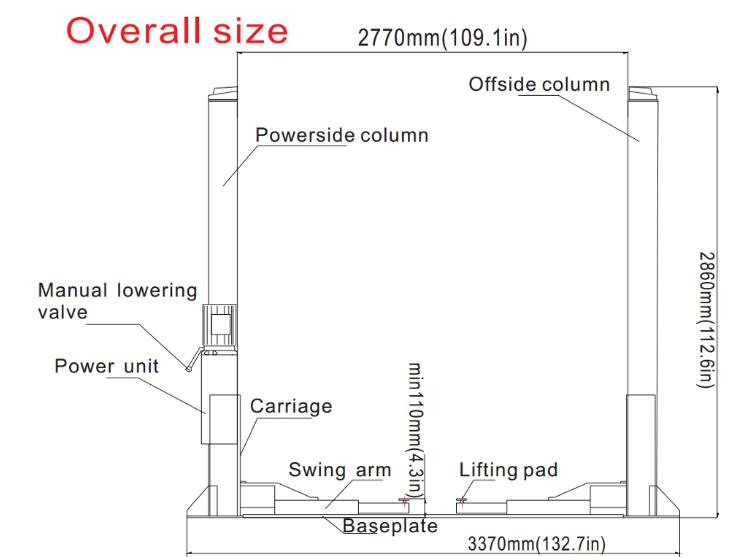

TLT235SB Parameter

Rated load:   3500kg
Lifting height:   1850mm
Initial height:   110mm
Lifting time:   ≤50s
Lowering time:   ≥20s≤40s

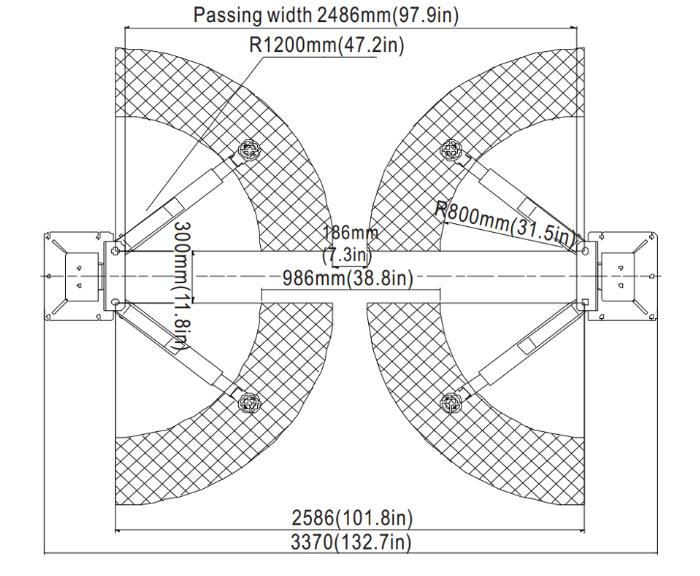

Passing width:   2486mm
Overall width:   3370mm
Overall height:   2860mm
Motor power:   2.2kw
Motor voltage:   3 phase/380v or Single phase/220V
Working noise:   ≤75dB(A)
Working oil pressure:   16M Pa

Environmental Requirement

Working temperature:   -5ºC ~+ 40ºC
Transport/storage temperature:   -5ºC~+ 40ºC
Relative humidity:   Temperature+ 30ºC ,relative humidity 8 0 %
Height above sea level:   No more than 2000m

Prod Model:	TLT235SB
Type:	Double Cylinder Hydraulic Lift
Model Number:	Tlt235sb
Warranty:	1 Year
Lifting Height(mm):	1850mm
Motor Power:	2.2kw
Overall Height:	2860mm
Passing Width For Symmetric Installation:	2486mm
Overall Width For Symmetric Installation:	3370mm
Lowering Time:	≥20s≤40s
Certification:	CE
Update Method:	by Internet
Testing Equipment Type:	Diagnostic Tool
