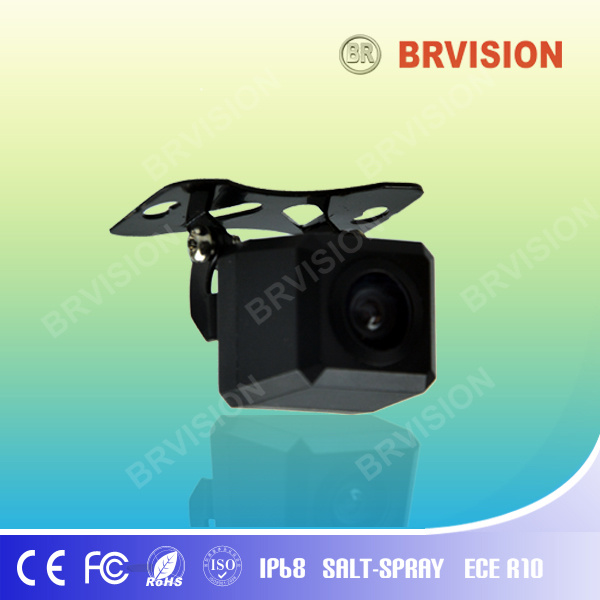

Mini Car Camera for Universal Vehicle

Name: Mini Car Camera for Universal Vehicle
Brand: ibuyautoparts.com
SKU: 794560805
Availability: InStock
Rating: 4.9 (85 reviews)

Price:	US $ 10-13/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MNC04
Lens Angle:	120degree
Interface:	RCA
Definition:	420TVL
Chip:	CCD
Waterproof Grade:	IP68

Product Description

1.Type High resolution backup camera.
2.Image Sensor 1/4" CCD
3.TV System NTSC/PAL Optional
4.Effective Pixels N: 510x492 pixels P: 500x582 pixels
5.Horizontal Resolution 420 TV Line
6.Lens Angle 120°
7.Minimum Illumination 0Lux (LED ON)
8.Audio function
9.Operating Temperature -20°~+70° RH95% Max
10.Lens f=12.8mm
11.Power Supply DC12V
12.N.W 350g
13.Waterproof Rate IP68
14.Shell Material Aluminium alloy

Products Specifications:
BR-MNC04, universal mini rear view camera for all kind of vehicles. 700TVH, with night vision function. The casing of the camera has a IP69K rating which can withstand all weather conditions.

Item No.	BR-MNC04
Feature	Universal mini camera with night vision
TV System	NTSC/PAL
Connector	4P connector or RCA connector for selection
IP Rating	IP69K
Vibration Rate	10G
Effective Pixels	N: 510492 pixels P: 500582 pixels
Horizontal Resolution	CMOS, 700TVL
Video Output	1.0vp-p, 75Ohm
B.L.C	Back light Compensation (Auto)
White Balance	Auto White Balance (Auto)
Minimum Illumination	0Lux (LED ON)
S/N Ratio	≥48dB
Electronic Shutter	1/60~1/100,000 Sec
Built-in Lens	f: 2.8mm
Power Consumption	DC 12V (+/-10%)
Lens Angle (Deg.)	170°
Operation Temperature	-30ºC~+70ºC.RH95% Max
Storage Temperature	-40ºC~+80ºC.RH95% Max
