| Prod Model: |
MHS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SS304, SS316 |
| Cell: |
100-600cpsi |
| Application: |
as Catalyst Used in Automobile/Motorcycle |
| Shape: |
Round/Square/Rectangular |
| Thickness(mm): |
0.04-0.1 |
| Width(mm): |
10-250 |
| Max Working Temperature: |
1100°c |
| Max Service Temperature: |
1250°c |
| Body Material: |
Steel |
| Discharge Standard: |
Euro V |
| Certification: |
TS16949 |
| Component: |
Catalytic Converter |
Product Description

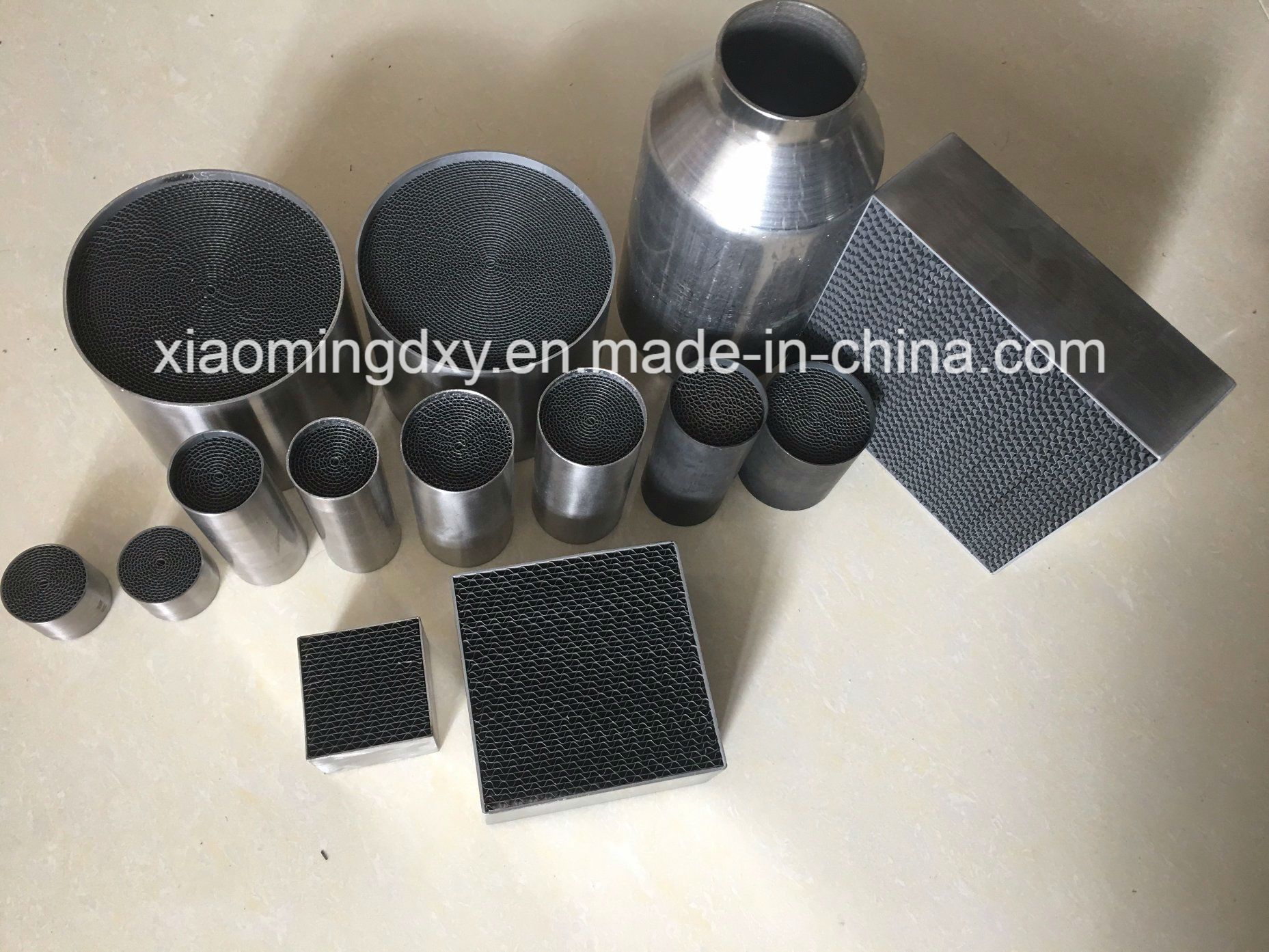

Auto & motorcycle exhaust system metal honeycomb metallic substrate catalyst
Metal honeycomb substrate catalyst is used for motorcycles, ATV, universal engine, garden machinery and agricultural cultivating machinery, etc. The metal honeycomb substrate catalyst plied to highly cars. Honeycomb metal substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike and auto. It satisfies the Euro II III V standard.
Applications:*Round & Ovel metallic substrate for On-road vehicle
*Metallic substrate for small engine
*Metallic substrate for Off-road vehicle
*Metallic substrate for industrial catalyst
*Specific structure metallic substrate for other application
Advantages:*Low light-off temperature
*Long-term durability performancy
*Key material imported from Japan and Germany
*Contain noble metal: Pt/ Pd/ Rh
*Meet the Standards Euro II ~ Euro V emission standard
| Shape | Material | Diameter | Length | Channel density(cpsi) |
| Cylinder | Fe/Cr/Al | 20 | 20 | 100/200 |
| Cylinder | Fe/Cr/Al | 20 | 80 | 100/200 |
| Cylinder | Fe/Cr/Al | 30 | 100 | 100/200 |
| Cylinder | Fe/Cr/Al | 28 | 60 | 100/200 |
| Cylinder | Fe/Cr/Al | 28 | 100 | 100/200 |
| Cylinder | Fe/Cr/Al | 35 | 30 | 100/200 |
| Cylinder | Fe/Cr/Al | 35 | 40 | 100/200 |
| Cylinder | Fe/Cr/Al | 35 | 60 | 100/200 |
| Cylinder | Fe/Cr/Al | 35 | 70 | 100/200 |
| Cylinder | Fe/Cr/Al | 35 | 100 | 100/200 |
| Cylinder | Fe/Cr/Al | 38 | 100 | 100/200/300/400 |
| Cylinder | Fe/Cr/Al | 42 | 100 | 100/200/300/400 |
| Cylinder | Fe/Cr/Al | 45 | 100 | 100/200/300/400 |
| Cylinder | Fe/Cr/Al | 48.6 | 70 | 100/200/300/400 |
| Cylinder | Fe/Cr/Al | 53 | 100 | 100/200/300/400 |
| Cylinder | Fe/Cr/Al | 63 | 50 | 100/200/300/400 |
| Cylinder | Fe/Cr/Al | 101.6 | 100 | 200/300/400 |
