Mechanical Diesel Injection Pump Test Bench/Diesel Pump Test Bench
| Price: |
US $ 4478-6500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Common Rail Injector Test Bench
Model:NT3000
Introduction

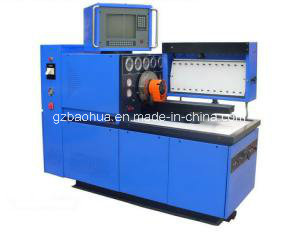

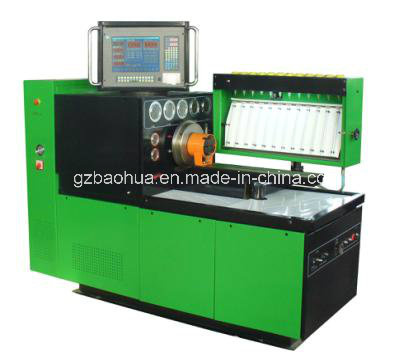

NT3000 is a kind of fuel injection pump test bench adopt industrial pc with color CRT, It's the newly researched production for the direction of high power and safety to the environment. It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,it's really human-machine dialog.This series test bench adopt high quality frequency conversing device and cast iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.
Function
1.Measurement of each cylinder delivery at any speed.
2.Test point and interval angle of oil supply of injection pump.
3.Checking and adjust the mechanical governor.
4.Checking and adjusting the distributor pump.
5.Experiment and adjusting of behavior of supercharging and compensatory device.
6.Measurement of oil return of distributing pumps.
7.Testing of the electromagnetic valve of distributor pump.(12V/24V)
8.Measurement of the internal pressure of distributor pump.
9.Checking of the advance angle of advance device.(on request)
10.Checking the sealing of injection pump body
11.Install tube of auto-sucking oil supply can check on oil supply pump (including VE pump.)
12.Checking the travel of stroke
13.Oil lubricate (on request)
14.Cast iron base(on request)
15.Forced cooler (on request) TECHNICAL PARAMETER 1. Main motor output power(kw):7.5,11,15,18.5,22
2. Stroke Counting (Rpm):50-9999
3. Standard injectors:ZS12SJ1
4. Low pressure of fuel oil pressure(Mpa):0~0.4
5. High pressure of fuel oil pressure(Mpa):0~4
6. Power of fuel pump motor (kw):0.75
7. Volume of fuel tank(L):40
8. Number of cylinders:12
9. Height of principal axis center (mm):125
10. Filter oil precision of test bench(μ):4.5~5.5
11. Big and small volumetric cylinder(ml):150 45
12. Control temperature of fuel (°C): 40±2
13. Flywheel inertia(kg*m):0.8~0.9
14. Measuring range of flow meter(L/m):10~100
15. DC electrical source(V):12 24
16. Positive pressure of air supply(Mpa):0~0.3
17: Negative pressure of air supply(Mpa):-0.03~0
18: Dimension of Packing ( L*W*H(m)):2.30*1.10*1.70
19: Gross weight of Test bench(kg):900KG
| Prod Model: |
NT3000 |
| Testing Injector: |
Bosch, Siemens, Delphi, Denso |
| Testing Range: |
Common Rail Diesel Injector |
| Motor Output Power: |
7.5,11,15,18.5,22kw |
| Voltage: |
380V, 3 Phase 50/60Hz |
| Number Of Cylinders: |
12 |
| Stroke Counting: |
50-9999rpm |
| Low Pressure Of Fuel Oil Pressure: |
0~4bar |
| High Pressure Of Fuel Oil Pressure: |
0-40bar |
| Volume Of Fuel Tank: |
40L |
| Filter Oil Precision Of Test Bench: |
4.5~5.5μ |
| Update Method: |
by Email |
| Certification: |
CCC |
