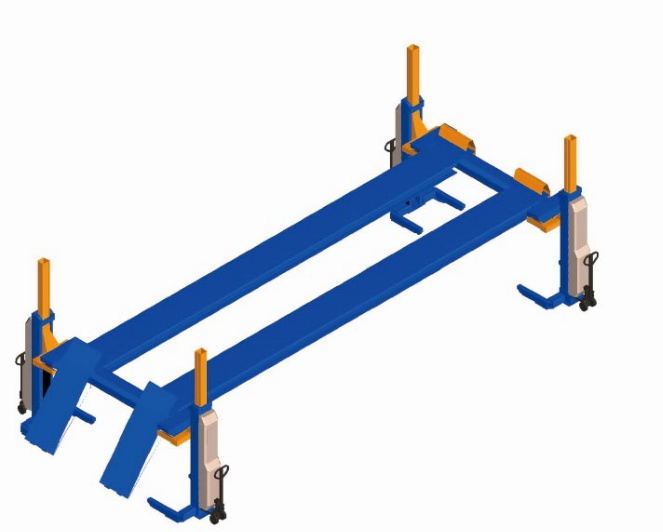

Maxima Ramping System (ML4022PT) (supporting auxiliary for MAXIMA Lift ML4030/ML4030W)

Prod Model:	ML4022JK
Certification:	ISO
Design:	Four Post
Type:	Ramping System
Lifting Capacity:	22tons
Brand:	Maxima

Product Description

The platform/ramping system is a supporting auxiliary for MAXIMA Heavy Duty Column Lift (PN ML4030/ML4030W). First of all secure the Mobile Column lift onto ground with fixing plate, place the platform onto the fork arm of the lift, and finally fasten the column and platform with beam hooks. It can be widely used in the assembly of heavy duty buses, maintenance & repair of saloon cars, as well as repair of harbor machinery, mining equipments, engineering machinery and transportation vehicles, and above all in the fast repair shops alongside the highway; it has a very broad market due to its conveniency.
a. Providing a fast, convenient and smooth parking space for vehicles to be repaired.
b. Parking of vehicle is firm and reliable, with parking block warding off in front.
c. During columns lifting up and down, the turnable parking block wards off the vehicle in good reliability at rear end.

Supporting column lifts: ML4030/ML4030W
Quantity of columns: 4
Rated lifting capacity: 22tons(5.5ton/column)
Height of sliding blocks: 260mm
Inclination of drive-on ramp: 6°
Rail width(single side): 710mm
Length of parallel beam(drive-on ramp excluded): 8500mm
Space between rails: 1180mm
Total length after installation onto column lift: 11800mm
Total width after installation onto column lift: 5230mm
