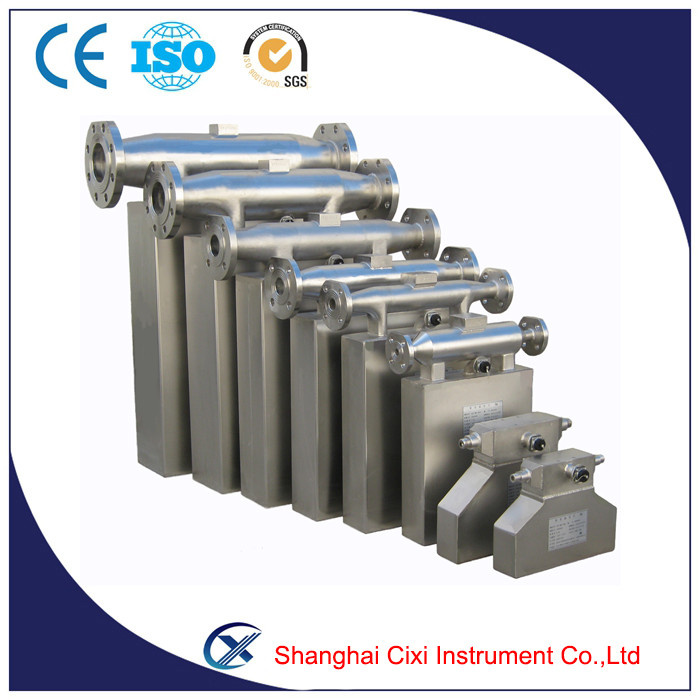

Low Cost Diesel Fuel Mass Flow Meters

Name: Low Cost Diesel Fuel Mass Flow Meters
Brand: ibuyautoparts.com
SKU: 735864715
Availability: InStock
Rating: 4.9 (40 reviews)

Price:	US $ 5000/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Brief introduction

The leading meters for precision flow measurement.
Low pressure drop
The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries
Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need.

Mass flow accuracy	±[0.2% +(zero stability /flow rate×100%)
Mass flow repeatability	±(1/2) ×[0.2% +(zero stability /flow rate×100%)
Density range	0.2 g/cm3~3.5g/cm3
Density accuracy	±0.002g/cm3
Temperature range	-60C-+200C
Temperature accuracy	±1C
Output of current loop	4mA~20mA
Output of frequency/pulse	0Hz~10kHz
Contactor capacity of a Batch Control relay	24V/0.1A
Explosion-proof	Essential safety:Exib[ib]IIBT4 Composite:Exdib[ib]IIBT4
Contactor form	normal open
Environmental Specifications
Temperature range of fluid	-40C-+200C
Environmental temperature range	0C-+40C
Environmental humidity	≤90% RH, non condensation
Atmospheric pressure range	86kPa~106kPa
Power supply of transmitters	Essential safety Voltage: AC(220±10%)V,(50±5%)Hz Composite Voltage: DC (24±10%) V

Specs	Line Size	Range	Calibration Range	Max. Pressure	Zero Stability	Velocity
Specs	(mm)	(t/h)	(t/h)	(MPa)	(t/hr)	(h m/t s)
DN1	1	0~0.04	0.004~0.04	30.0	0.000008	353.7
DN3	3	0~0.35	0.035~0.35	30.0	0.000067	39.3
DN6	6	0~0.7	0.07~0.7	30.0	0.00016	19.65
DN10	10	0~1.2	0.12~1.2	30.0	0.0002	4.912
DN15	15	0~6.4	0.64~6.4	4.0	0.0011	2.183
DN25	25	0~16	1.6~16	4.0	0.002	0.902
DN40	40	0~40	4~40	4.0	0.003	0.334
DN50	50	0~65	6.5~65	4.0	0.006	0.197
DN80	80	0~160	16~160	2.5	0.01	0.0873
DN100	100	0~250	25~250	2.5	0.015	0.0544
DN150	150	0~550	55~550	2.5	0.03	0.0239

Prod Model:	CX-CMFI
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Technology:	Advanced
Maintenance:	Less and Easy
Installation:	Easy
Exported:	More 80 Countries
Experience:	More 20 Years

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
