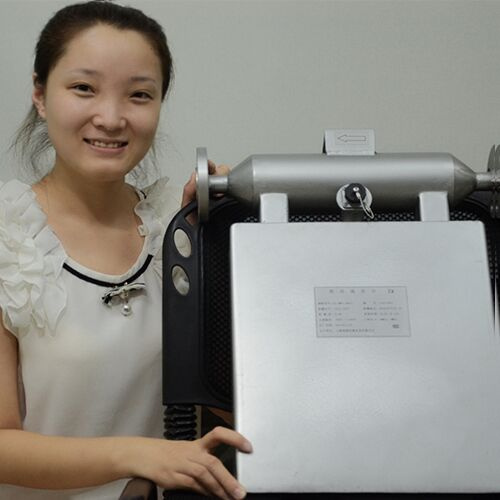

Cx-Cmfi Mass Flow Meters

Brief introduction

The leading meters for precision flow measurement.
Low pressure drop
The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries
Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need.



Would you pls give us more specific information as below:
What's the medium? (oil, juice, water, milk)
What's the size?
What's the flow range?
What's the viscosity?
What's the density?
What's the temperature and pressure?
What's the connection? Flange?
What's the output?
Do you need the explosion proof?
10. What's the accuracy? +/-0.1%

Payment Terms of coriolis mass flow meter
1. Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4. Payment: T/T, Western Union, Paypal

After-sales service of coriolis mass flow meter
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Mass flow accuracy	±[0.2% +(zero stability /flow rate×100%)
Mass flow repeatability	±(1/2) ×[0.2% +(zero stability /flow rate×100%)
Density range	0.2 g/cm3~3.5g/cm3
Density accuracy	±0.002g/cm3
Temperature range	-60C-+200C
Temperature accuracy	±1C
Output of current loop	4mA~20mA
Output of frequency/pulse	0Hz~10kHz
Contactor capacity of a Batch Control relay	24V/0.1A
Explosion-proof	Essential safety:Exib[ib]IIBT4 Composite:Exdib[ib]IIBT4
Contactor form	normal open
Environmental Specifications
Temperature range of fluid	-40C-+200C
Environmental temperature range	0C-+40C
Environmental humidity	≤90% RH, non condensation
Atmospheric pressure range	86kPa~106kPa
Power supply of transmitters	Essential safety Voltage: AC(220±10%)V,(50±5%)Hz Composite Voltage: DC (24±10%) V
























Specs	Line Size	Range	Calibration Range	Max. Pressure	Zero Stability	Velocity
	(mm)	(t/h)	(t/h)	(MPa)	(t/hr)	(h m/t s)
DN1	1	0~0.04	0.004~0.04	30.0	0.000008	353.7
DN3	3	0~0.35	0.035~0.35	30.0	0.000067	39.3
DN6	6	0~0.7	0.07~0.7	30.0	0.00016	19.65
DN10	10	0~1.2	0.12~1.2	30.0	0.0002	4.912
DN15	15	0~6.4	0.64~6.4	4.0	0.0011	2.183
DN25	25	0~16	1.6~16	4.0	0.002	0.902
DN40	40	0~40	4~40	4.0	0.003	0.334
DN50	50	0~65	6.5~65	4.0	0.006	0.197
DN80	80	0~160	16~160	2.5	0.01	0.0873
DN100	100	0~250	25~250	2.5	0.015	0.0544
DN150	150	0~550	55~550	2.5	0.03	0.0239
