Linking Spray Booth / Car Spray Booth / Paint Booth
| Price: |
US $ 5000-50000/Set |
| Trade Terms: |
FOB,CFR,DAP |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Model: JZJ-FB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
to Be Disigned |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Jzj |
| Heating Mode: |
Diesel Oil,Gas or LPG |
Product Description
Product DescriptionModel:JZJ-FB Linking Spray booth

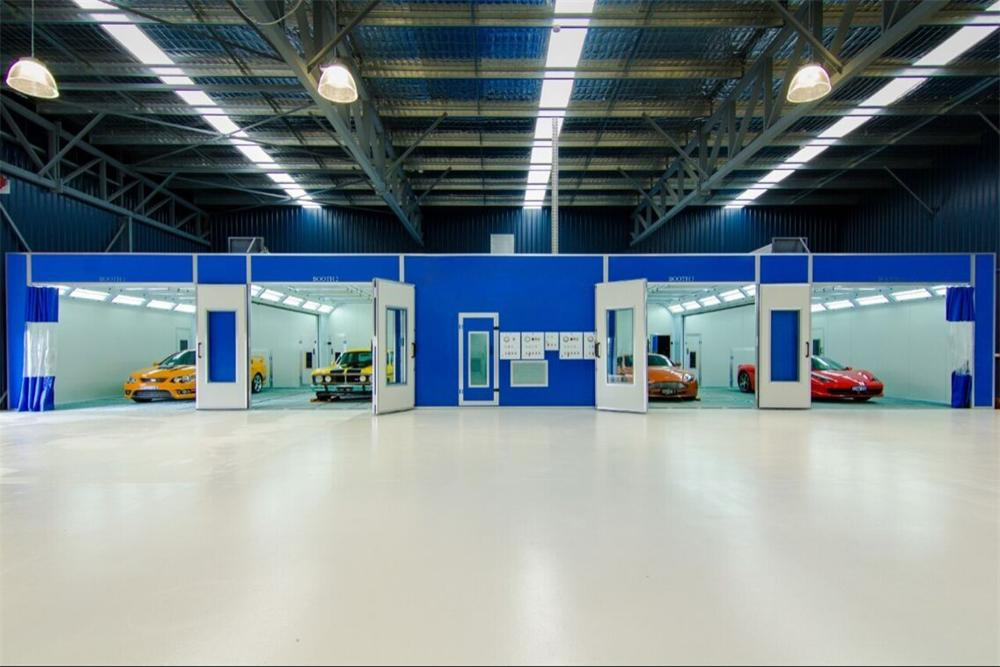

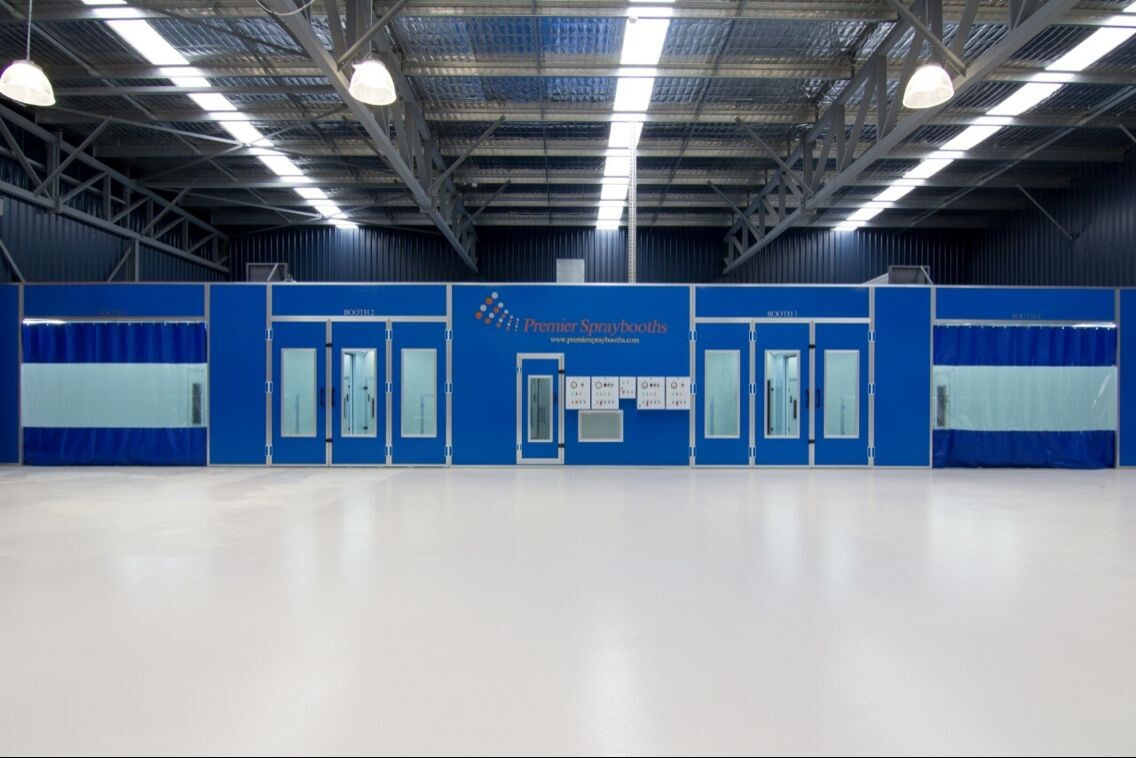

For the big workshops large quantity repair(Prep-station-spray booth-Paint Mixing room-spray booth-Prep-station)
Any Size Requirements Can Be Met
with better ventilation and strong powerA. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.WarrantyThe goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.JZJ ProductsHigh quality and advanced technology are applied in JZJ product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp. Specification: Spray booth model: JZJ-8000 | Outside Dimension (mm) | 8200 x 4600 x3800 (L*W*H) | Inside Dimension(mm) | 6900×4500×3000(L*W*H) |
| Access Door(mm) | 3000*2800(W*H) | Service door (mm) | 800*2000(W*H) as the drawing |
| Total Power | 17KW | Service door (mm) | 550*1900(W*H) as the drawing |
| Cabin system | Wall panel | 50mmEPS panel, double face steel sheet thickness: 0.6mm |
| Ceiling panel | Galvanized steel plate |

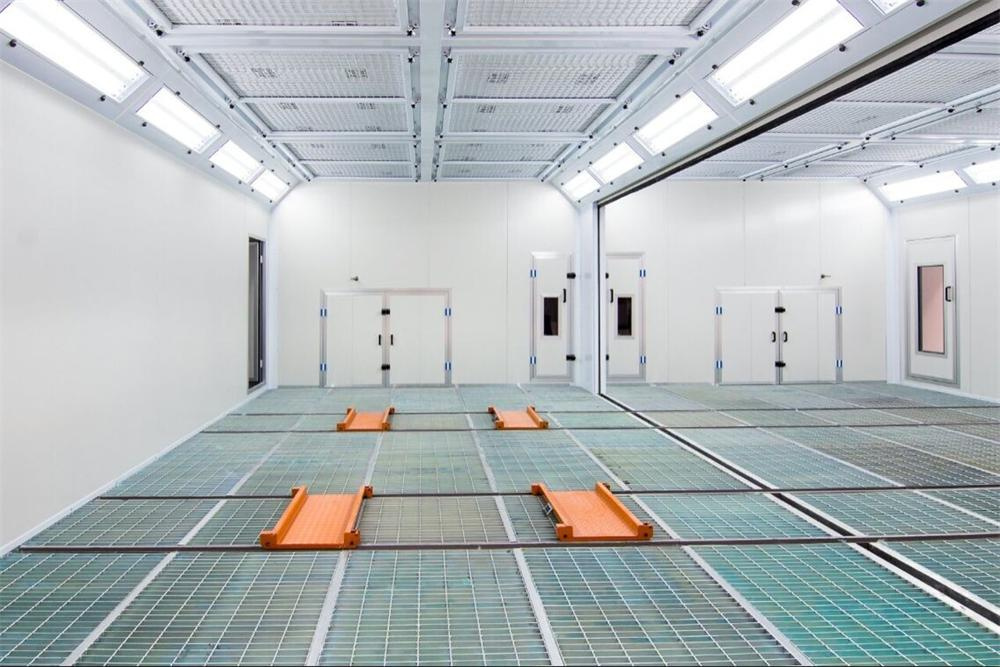

| Basement | 300mm depth, full galvanized grids |
| Basement bearing capacity | 5T |
| Glass | 6mm safety tempered & square frame glass |
| Windows | Square glass Windows |
| Air Make-up System | Air Inlet fan system | 1*7.5KW Turbo fan, explosion-proof motor |
| Exhausted fan system | 1*7.5KW Turbo fan, explosion-proof motor |
| Fresh air capacity | 25000m3/h |
| Air extraction capacity | 25000m3/h |
| Empty Air Flowing speed | ≥0.3m/s in empty booth |
| Air Control method | One manual damper for air inlet and exhausted system |
| Air Intake ducting | 8 meters air ducting and one weather hood, 2 sets offset |
| Air exhausted ducting | 8 meters air ducting, one flop damper and one weatherproof,2 offset |
| Purification System | Pre-filter | G3 grade, M-shape fiber glass filter |
| Ceiling filter | EU5 / F5 |
| Floor filter | green fiber glass filter / G3 grade |
| Exhausted fan Filters | M green fiber glass filter. |
| | Change filter area | From spray booth cabin inside doors |
| Heating System | Heat Exchanger | SUS304 stainless steel material, argon arc welding. |
| Heating burner: | Riello FS20 gas burner |
| Heating productivity | 180000Kcal/h |
| Spray to baking switch | 20N BELIMO brand electrical damper |
| Chimney ducting | 8 meters stainless steel ducting and one chimney elbow |
| Max heating temperature | 80ºC |
| Heating time | 4-6min(20-60ºC) |
| Gas consumption(m³/h) | 8--12 |
| Lighting System | Ceiling lights | 40pcs* 36W Philips lamps |
| Light box type | Externally open |
| Illumination | ≥800LUX |
| Controlling system | Button type control panel | spraying&baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge, air switch |
Prep-station Booth Specification Model:JZJ-6500-PS (Australian standard)| Outside Dimension (mm) | 8200×4600×3800(L*W*H) | Inside Dimension(mm) | 6900×4500×3000(L*W*H) |
| Access Door(mm) | Manual curtain | Service door (mm) | 800*2000(W*H) |
| Total Power | 17KW | Service door (mm) | 550*1900(W*H) |
| Cabin system | Wall panel | 50mmEPS panel, double face steel sheet thickness: 0.6mm |
| Ceiling panel | Galvanized steel plate |
| Basement | 300mm depth, full galvanized grids |
| Basement bearing capacity | 5T |
| Glass | 6mm safety tempered & square glass |
| Windows | Square glass Windows |
| Air Make-up System | Air Inlet fan system | 1*5.5kw turbo fan, explosion-proof motor |
| Exhausted fan system | 1*5.5kw turbo fan, explosion-proof motor |
| Fresh air capacity | 20000m3/h |
| Air extraction capacity | 20000m3/h |
| Empty Air Flowing speed | ≥0.2m/s in empty booth |
| Air Control method | One manual damper for air inlet and exhausted system |
| Air Intake ducting | 8 meters air ducting and two offset and one weather hood |
| Air exhausted ducting | 8 meters air ducting and two offset and one flop damper. |
| Purification System | Pre-filter | G3 grade, Pockets |
| Ceiling filter | EU5 / F5 |
| Floor filter | green fiber glass filter / G3 grade |
| Exhausted fan Filters | M green fiber glass filter. |
| | Change filter area | From spray booth cabin inside doors |
| Lighting System | Ceiling lights | 40pcs* 36W Philips lamps |
| Light box type | Externally open |
| Illumination | ≥800LUX |
| Controlling system | Button type control panel | Exhausted switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
| | | | | |
Paint Mixing Room Specification Model:JZJ-PM (Australian standard)| Outside Dimension (mm) | 7000×3460×3800(L*W*H) | Inside Dimension(mm) | 6900×3410×2650(L*W*H) |
| Service door (mm) | 800*2000(W*H) |
| Total Power | 3KW |
| Cabin system | Wall panel | 50mmEPS panel, double face steel sheet thickness: 0.6mm |
| Ceiling panel | 50mm EPS, double face steel sheet thickness: 0.6mm |
| Basement | 300mm with checkered plates |
| Air Make-up System | Air Inlet fan system | Panel side has Opening as the drawing |
| Exhausted fan system | 1*2.2kw axial fan,Model T30-4C |
| Air extraction capacity | 6000m3/h |
| Air exhausted ducting | 8 meters air ducting, 1 manual air damper&1circumference |
| Lighting System | Ceiling lights | 10pcs* 36W Philips lamps |
| Light box type | Externally open |
| Illumination | ≥600LUX |
| Controlling system | Button type control panel | Power on/off switch, lighting switch, fan switch |
