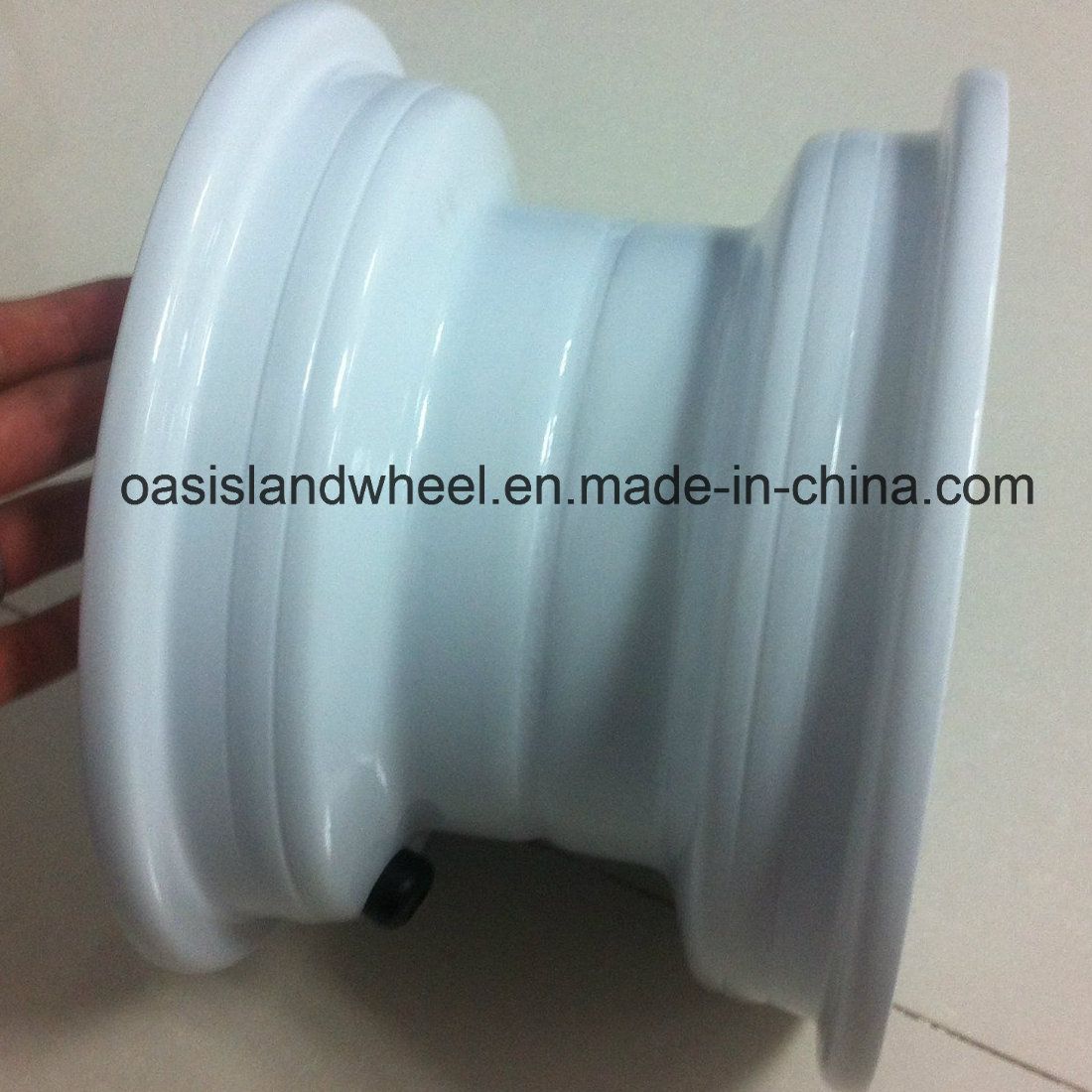

Lawn and garden wheel (6x3.25) for turf equipment
Use this wheel for 13x5-6 tires.
To determine width of rim (3.25), measure inside, bead to bead, NOT outside to outside.
Application: Turf, garden, Agriculture
Specification:
| SIZE | Hub length | Hub center | Offse | Tire |
| 5x2.5 | | 35 | 0 | 4.10/3.50-5 |
| 5x3.0 | | 35 | 0 | 4.10/3.50-5 |
| 6x2.5 | | 35/30 | 0 | 4.10/3.50-6 |
| 6x3.25 | | 35/30 | 0 | 13x5-6 |
| 6x3.5 | | 35 | 3 | 13x5-6 |
| 6x4.5 | | 35 | 0 | 15x6-6,13x6.5-6 |
| Product Code | Wheel Size | P.C.D | bolt Hole | Center Hole | Offset |
| 12085001 | 12×8.5 | Φ114.3 | 5-Φ12 | Φ79.5 | 10 |
| 12085002 | 12×8.5 | Φ101.6 | 4-Φ14 | Φ63.5 | -32.5 |
| 12085003 | 12×8.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 | 0 |
| 12085004 | 12×8.5 | Φ101.6 | 4-Φ14 | Φ63.5 | -32.5 |
| 12085006 | 12×8.5 | Φ110 | 4-Φ14.8 | Φ68.5 | 0 |
| 12085007 | 12×8.5 | Φ101.6 | 4-Φ14.3 | Φ68.5 | -19.1 |
| 12085008 | 12×8.5 | Φ114.3 | 5-Φ12 | Φ79.5 | -61.5 |
| 12085010 | 12×8.5 | Φ101.6 | 4-Φ14.3 | Φ72 | -37.3 |
| 12085011 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ81 | 10 |
| 12085012 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ81 | -44.5 |
| 12085013 | 12×8.5 | Φ101.6 | 4-Φ14.8 | Φ72 | -32 |
| 12085016 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ81 | 0 |
| 12085019 | 12×8.5 | Φ101.6 | 4-Φ14 | Φ63.5 | -40.5 |
| 12085020 | 12×8.5 | Φ114.3 | 5-Φ12 | Φ79.5 | 91.19 |
| 12085022 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ81 | -63.5 |
| 12085025 | 12×8.5 | Φ114.3 | 5-Φ12 | Φ79.5 | 19 |
| 12085026 | 12×8.5 | Φ114.3 | 5-Φ12 | Φ79.5 | -35.8 |
| 12085027 | 12×8.5 | Φ140 | 5-Φ18.5 | Φ94.5 | 0 |
| 12085028 | 12×8.5 | Φ101.6 | 4-Φ17.8 | Φ63.5 | -37.3 |
| 12085029 | 12×8.5 | Φ114.3 | 5-Φ12 | Φ79.5 | -15 |
| 12085031 | 12×8.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 | 0 |
| 12085033 | 12×8.5 | Φ110 | 4-Φ10 | Φ72 | -94.7 |
| 12085034 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ72 | -20.6 |
| 12085035 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ72 | 44.8 |
| 12085036 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ72 | 17 |
| 12085037 | 12×8.5 | Φ101.6 | 4-Φ14.3 | Φ72 | 0 |
| 12085039 | 12×8.5 | Φ152.4 | 6-Φ15 | Φ118 | 29.2 |
| 12085040 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ81 | 5.6 |
| 12085044 | 12×8.5 | Φ101.6 | 4-Φ14.3 | Φ72 | 0 |
| 12085046 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ79.5 | -17.5 |
| 12085047 | 12×8.5 | Φ101.6 | 4-Φ14.3 | Φ72 | -17 |
| 12085050 | 12×8.5 | Φ101.6 | 4-Φ14.3 | Φ72 | 25.4 |
| 12085052 | 12×8.5 | Φ101.6 | 4-Φ14.3 | Φ72 | 50.8 |
| 12085054 | 12×8.5 | Φ114.3 | 5-Φ12 | Φ79.5 | -20 |
| 12085055 | 12×8.5 | Φ101.6 | 4-Φ14.8 | Φ72 | -21.6 |
| 12085056 | 12×8.5 | Φ114.3 | 5-Φ14.3 | Φ75 | 0 |
| 12085057 | 12×8.5 | Φ101.6 | 4-Φ14.3 | Φ68.5 | -44.5 |
| 12085062 | 12×8.5 | Φ120 | 6-Φ12.5 | Φ50 | 0 |
| 12085063 | 12×8.5 | Φ110 | 4-Φ13.5 | Φ68.5 | 38 |
| 12085066 | 12×8.5 | Φ114.3 | 5-Φ12 | Φ79.5 | 10 |
| Wheel Size | P.C.D | bolt Hole | Center Hole |
| 12×10.5 | Φ114.3 | 5-Φ12 | Φ79.5 |
| 12×10.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 |
| 12×10.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 |
| 12×10.5 | Φ114.3 | 5-Φ12 | Φ79.5 |
| 12×10.5 | Φ152.4 | 6-Φ15 | Φ118 |
| 12×10.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 |
| 12×10.5 | Φ114.3 | 5-Φ12 | Φ79.5 |
| 12×10.5 | Φ114.3 | 5-Φ12 | Φ79.5 |
| 12×10.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 |
| 12×10.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 |
| 12×10.5 | Φ152.4 | 6-Φ15 | Φ118 |
| 12×10.5 | Φ100 | 5-Φ13.5 | Φ65 |
| 12×10.5 | Φ114.3 | 5-Φ13.5 | Φ79.8 |
| 12×10.5 | Φ140 | 5-Φ18.5 | Φ94.5 |
| 12×10.5 | Φ140 | 5-Φ18.5 | Φ94.5 |
| 12×10.5 | Φ203.2 | 8-Φ15 | Φ153.9 |
| 12×10.5 | Φ203.2 | 8-Φ15 | Φ153.9 |
| 12×10.5 | Φ114.3 | 5-Φ14.3 | Φ81 |
| 12×10.5 | Φ152.4 | 6-Φ15 | Φ118 |
| 12×10.5 | Φ112 | 5-Φ19.5 | Φ66.5 |
| 12×10.5 | Φ114.3 | 5-Φ12 | Φ79.5 |
| 12×10.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 |
| 12×10.5 | Φ100 | 5-Φ13.5 | Φ65 |
| 12×10.5 | Φ140 | 5-Φ18.5 | Φ94.5 |
| 12×10.5 | Φ203.2 | 8-Φ15 | Φ153.9 |
| 12×10.5 | Φ101.6 | 4-Φ14.8 | Φ72 |
| 12×10.5 | Φ114.3 | 5-Φ13.5 | Φ79.5 |
| 12×10.5 | Φ110 | 4-Φ13.5 | Φ68.5 |
Assembly Service: Available
Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials
All products we supply will be with quality and guarantee...
For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.
For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.
Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
