Launch Tlt240sba 2 Post Lifts Standard Floor Plate Two Post Lift

Name: Launch Tlt240sba 2 Post Lifts Standard Floor Plate Two Post Lift
Brand: ibuyautoparts.com
SKU: 700237365
Availability: InStock
Rating: 5 (39 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

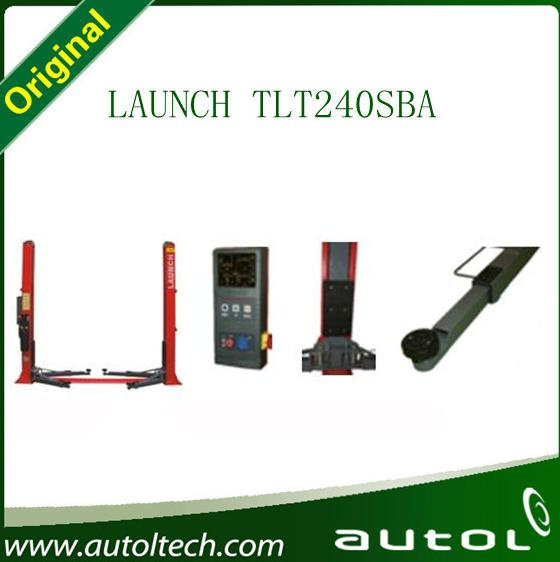

LAUNCH TLT240SBA

Standard Floor Plate Two Post Lift (Rated Capacity: 4.0Ton)
Dual hydraulic cylinders drive, stable lifting and lowering. Adopt two steel cables for equalization, force two carriages to move synchronously.

Rated load capacity: 4000KG
Lifting height: 1880mm
Bottom clearance: 110mm
Foundation: 520 x 380mm
Clear span between: 2586mm
Drive-through width: 2336mm
Overall width: 3270mm
Quantity of oil: 10I
Power supply voltage: 380/50 220/50V/HZ

Spare Parts
No. PartCode PartName
1 103260123 Main cylinder
2 103260129 Sub cylinder
3 103200939 Steel chain
4 103200938 Chain threaded end
5 201020548 Carriage
6 104990103 Sliding block
7 201020497 Swing arm
8 104130186 Rubber pad on arm
9 104130189 Rubber pad
10 201020249 control box
11 201020542 TLT240SBA powerside column
12 103200959 TLT240SBA Long electromagnet, combinatorial components(old)
13 201020546 TLT240SBA offside column
14 201011195 Protective cover inside the column
15 103200937 Screw
16 201020391 Floor plate
17 201020390 Floor plate cover
18 201020381 Top cover assembly
19 104090045 Pulley
20 201011165 Bracket 0f power unit
21 103200960 Electromagnet
22 104120078 Electromagnet cover
23 103020117 Anchor bolt M19X140
24 103260126 Steel cable
25 103990095 Power unit
26 104120076 Oil hose L=1440
27 103100168 Long fitting
28 104120079 Oil hose L=2750
29 103990087 China-made pump unit 380V/3PH/50Hz/10L/Eletric
30 103990261 China-made pump unit(415V/3PH/50Hz)

Prod Model:	LAUNCH TLT240SBA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Launch Tlt240sba:	Launch Tlt240sba
Two Post Lift:	Two Post Lift
Post Lift:	Post Lift
Floor Plate Two Post Lift:	Floor Plate Two Post Lift
Price:	Factory
Car Lift:	Car Lift
Tlt240sba:	Tlt240sba
Diagnostic Tool Type:	Car Lift
Update Method:	by Hard Disk
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	3.5T
Certification:	CE
Design:	Two Post
Brand:	Launch
