High Quality Automotive Injector Cleaner & Tester CNC-600 Fuel Injector Cleaner 110V and 220V

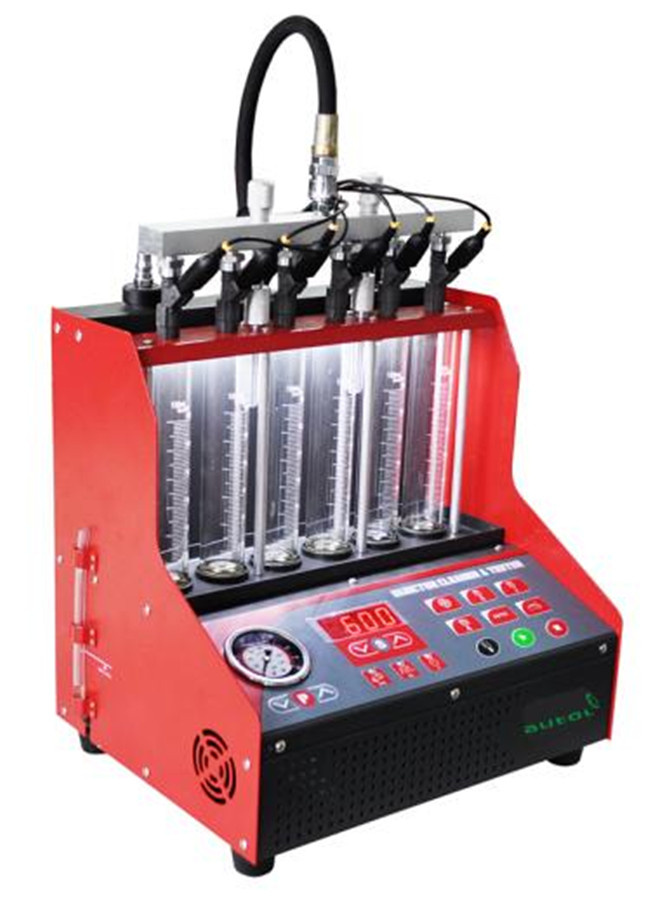

CNC-600 is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

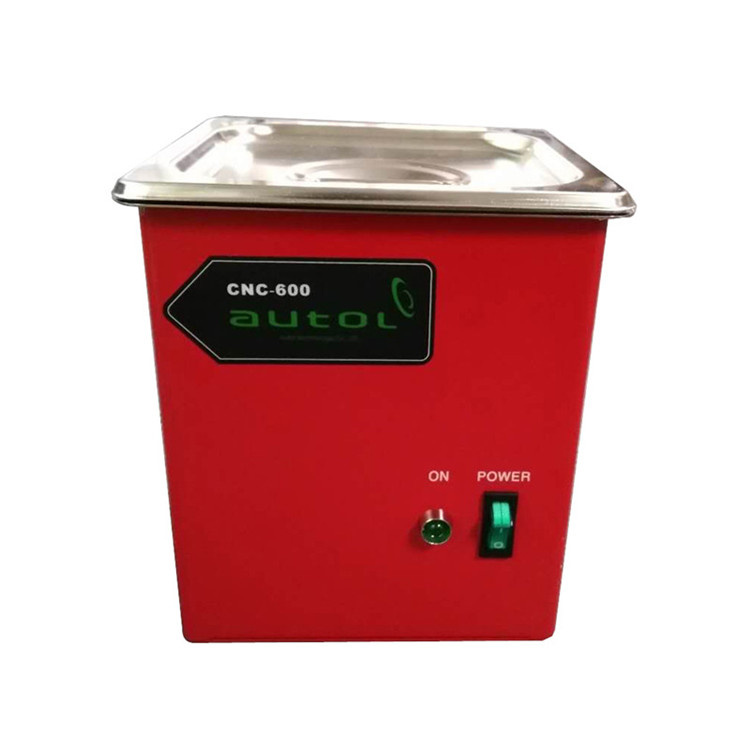

1 Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2 Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3 Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4 Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
5 Auto. Test: To test injectors by simulating different working conditions.
6 On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.


CNC Series
Injector Cleaner & Tester
Injector cleaning
Injector testing
On-vehicle cleaning (optional)

Functions
Direct flush
Reverse flush
Ultrasonic cleaning
On-vehicle cleaning (optional adapters)
Spray ability test
Uniformity test
Leakage test
Injecting flow test
Electronic drain

Features
Optimization structure design
LED backlight
Be equipped with cooling fan
Special material seals
Friendly interface

Remark: Standard Package Of CNC600 Is Not With any liquid ( Testing and cleaning liquid )due to the regulation of Chinese Customs, Please note.


Specifications

Power supply	AC110V~50/60Hz
Input power of main unit	200W
Ultrasonic cleaner power	60W
Pressure	0~7bar
Accuracy of tube	±2%
RPM range	0~9999rpm, step: 10 rpm
PW range	0.1~30ms, step: 0.1ms
Timing	1~30min

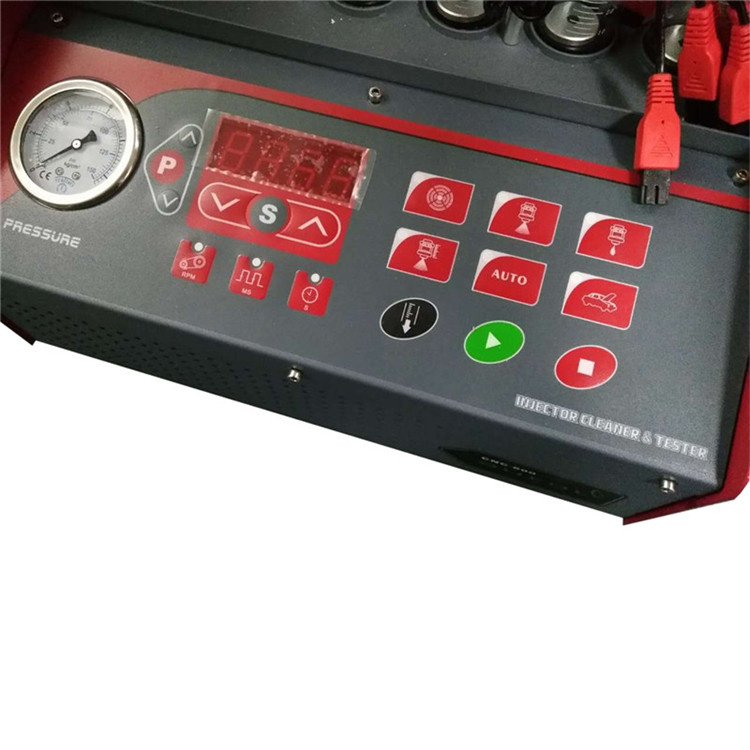

LED display
LED background light
Membrane keypad

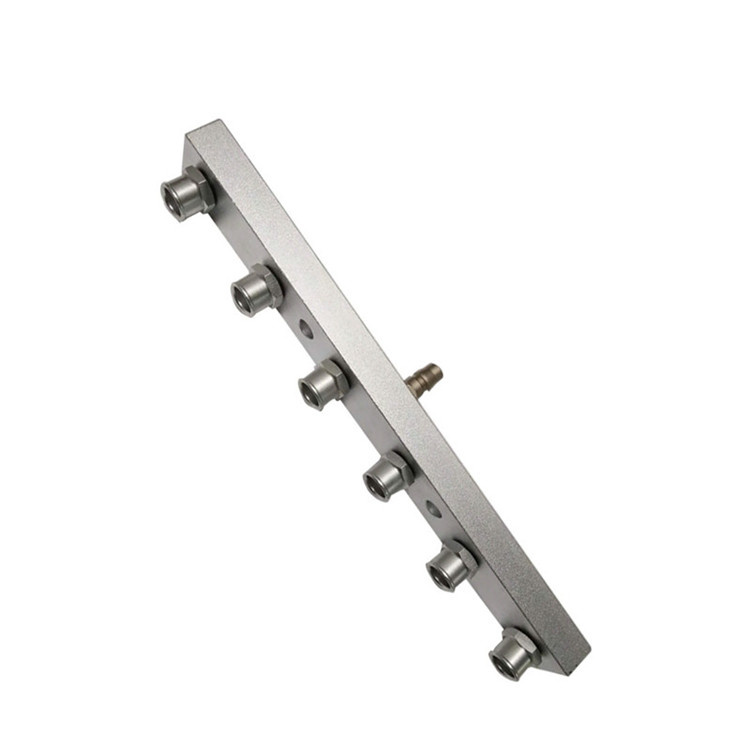

Top-supply fuel distributor
