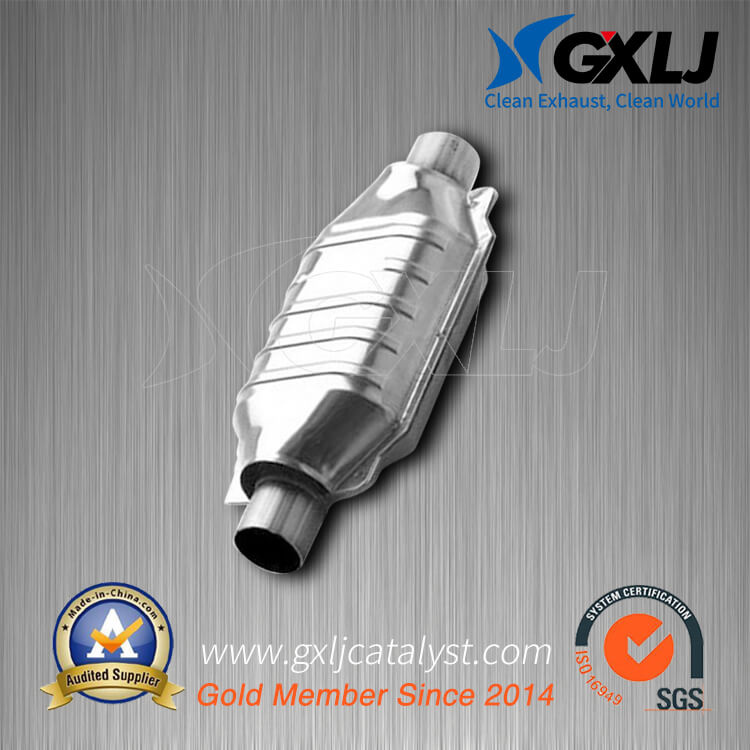

Land Cruiser 4.5L Catalytic Converter for Toyota

Name: Land Cruiser 4.5L Catalytic Converter for Toyota
Brand: ibuyautoparts.com
SKU: 803995485
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	US $ 350-1350/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Brand	GXLJ
Product	TOYOTA Land Cruiser 4.5L Catalytic Converter
Material	Cordierite, mullite, corundum-mullite
Advantage	1. Thin wall of hole 2. Large surface area 3. Back pressure small 4. High compressive strength 5. Small thermal expansion coefficient 6. High temperature resistance(melting point 1400degree) 7. Good Heat resistant to impact ,seismic performance 8. Have a good match and all sorts of catalyst active component 9. Good Cold start performance,Low light-off temperature, fast temperature elevation,Small resistance of gas,high conversion rate
Application	Used for engine exhaust gas purification system of ceramic catalyst carrier/support. The carrier surface coated with a catalyst, in the automobile exhaust through, will be harmful ingredients such as HC, CO, NOX in the exhaust into harmless ingredients. Eliminate organic exhaust gas and odour
Pore density	25-600CPSI
Pore shapes	Circular, rectangular and triangle
Sectional shape	Circular, square, rectangular, oval, lane-shape and special-shape
Emission Standard	Euro III, Euro IV, Euro V.
Delivery terms	FOB, CIF, CFR, DDP, EXW
Payment terms	By T/T, 100% after sign the contract or 40% down payment before production, 60% balance before delivery.
Delivery time	Within 30-45 days after receiver payment.
Packing	Corrugated carton, wooden box, pallet, as per customer's request.

Different formulas for your selection, it's economics of emissions compliance products.
More details and further information, pls chk it out with us.

Property of Cordierite honeycomb ceramic

Material	Cordierite
Structure property	Cell type		--	Square
	Number of cell		Cell/in2	100	200	300	400
	Cell distance		mm	2.54	1.75	1.47	1.27
	Thickness of wall		mm	0.43	0.32	0.25	0.17
	Hole fraction		%	63	68	63	71
	Porous density		g/cm3	0.71	0.55	0.60	0.43
	Geometric surface area		mm2/mm3	13.0	18.9	21.7	26.8
Physics property	True density		--	2.0
	Water absorption	Normal	wt%	20~24
		Boiling	wt%	27~35
	Coefficient of thermal expansion(40~800ºC)		X10-6/ºC	<1.5
	Softening temperature		ºC	≥1380
	Compressive strength		Mpa	>9.9

Runway Model ( oval )	φ16985.7127	Round	φ150*100
	φ14884127		φ150*75
	φ144.88176.2		φ125*130
	φ144.881.375		φ144*152
	φ12763.5127		φ118*152
	φ1458080		φ106*150
	φ936190		φ106*100
	φ120.68065		φ103*100
	φ1208075		φ101.6*100
	φ1479675		φ100*100
	φ10010075		φ93*130
	φ505025		φ125*100
	Ellipse broad 80long φ153100		φ125*130

General specification:

Project		Index
		CFT-02(260 holes)		CFT-03(300 holes)		CFT-04(400holes)	CFT-06(600 holes)
Density KG/dm(g/cm³)		≤0.70
Water absorption%		20-27
Temperature compressive strength KN/cm²	X direction ( the direction perpendicular to the line X in channel )	≥50		≥50		≥65
	Y direction ( perpendicular to the line direction Y of the bore )	≥160		≥180		≥200
Coefficient of thermal expansion ( line ) (20-800ºC)		≤1.50*10^6
0.1Mpa RUL ºC		>1450
Air-cooled thermal stability of 800 ºC		≥3
The apparent surface area cm²/cm³		≥20
Chemical composition range (%)		AI2O3	SiO2	MgO	K.Na2O	Fe2O2		other
		31-34	48-51	12-14	<1	<0.5		<1
Specific heat 20-100ºC J/KG.K		800-900	800-950	800-1200	750-800	850-1100		840-920
Thermal conductivity 20-100ºC W/m.k		1.5-2.5	1.4-2.0	1.5-2.5	1.5-1.5	1.5-2.3		1.0-1.2

Prod Model:	BHLJ-S-C-Y113
Country Of Origin:	Beihai, Guangxi, China
Oxidation Reaction:	Hc + O2 = H2O + CO2
Reduction Reaction:	Nox + Hc + Co = N2 + H2O + CO2
Scope:	Suitable for Gas Fuel Engines
Function:	Engine Exhaust Gas Purification
Usage:	Special Equipment
Processing Methods:	Physics and Chemistry
Pullution Sources:	Air Pollution Control
Air Pollution Control Equipment Type:	Gaseous Pollution Purification Equipment
Structure:	Equipment
Discharge Standard:	Euro IV
Certification:	TS16949
Component:	Catalytic Converter
Main Market:	World Wide
Body Material:	Ceramic

General Description

Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.

Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.

GXLJ Catalytic Converter

Advantage

Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.

By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.

GXLJ Catalyst for Exhaust emissions

Advantage

GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.

With our cores you'll also experience additional advantages:

1. They are more cost effective in larger diameters

2. They have a quicker "light off"

3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density

4. They provide more cost effective canning methods

5. Reduction of overall size of packaging

6. Can be produced to weld directly in exhaust system

7. They have higher thermal shock resistance

Welcome to consult us!
