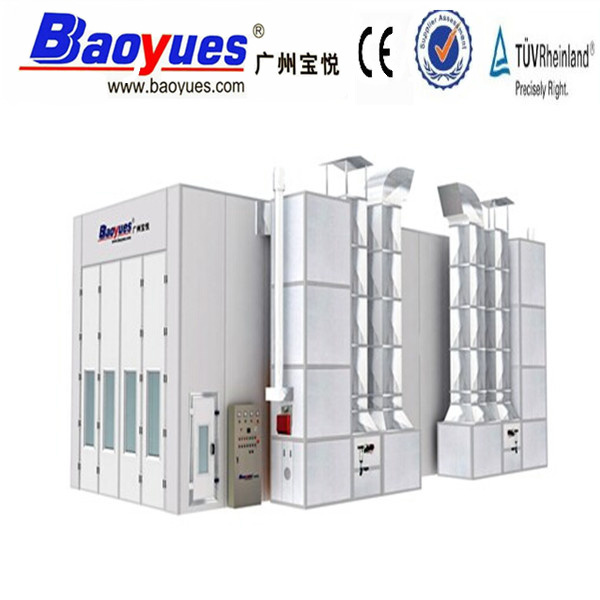

Lager Size 15m Spray Booth, Truck Paint Booth for Sale (CE)
| Price: |
US $ 20000-30000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BY-15-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Truck Paint Booth |
| Color: |
Orange |
| Voltage: |
1X220V,3X380V,50Hz |
| Purification: |
≥95% |
| Noise Db (a): |
≤70 |
| Air Capacity: |
3000m3/H |
| Free Air Speed: |
≥0.3m/S |
| Frequency Of Air Change: |
≥294 Time /H |
| Safety: |
with Pressure Emergency Door |
| Max Heating Productivity: |
520000kcal/H |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CSA |
| Condition: |
New |
| Type: |
Truck Paint Booth |
| Brand: |
Baoyue |
Product Description
Description
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Our service
1. Professional vehicle equipment supplier.
2. Continuous development of new products.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system & good reputation in the market.
Company: Professional manufacturer and competitive factory price, we can control of the production cycle and product quality very good
Our products had sold to Australia, Germany, Nigeria, Philippine, Romania, Singapore, Russian Federation, Kingdom of Saudi Arabia, The United Arab Emirates, etc...
Spray booth conveying and storage:
As spray booth are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.
Other trading conditions and terms, please find below:
A: Payment term: T/T 50% in advance after order confirmed, 50% in balance before shipment.
B: Delivery time: To effect shipment within 15 days after receipt of deposit.
C: Warranty time: 1 years. During the warranty time, any time, any problem caused by products' quality, BAOYUE has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier. Enclosed please kindly find the BAOYUE guarantee & after-sales services clause.
|
Item |
Detailed Specification |
|
Inside dimension |
15000×5000×5000 mm (L×W×H) |
|
Outside dimension |
15140×6640×5600mm (L×W×H) |
|
Front door |
Folding door, 4 folds, 4000×4500 mm (W×H), galvanized steel frame, cold plate powder coated window frame, white colour. |
|
Emergency door |
2 units, 800×2000mm (W×H), colour: white. |
|
Basement |
No steel basement, 2 lines pits in the ground for the exhaust, size of each pit: 13850 × 760mm (L×W), with galvanized twisted grilles above. |
|
Wall panel |
Profiled bar beams in the roof to strengthen the room body, thickness: 70mm, width:1150mm,
tongue and groove structure, 0.476mm colour steel with EPS inside, colour: white. |
|
Light |
Ceiling Lights: 18Units×4Pcs=72Pcs×36W, side lights: 12Units×2Pcs=48Pcs×36W, up and
down interleaving installation, with electronic ballasts, lighting boxes are powered coated |
|
Generator cabinet |
Intake from back upper, exhaust from rear upper, quadrate steel frame; white machine-made
panel covered, filled with heat preservation material inside. |
Intake and Exhaust
system
|
Inlet: 2×11KW turbo fan, air capacity for each fan: 30000m3/h. |
Outlet: 2×11KW turbo fan, air capacity for each fan: 30000m3/h.. Manual damper, 16m ducts, 2
pcs 900 bend, 2 pcs 300 bend, 2 pcs intake hoop. |
|
Heating system |
2 sets Italy RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper
actuates from spraying to baking cycle. Max. heating productivity: 520000kcal/h, max
temperature: 80°C, 8pcs chimney, 2 pcs bend |
|
Purification system |
Pre-filter (pocket type), ceiling filter, fibreglass filter, activated carbon filter (pocket type). |
|
Roof |
50mm EPS panel. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power
supply switch, emergency stop, hour meater, temperature limiter, all motors is reduced voltage
starting. |
|
Total power |
50KW (Power supply 1×220V, 3×380V, 50HZ) |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
