L8096 Product Name: a Free Tyre Dismounting Machine

Name: L8096 Product Name: a Free Tyre Dismounting Machine
Brand: ibuyautoparts.com
SKU: 725105032
Availability: InStock
Rating: 4.5 (24 reviews)

Price:	US $ 6660/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Name: a free tyre dismounting machine
Item number: L8096
Product description:

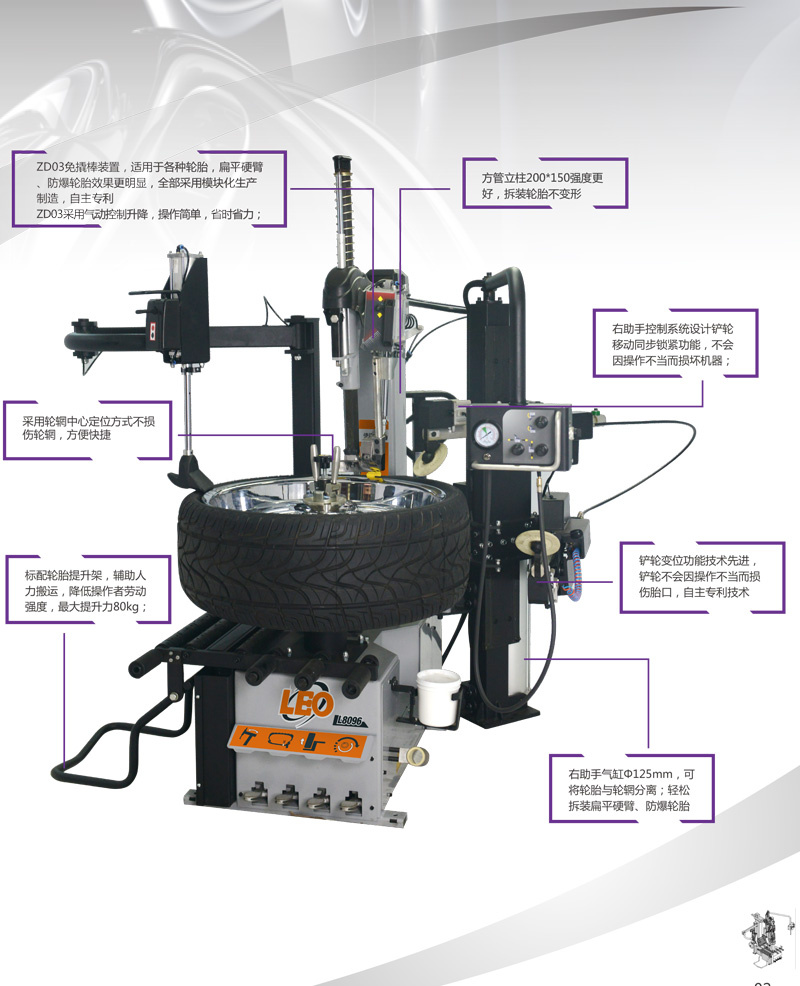

1. ZD03 free. System, can be used for a variety of flat tire, rigid arm, better tyre effect, fully modular production, ZD03 is controlled by pneumatic lifting, convenient operation, saving time and labor intensity. Better 200*150 mm square column, tire deformation.
2. spindle adopts rim center positioning mode, not operation tyre rim, convenient and quick
3. right assistant design shovel wheel mobile synchronous locking function, not because of improper operation and damage to the machine
4. the shovel wheel deflection function of advanced technology, the shovel wheel not due to improper operation of the tyre opening operation, right assistant lifting cylinder 125 mm caliber, its strength and power to ensure the normal separation of tire and rim, easy to disassemble wide, flat tires and explosion-proof tires.
5. lifting power 80KG weight lifting device to ensure the ease of operation of staff

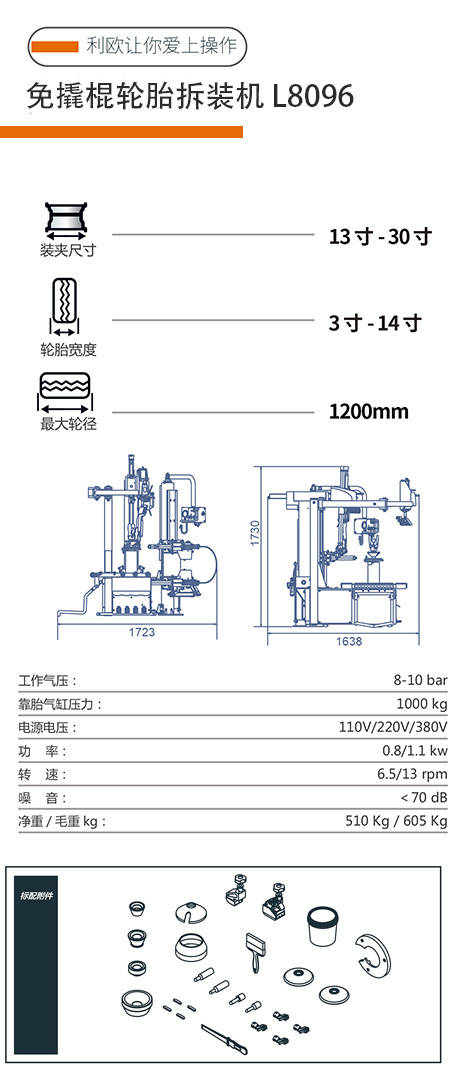

6. main technical parameters
(1) outer clamp Rim: 10-30 inches,
(2) inner rim: 10-30 inches
(3) tyre width: 3-14 inches
(4) maximum tire diameter: 1200mm
(5) working air pressure: 8-10bar
(6) cylinder pressure by tire shovel: 1000kg
(7) working voltage: 110v/220v/380v-50hz/60hz
(8) motor power: 0.8/1.1kw
(9) spindle speed: 6.5/13rpm
(10) bath sound: <70Db
(11) net weight / gross weight 510kg/605kg
(12) standard accessories: see illustration

Prod Model:	L8096
Certification:	ISO
Condition:	New

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
