Cuv Friend Tire Changer 3305+CF01

Name: Cuv Friend Tire Changer 3305+CF01
Brand: ibuyautoparts.com
SKU: 731323442
Availability: InStock
Rating: 4.7 (70 reviews)

Price:	US $ 1100-1200/Piece
Min Order:	72/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

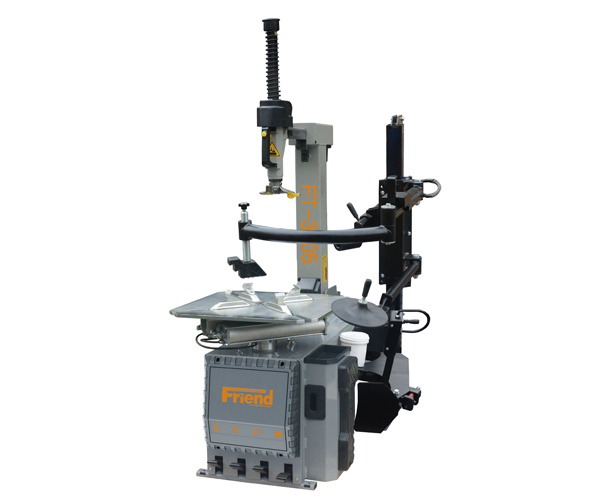

Tire removal machine: 3305-CF01
Features

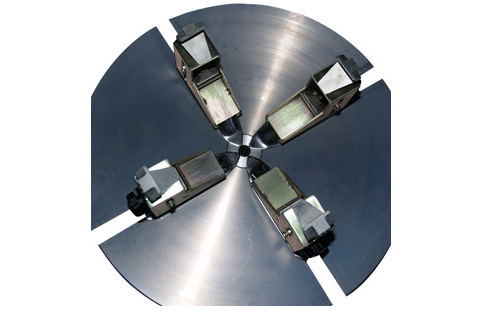

· Claw made of special materials, durable

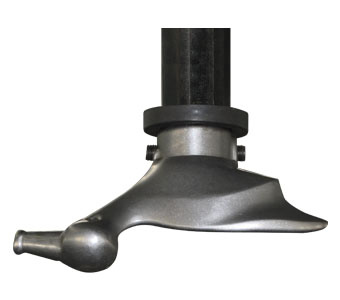

Alloy disassembly head, wear-resistant, impact-resistant, plus protective cover, protect the wheel
· Pneumatic shovel arm designed according to ergonomics, equipped with a control handle, the operation is more simple, according to the actual tire size to adjust the angle
Pneumatic control post backward, automatic positioning, pneumatic dual locking function
· Hexagon strut made of S41 hexagonal steel to ensure that the machine does not deform when the tire is disassembled
Aluminum five-way valve, durable, high reliability
Increased thickened by tire pads
· Standard right auxiliary arm to facilitate the removal of the tire
* Front foot removable face, when the chassis at the failure, easy maintenance

Product performance
Large material aluminum alloy
Maximum tire diameter 45 "
Maximum tire width 16 "
Internal card size 14 "-28"
Card size 12 "-25"
Options: Motorcycle Fixture: 14 "-23" ATV Fixture: 8 "-17"
Voltage 110V / 220V / 380V 1Ph / 3Ph 50 / 60Hz
Pressure 8-10Bar
Motor 0.75KW-1.1KW
Noise <75dB

Product packaging
Size 820 * 960 * 1150mm
Gross 327KG
Net weight 300KG

Standard accessories
Plastic block 2 pcs
Bird head protection block 4 pcs
Plastic plate claw protection block 4 pcs
Standard crowbar 1pc
Inflatable gun with table 1 pc
Standard oil and water separator 1 pc
Water box 1 pc

Standard accessories
Plastic block 2 pcs
Bird head protection block 4 pcs
Plastic big plate claw protection block 4 pcs
A standard 1pc
Air gun with 1 PC
Standard oil and water separator 1 PC
Water and oil box 1 PC

The optional parts are as follows:

The following is the original mounting head, products strictly passed North American TUV certification system.

Prod Model:	3305+cf01
Certification:	ISO
Condition:	New

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
