L8007+241 a Free Swinging Arm Type Tyre Dismounting Machine

Name: L8007+241 a Free Swinging Arm Type Tyre Dismounting Machine
Brand: ibuyautoparts.com
SKU: 725124602
Availability: InStock
Rating: 5 (101 reviews)

Price:	US $ 2500/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

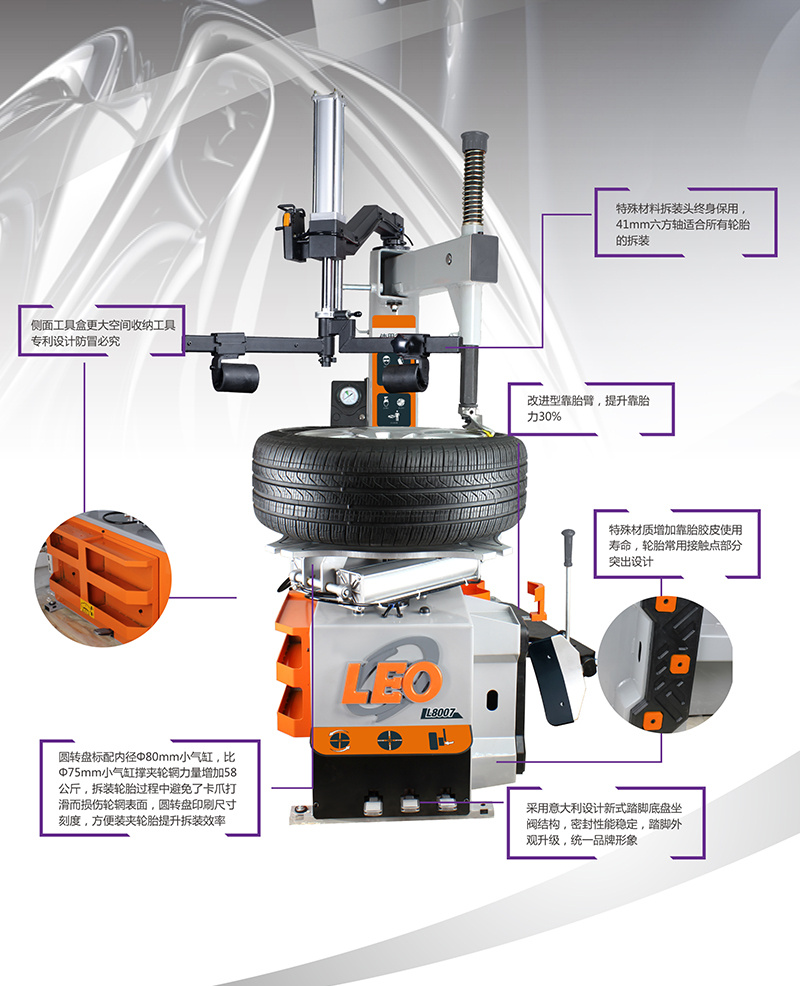

Product Name: a free swinging arm type tyre dismounting machine
Item number: L8007+241
Product description:
1., the use of Italy design, new foot chassis seat valve structure, stable sealing performance, stepping foot appearance upgrade, unified version of the image
2. yuan standard diameter of 80 mm diameter turntable, the 58KG cylinder clamping force is raised rim than 75 mm diameter cylinder, tire process avoids the rim in the claw slipped, thereby reducing the probability of rim injury.
3., the use of special materials produced by the tire rubber to enhance its service life, the tire common contact point design structure to enhance the pressure when the tire pressure
4. side tool box, larger space storage tools, patent design
5.41 mm six square shaft is more suitable for hard arm flat and all kinds of explosion-proof tire assembly and disassembly
6. , the disassembly and assembly mechanism ZD03 adopts pneumatic control to lift, improve the operation efficiency, make the work simple, save time and effort

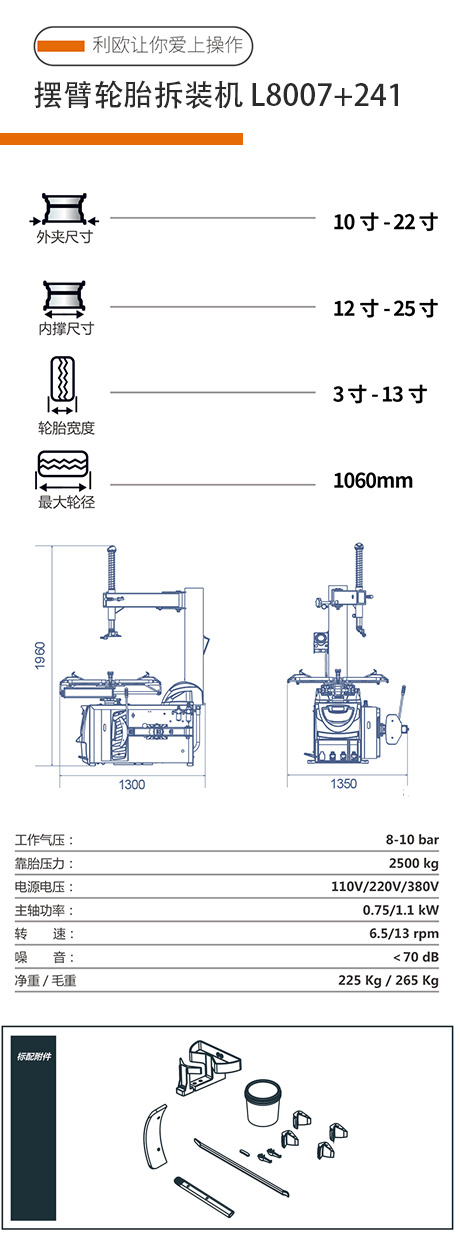

7. main technical parameters
(1) outer clamp Rim: 10-22 inches or optional (11-24 inches)
(2) inner rim: 12-25 inches or optional (12-26 inches)
(3) tyre width: 3-13 inches
(4) maximum tire diameter: 1060MM
(5) working air pressure: 8-10bar
(6) cylinder pressure by tire shovel: 2500kg
(7) working voltage: 110v/220v/380v-50hz/60hz
(8) motor power: 0.75/1.1kw
(9) turntable speed: 6.5/13rpm
(10) bath sound: <70Db
(11) net weight / gross weight 225kg/265kg
(12). Standard accessories: oiler, claw sleeve, and a set of tire levers, shovel, mounting head pad, tire auxiliary device for each one.

Prod Model:	L8007+241
Certification:	CE
Condition:	New

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
