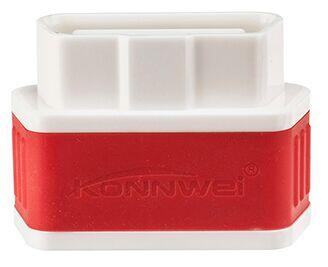

Konnwei Kw903 Bluetooth 4.0 Car OBD2 Diagnostic Scan Tool
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
KW903 ELM327 Bluetooth Car OBD2 OBDII Auto Fault Diagnostic Tool
Work on petrol car ,and the car make in after 2000 year (5 Color for Choice)
Parameter:| Supply voltage(VDD) | 12V |
| Work temperature range | -20 ~ +70'C |
| Storage temperature range | -40 ~ +125'C |
| RF sensitivity(Basic Rate) | -85db |
| Modulation Mode | GFSK |
| Frequency Range | 2402 ~ 2480MHZ |
| Transmission Range | 10M |
| Bluetooth Profile | SPP |
| UART Params | 38400,8,n,1 |
Features
* Small size, compact structure. Plug and never unplug
* Stable wireless connection
* No wires or batteries (adapter is powered by the diagnosis size sockets)
* Stop communication, wait half an hour, auto sleep
* Supports all OBDII protocols
* The adapter uses the fastest and most reliable ARM chips
The device is a small adapter that plugged into the vehicle OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone, With associated diagnostic procedures . Doing these simple operations, you will be able:
* Measure the fuel consumption.
* Display real-time operating performance of the car, such as momentum,
vehicle speed, oil pressure, coolant temperature, engine load, intake manifold
pressure, throttle position, the values of oxygen sensors, air intake
temperature, and more.
* Turn off the MIL (signal Check Engine).
* Download data to external media in a variety of formats for later printing.
* Record various parameters, display graphics in real time, and more.
With kw903 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
kw903 scantool is a high-quality automotive scanning tool, supports all OBD-II protocols :
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
| Prod Model: |
SC01-F02 |
| Product Name: |
Konnwei Kw903 Elm327 Bluetooth |
| Shipment: |
DHL,EMS,HK Post,China Post ,UPS .etc |
| Connect Way: |
Via Bluetooth |
| Special Features: |
Code Readers & Scan Tools |
| Operation System: |
Android&PC |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
