| Prod Model: |
K03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
8140.43.2200 Euro 3 |
| Part No.: |
53039880081 |
| Kw: |
94/128 |
| Displacement: |
2.8L, 2800 CCM |
| Shaft Material: |
K18 |
| Balanced: |
High Balanced with Turbo Technics |
| Body Material: |
Iron |
| Certification: |
CE |
| Type: |

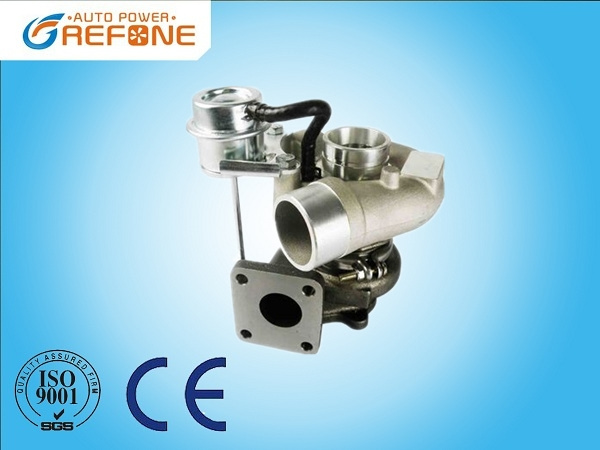

Turbocharger |
| Application: |
Citroen Jumper, FIAT Ducato, Peugeot Boxer |
Product Description
Product Description
Part Number | 53039880081 |
| Previous Version | 5303-988-0081, 53039880054 |
| OE number | 500364493, 0375F6, 500344801 |
| Year | 2003-04 |
| Description | Commercial |
| Manufacturer Part Number | 53039700081, 53039700054, 5303-970-0081, 5303-970-0054 |
| CHRA | 53037100522 (5303-710-0522) |
| Turbo Model | K03-2076CCA6.88KCAXD |
| Engine | 8140.43.2200 Euro 3 |
| Manufacturer Engine | Iveco |
| Displacement | 2.8L, 2800 ccm |
| KW | 94/128 |
| RPM Max | 3600 |
| Fuel | Diesel |
| Angle α (compressor housing) | 265 |
| Angle β (turbine housing) | 230 |
| Bearing Housing | 53041500011 |
| Turbine Wheel | 53031205023/53031205010 (Inducer: 43.0 mm Exducer: 38.4 mm Tip Height: 6.89 mm Blades: 9) |
| Comp. Wheel | 53041232024 (K03-40) |
| Back plate | 53041515716 |
| Heat shield Number | 53031652000 |
| Repair Kit | 53037110001 |
| Turbine Housing | 53031009081/53031009113 |
| Compressor Cover | 53041015215 |
| Turbine Housing AR | 6 |
| Actuator | 58201104176 |
| Replaced By | 49377-07050, 49377-07052 |
| NOTE | Replacement for K03-0054; complete replacement turbo only |
Applications
2001- Citroen Jumper 2.8 HDI Engine 8140.43.2200 Euro 3
2001-2006 Fiat Ducato II 2.8 JTD Engine 8140.43S
2001- Peugeot Boxer II 2.8 HDI Engine SOFIM 2800 HDI
