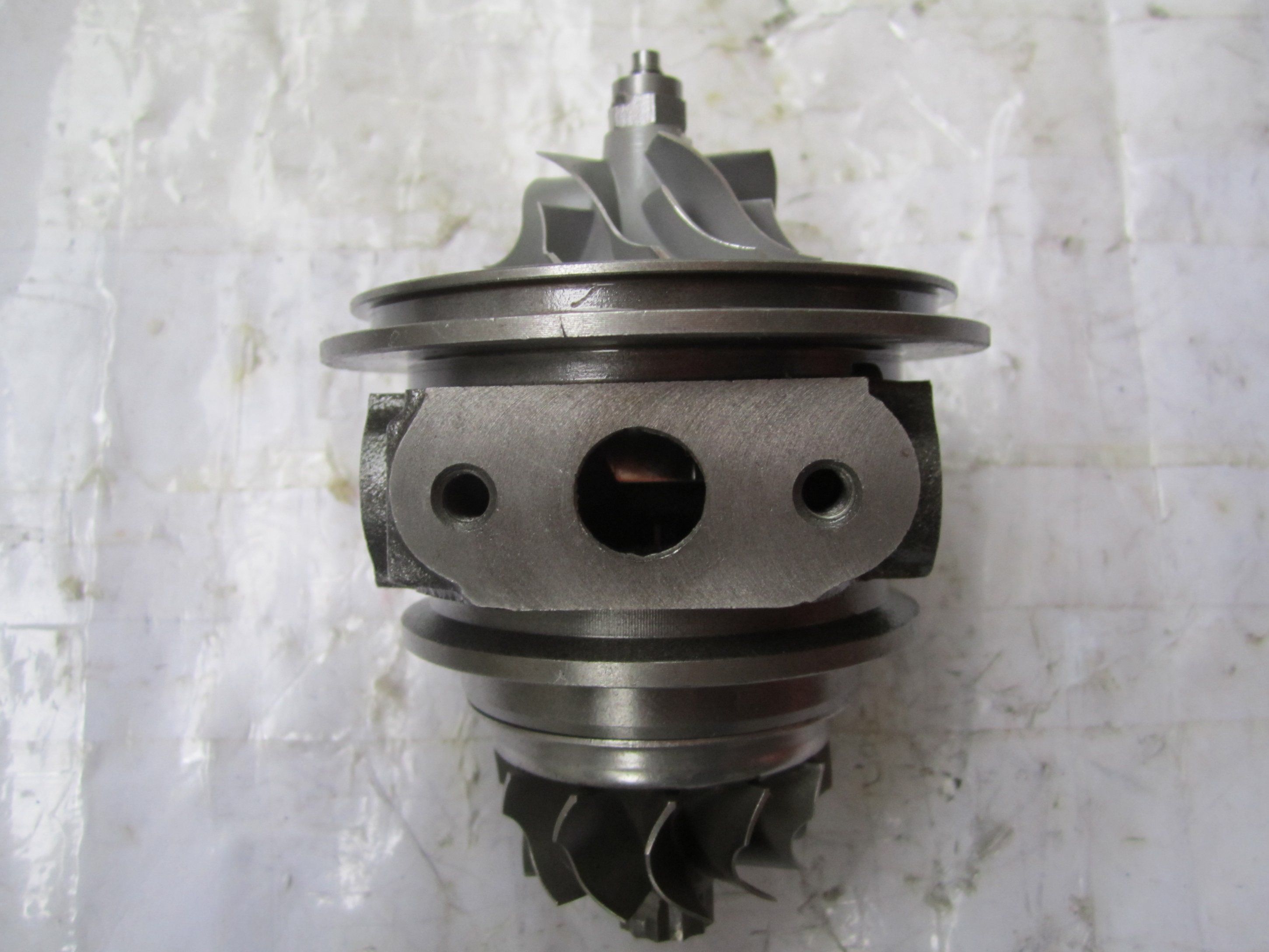

Td04, Tdo4-10t/4 49177-01503 Turbocharger Cartridge for Wcld 4D56, 4D56 2.5

Prod Model:	TD04, TDO4-10T/4
Fuel:	Diesel
Chra:	49177-08240
Turbo OE Number:	MD194843, Mr355223
Displacement:	2.5L 2500 CCM, 4 Cylinders
Kw:	87/99 HP
Type:	ETS Exhaust-Gas-Turbo-Super-Charger
Body Material:	Iron
Certification:	ISO9001
Brand:	Refone
Application:	Pajero

Product Description

Δ TD04, TDO4-10T/4 49177-01503 turbocharger cartridge for     WCLD 4D56, 4D56 2.5


Part Number	49177-01503
Previous versions	4917701503, 49177-01504, 49177-01505
OE number	MD194843, MR355223
Year	1993-96
Description	Pajero, L200, L300, Pajero II 2.5 TD
CHRA	49177-08240
Turbo Model	TD04, TDO4-10T/4
Engine	WCLD 4D56, 4D56 2.5
Displacement	2.5L 2500 ccm, 4 Cylinders
Power	87/99 HP
Fuel	Diesel
Bearing Housing	49377-25420/49177-20540
Turbine Wheel	49177-30300/49177-30120 (1401404438, 1401404435, 1401404439)
Comp. Wheel	49177-44200 (Ind. 35,50 mm, Exd. 49,00 mm, Trm 42, 6+6)
Back plate	49173-22500 (1401404300) (10.00 mm bore)
Heat shield Number	49170-19100 (1401404340)
Repair Kit	49177-80410 (1401404755)
Turbine Housing	49377-15200
Compressor Cover	49377-55760
Turbine Housing AR	4.0
Gasket (turbine inlet)	210501
Gasket (turbine outlet)	210502
Gasket (oil outlet)	210243
Replaced by	49177-01505

Applications
1993-96 Mitsubishi Pajero II 2.5 TD with WCLD 4D56 Engine

Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support
