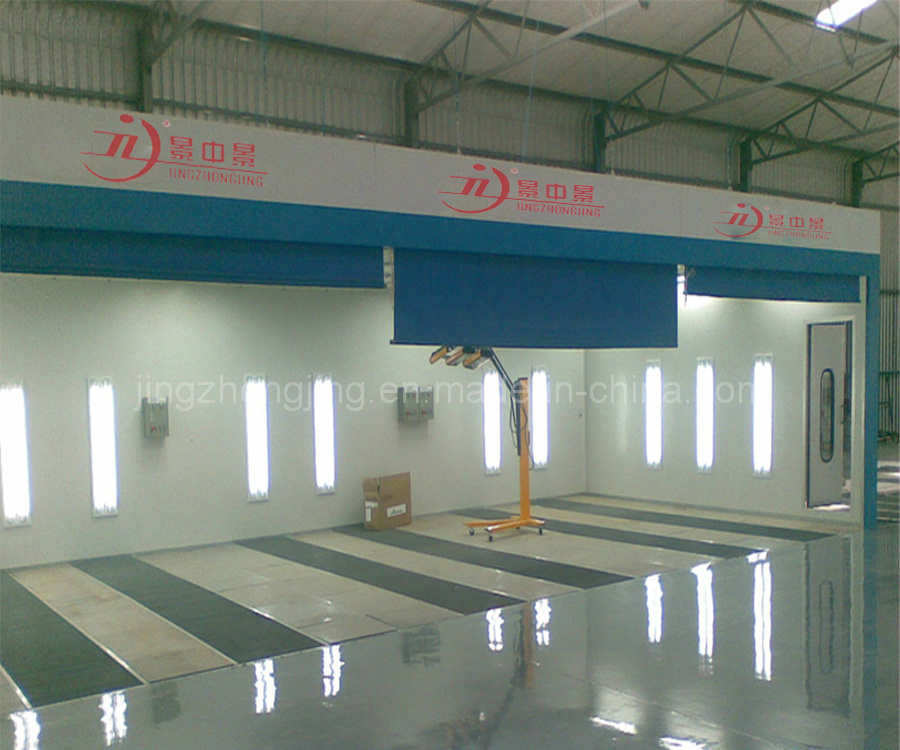

Jzj Linking Prep-Station Spray Booth for Automobiles (PS700A-III)

Name: Jzj Linking Prep-Station Spray Booth for Automobiles (PS700A-III)
Brand: ibuyautoparts.com
SKU: 726053905
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 5000-8000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS700A-III
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Filtration System:	Primary Filter;Ceiling Filter;Glass Fiber Filter
Control System:	Controls Fan, Electric Damper, Burner and Illumina
Installation Way:	Sling Hoist or Square Tube Support
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Jzj

Product Description

JZJ can supply customers the best quality Spray booth, prep-station, paint mixing room etc.
2. Economic type.
3. High quality.

Outside dimension:	L7550W3550H3150mm
Inside dimension:	L6300W3450H2700mm
Plenum dimension:	L6400W3550H450mm
Basement:	without basement and floor
Illumination system:	ceiling light:36W48units=32pcs;power:1.15KW
Glass:	tempered glass
Air inlet system:	5.5kw one set inner motor centrifugal fan with air volume 15400m3/h
Air outlet system:	4kw one set inner motor centrifugal fan with air volume 14000m3/h
Cabin system:	1. air intake plenum is made of cold-rolled sheets
	2. ceiling boards are made of galvanized steel sheets
	3. PVC manual curtains around the sides and slipping on the aluminum alloy rails
	4. 50mm EPS panels at the back wall
Generator system:	rear exhaust;square tube frame;power coated
Heat system:	one set Riello G10 burner with max heat capacity:100000kcal/h
Heat system:	one set stainless steel heat exchanger
Filtration system:	primary filter;ceiling filter;glass fiber filter
Control system:	controls fan, electric damper, burner and illumination only
Installation way:	sling hoist or square tube support
Total power:	11.5K

Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
