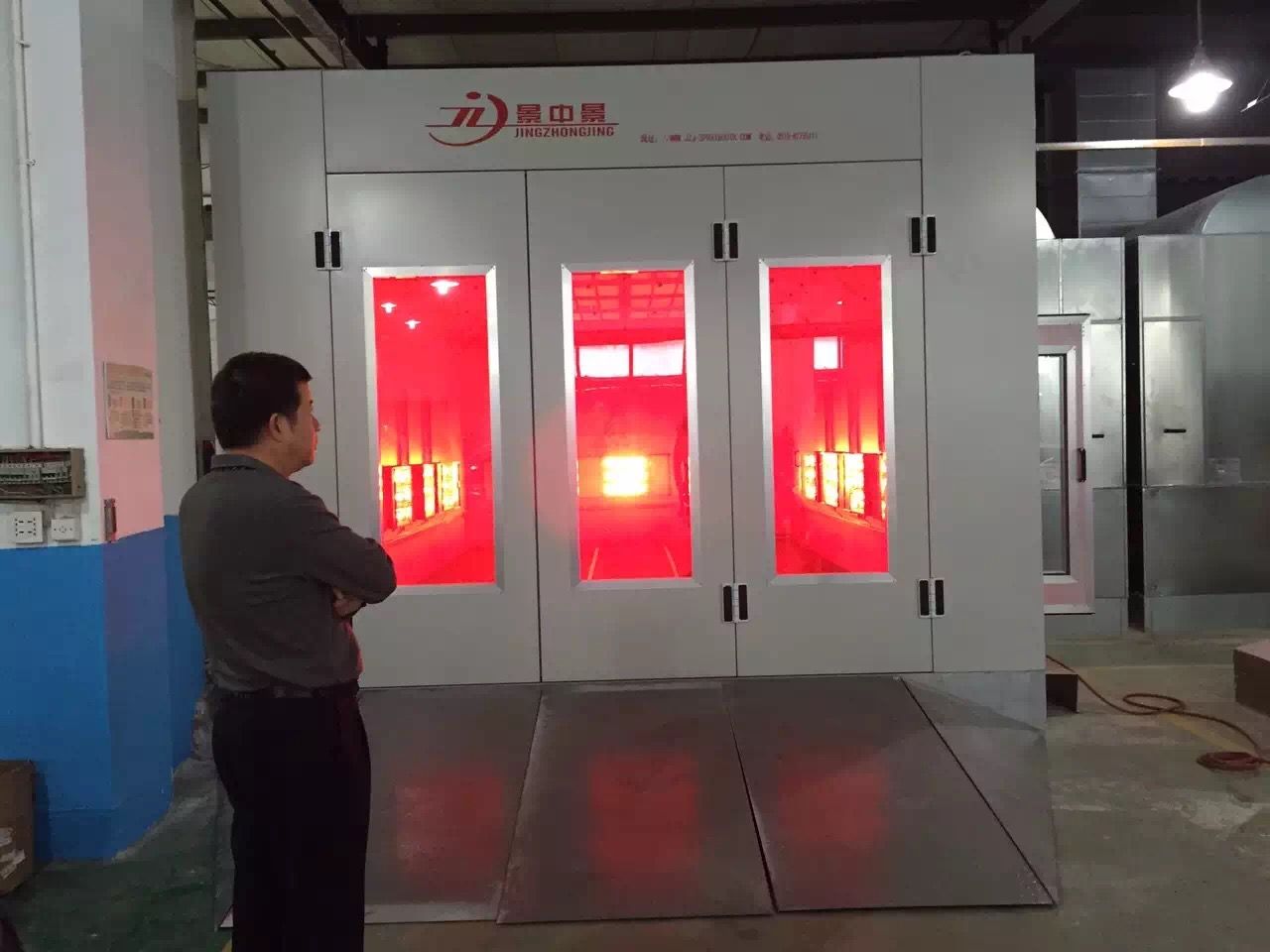

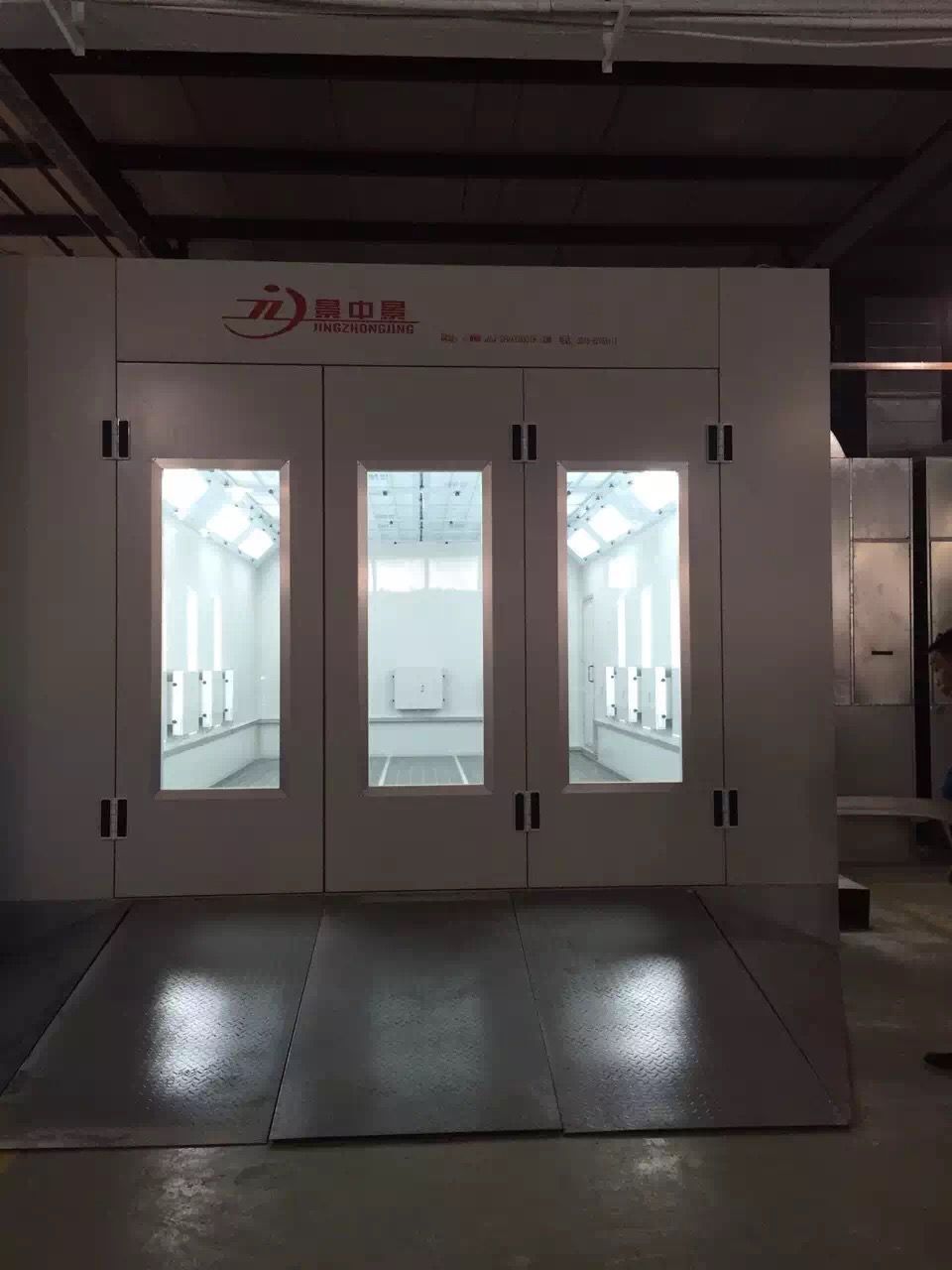

Environmental Automotive IR Heated Spray Booth for Sale

Name: Environmental Automotive IR Heated Spray Booth for Sale
Brand: ibuyautoparts.com
SKU: 776724235
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 7300/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZJ-9400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inside Dimension:	690040002650
Heating Way:	Infrared Heating System
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Electric
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Jzj

Product Description

We are the most professional spray booth manufacturer in China, please feel free to contact us.
For car painting and baking, maintains a high level of safety and performance together with top quality construction and material
JZJ is a high-performance double wall, insulated down draft spray booth designed for automotive refinish body shops that demand high quality of the paint process, minimum running costs, reliability.
Spray booth manufacturer.

Outside Dimension (mm)	700653503450(LWH)	Inside Dimension(mm)	690040002650(LWH)
Front Door(mm)	30002600(WH)	Service door (mm)	1800650(WH)
Total Power	34.5KW
Cabin system	Wall panel	50mm EPS sandwich panel, steel sheet thickness: 0.426mm
	Ceiling panel	0.8mm Galvanized steel sheet.

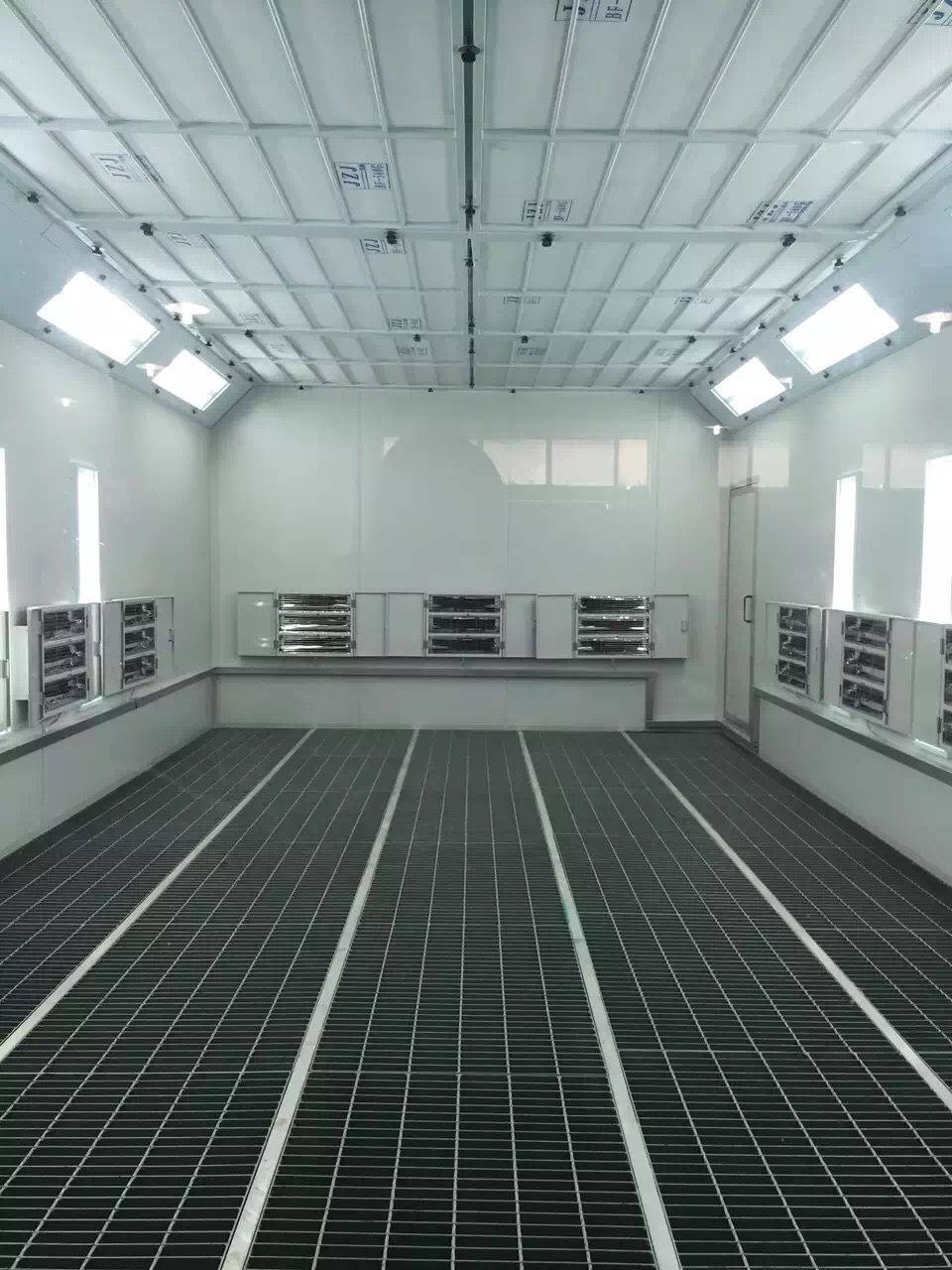

	Basement	300mm depth, two rows grids and three rows checkered plates.
	Ramps	Two pieces 2000*600mm ramps
	Glass	4mm safety tempered glass
	Windows	Rubber glass window
Air Make-up System	Air Inlet fan system	2*4KW centrifugal fan
	Exhausted fan system	1*5.5KW centrifugal fan
	Ai capacity	24000m³/h
	Air Flowing speed	0.25m/s in empty booth
	Exhausted ducting	4meters straight ducting, one 90°elbow and one 30°elbow.
Purification System	Pre-filter	G3 grade
	Ceiling filter	EU5 / F5
	Floor filter	green fiber glass filter / G3 grade
	Exhausted fan Filters	green fiber glass filter and active carbon
Heating System	Infrared heating lamps	11Units. Each 3 * 1000W Infrared quartz tubes. Total: 33KW
	Max heating temperature	80ºC
Lighting System	Ceiling lights	8 Units, each 4 * 36W Philips lamps. Total 1152 W
	Side lights	For option
	Illumination	900LUX
Controlling system	Switched control panel	Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
